DAP-1360U Wireless N300 Access Point & Router
User Manual
Configuring via Web-based Interface
Conguring LAN Ports for IPTV/VoIP
This configuration step is available for the Router and WISP Repeater modes.
1. On the IPTV page, select the Is an STB connected to the device checkbox.

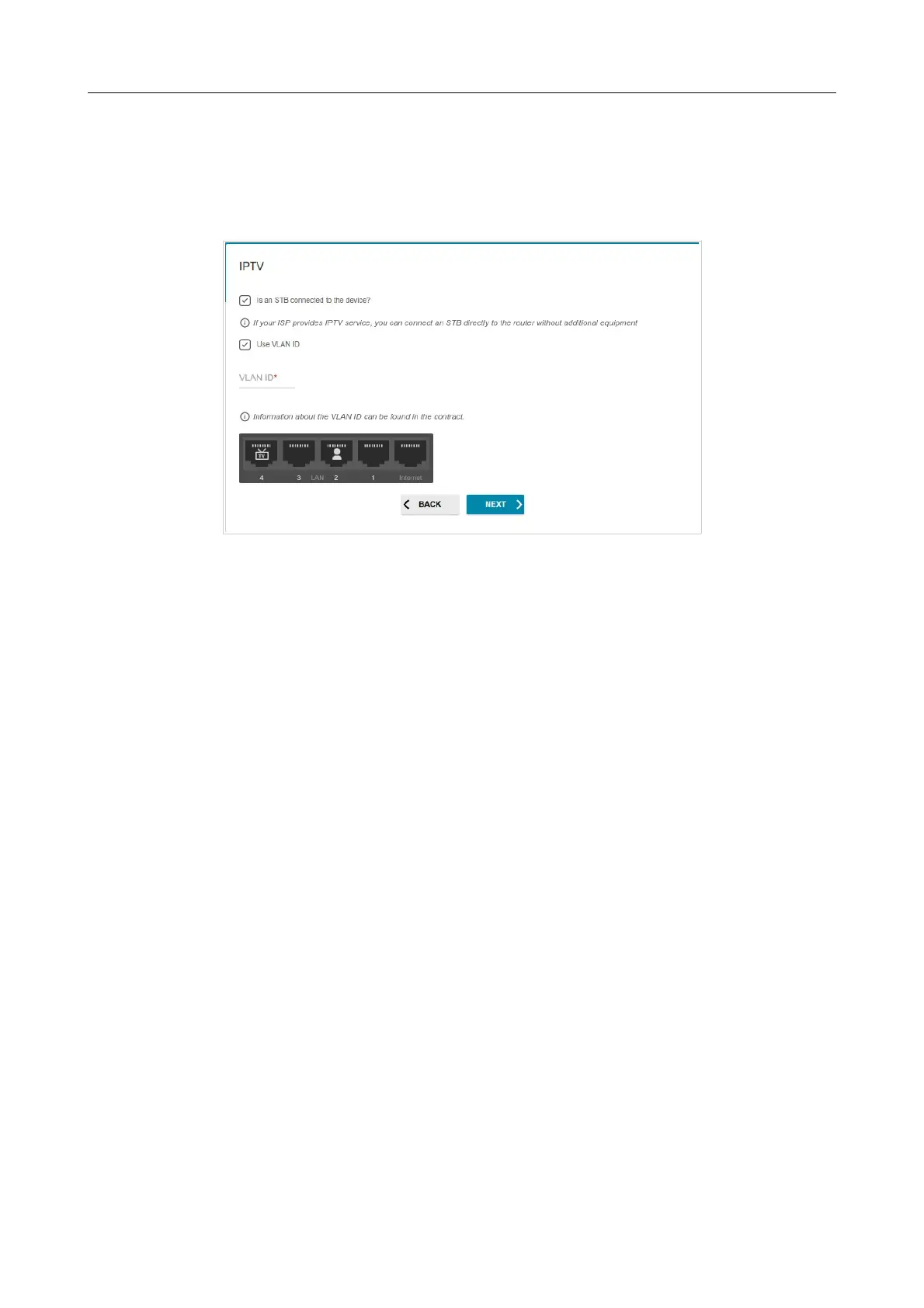

Figure 39. The page for selecting a LAN port to connect an IPTV set-top box.
2. Select a free LAN port for connecting your set-top box.
3. If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox
and fill in the VLAN ID field.
4. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 47 of 158
