DAP-1360U Wireless N300 Access Point & Router
User Manual
Configuring via Web-based Interface
5. On the VoIP page, select the Is an IP phone connected to the device checkbox.

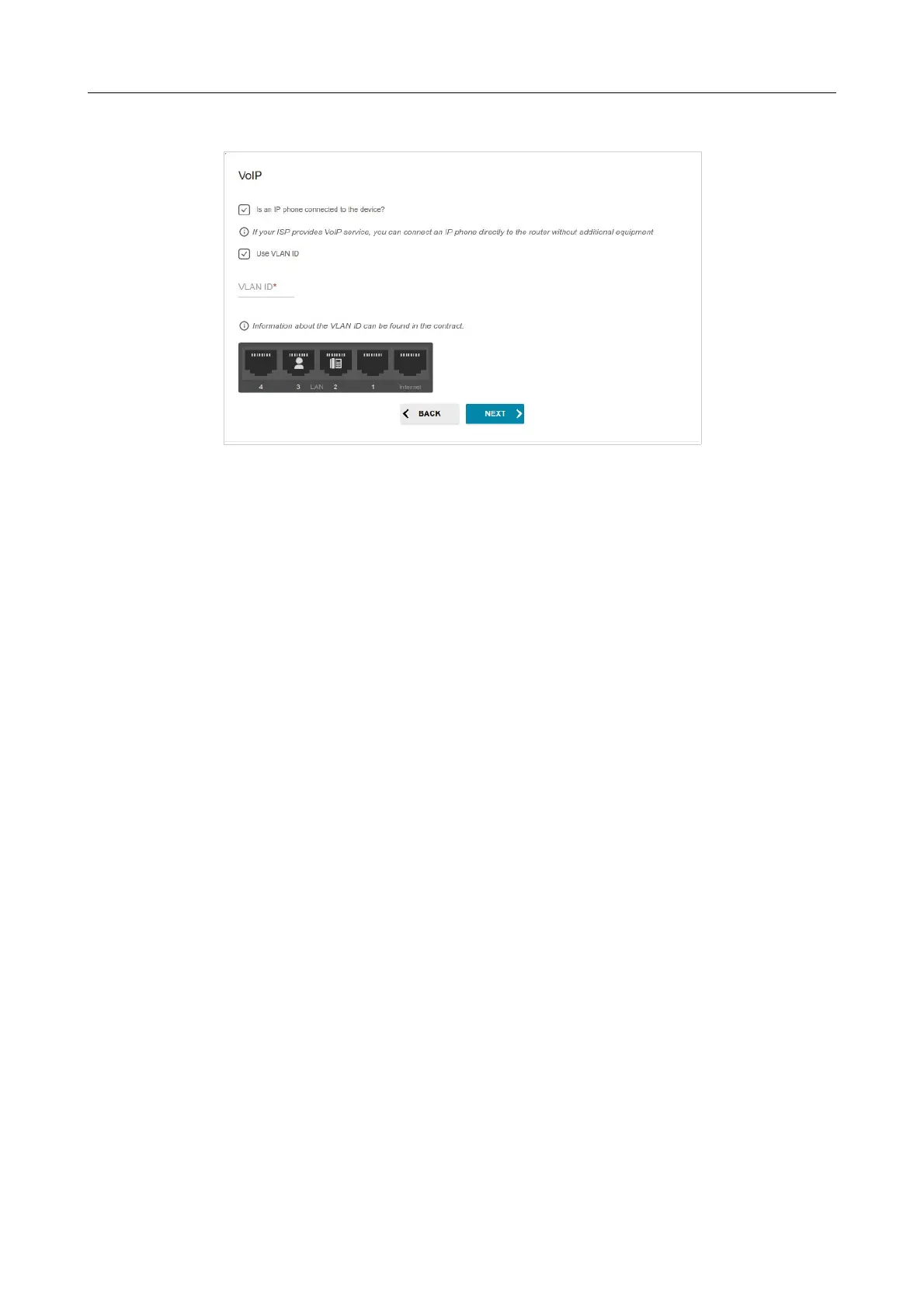

Figure 40. The page for selecting a LAN port to connect an VoIP phone.
6. Select a free LAN port for connecting your IP phone.
7. If the VoIP service is provided via a VLAN channel, select the Use VLAN ID checkbox and
fill in the VLAN ID field.
8. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 48 of 158
