Section 2 - Installation
Manual Installation
If you prefer to set up your camera without using the Camera Setup Wizard, follow the steps below.
Note: In order to use the mydlink features of this product, you should use either the Camera Setup Wizard or Zero Conguration Setup.
To learn more about mydlink, refer to “What is mydlink?” on page 24.
Connect the Power Cable and Ethernet Cable
Step 1

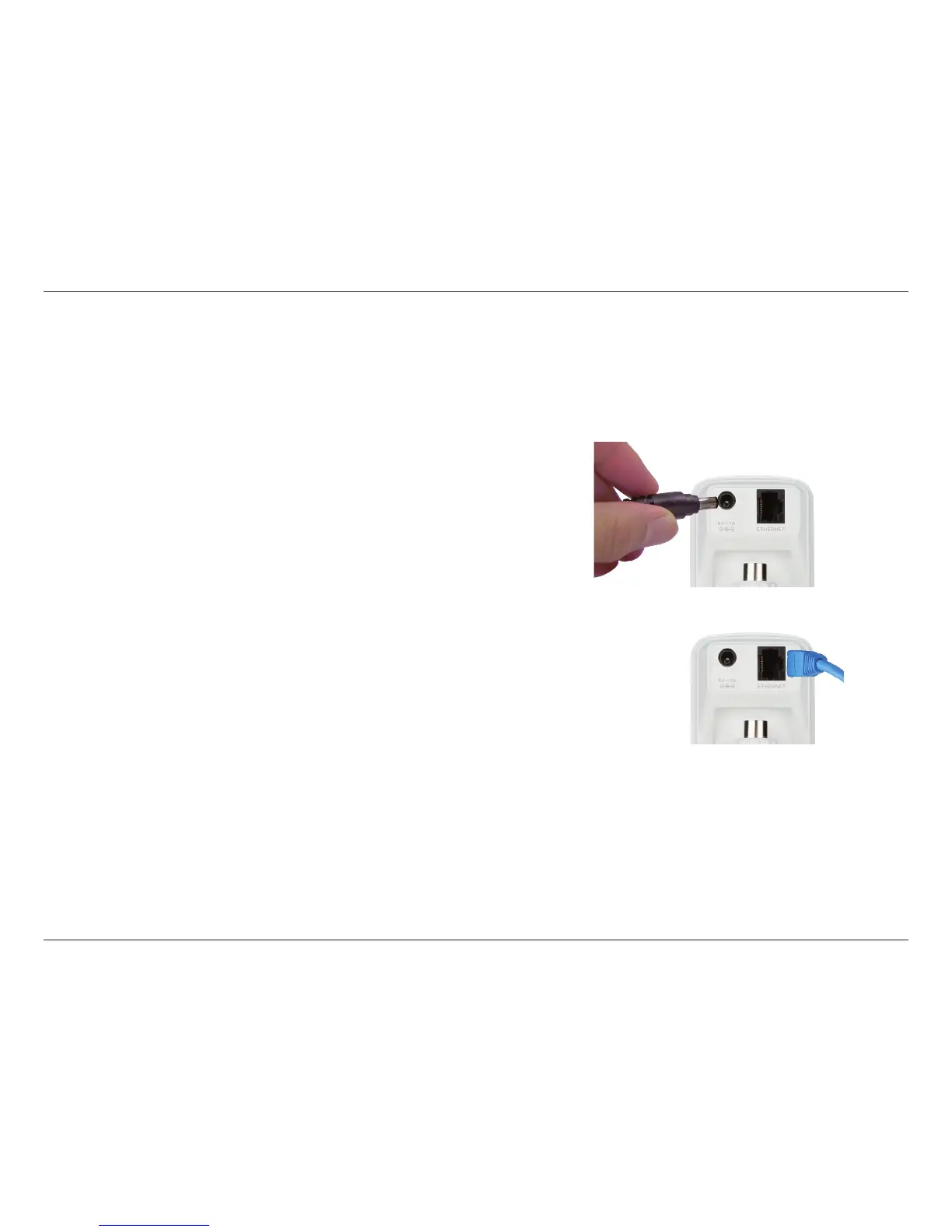

Attach the power supply to the power receptor located on the back of the DCS-930L and
connect it to a wall outlet or power strip. Power is conrmed when the Power LED is lit.
Congure Your Camera
Step 3
Refer to “Conguration” on page 25 for instructions on how to congure your camera.
Step 2
If using an Ethernet connection, connect the included Ethernet cable to the Ethernet port
on the back of the camera. Plug the other end into an available port on your router.
If your router supports Wi-Fi Protected Setup, you can initiate a wireless connection with
your router using WPS. Refer to “WPS - Push Button Setup” on page 21.

D-Link DCS-930L Specifications

General

Maximum resolution	640 x 480 pixels
White balance	Auto
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Security algorithms	WEP, WPA, WPA2
Video motion detection	Yes
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DONS, SMTP, FTP, HTTP, PPPoE, UPnP, LLTD
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	-
Power consumption (typical)	2 W
Ethernet LAN (RJ-45) ports	1
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Dimensions (WxDxH)	27.2 x 60 x 96 mm
Compatible operating systems	Windows XP / Vista / 7
Flash memory	4 MB
Internal memory	32 MB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Form factor	Cube

Weight and Dimensions

Weight	76.9 g
