DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch

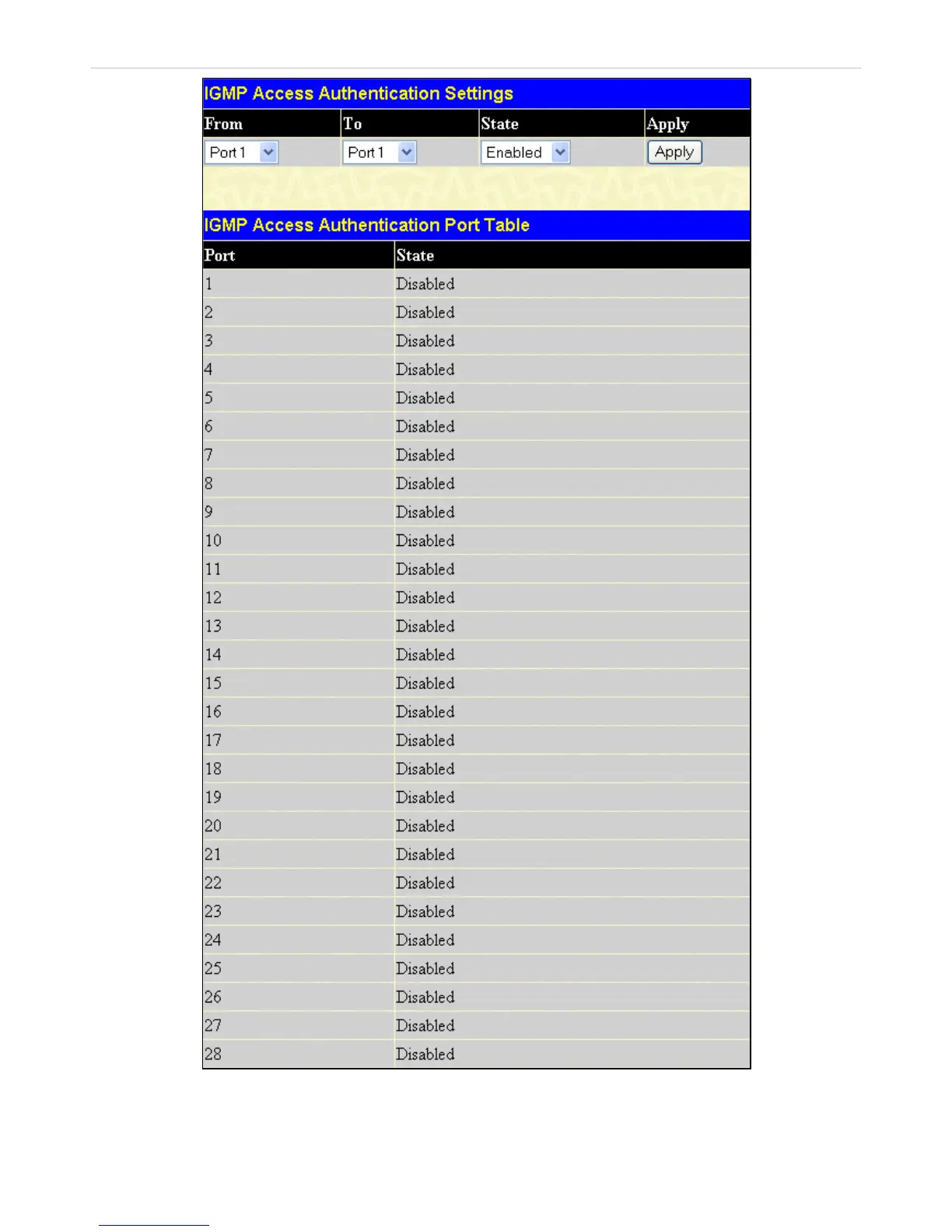

Figure 7- 19. IGMP Access Control window

Select the range of ports you wish to Enable or Disable and click Apply to implement changes made.

106
