DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Transmitted (TX)
The following graph displays the packets transmitted from the Switch. To select a port to view these statistics for, use the Port
pull-down menu. The user may also use the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
To view this window click Monitoring > Packets > Transmitted (TX).

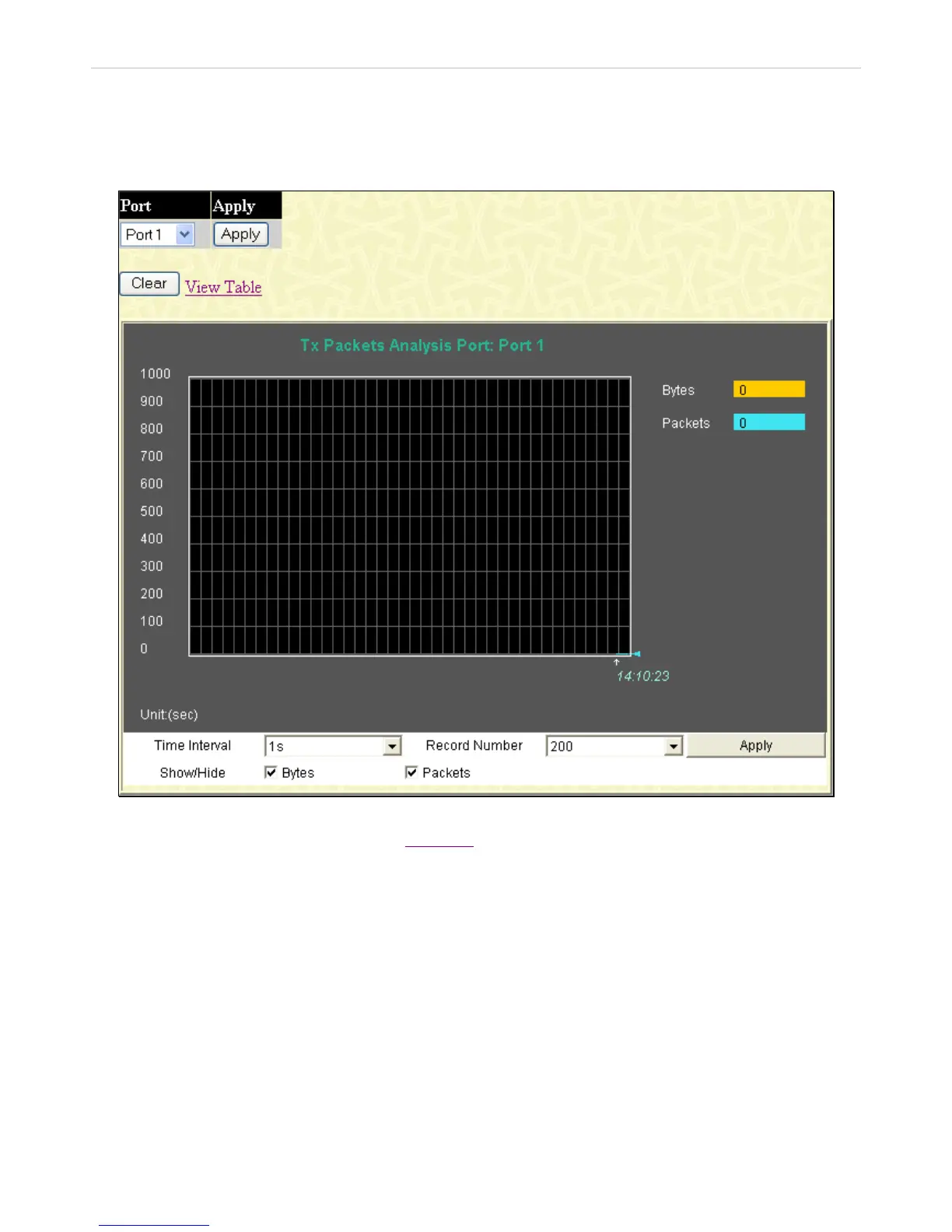

Figure 11- 7. Tx Packets Analysis window (line graph for Bytes and Packets)
To view the Transmitted (TX) Table, click the link View Table
, which will show the following table:
239
