DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Acc
ess
This field is set to Permit by default.
Max Multicast Group Settings
The Max Multicast Group Settings enables the user to configure the ports on the switch that will be apart of the maximum filter
group up to a maximum of 256. To configure these settings click L2 Features > IGMP Snooping > Max Multicast Group
Settings.

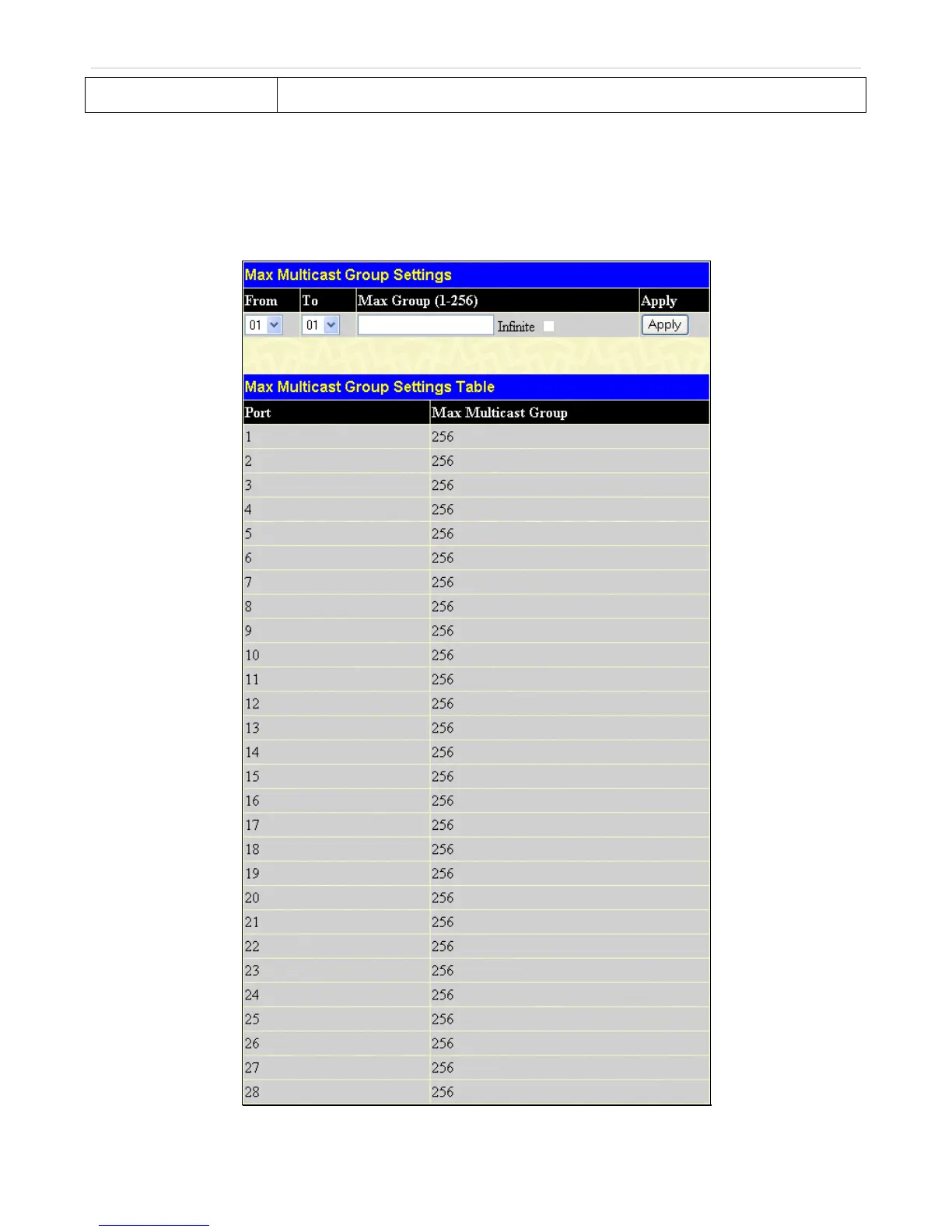

Figure 7- 29. Max Multicast Group Settings window
To add a Maximum Multicast Group range, enter the information and click Apply.
113
