DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Received (RX)
The following graph displays packets received by the Switch. To select a port to view these statistics for, use the Port pull-down
menu. The user may also use the real-time graphic of the Switch at the top of the web page by simply clicking on a port. To view
this window click Monitoring > Packets > Received (RX).

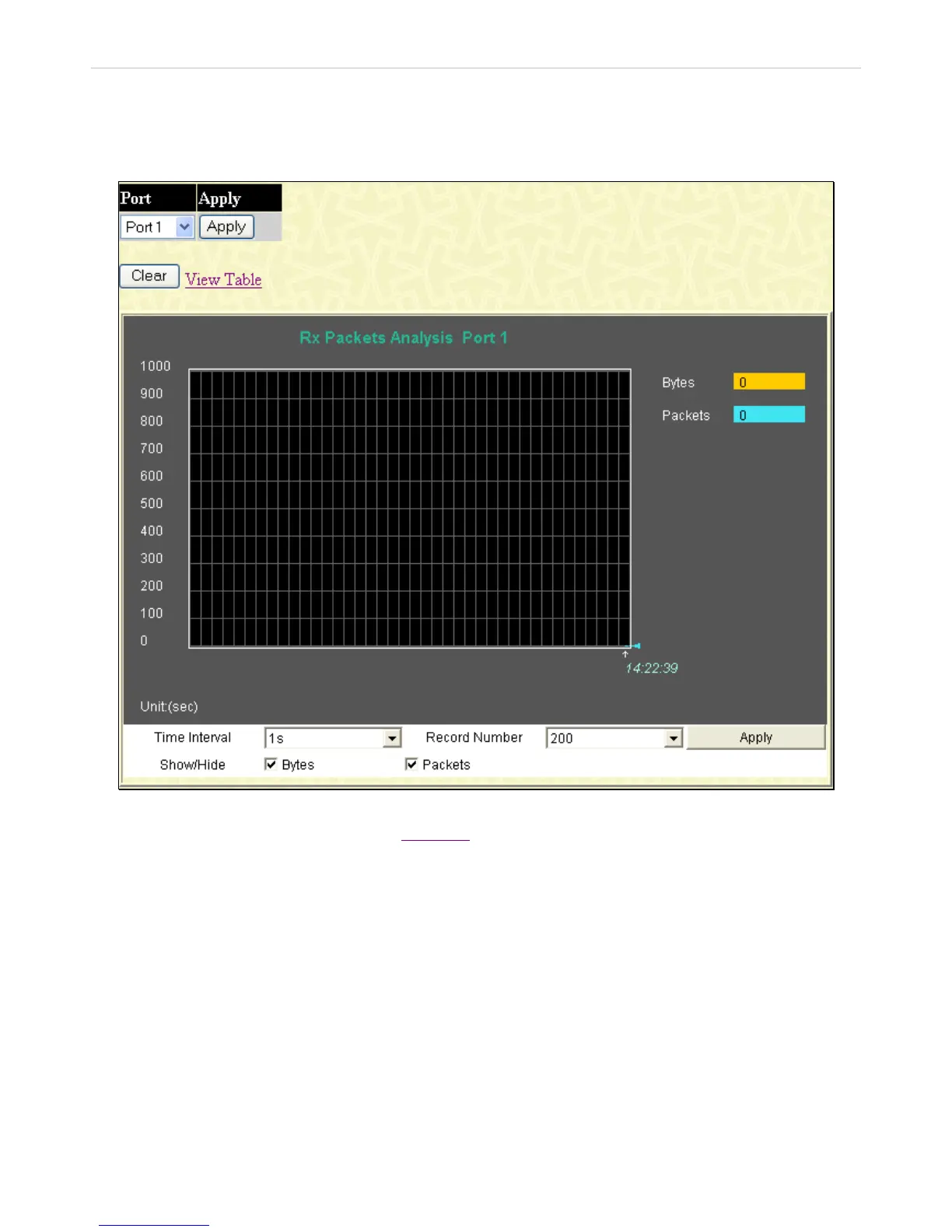

Figure 11- 3. Rx Packets Analysis window (line graph for Bytes and Packets)
To view the Received Packets Table, click the link View Table
, which will show the following table:
235
