DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as either a line
graph or a table. Two windows are offered. To select a port to view these statistics for, select the port by using the Port pull-down
menu. The user may also use the real-time graphic of the Switch at the top of the web page by simply clicking on a port. To view
this window click Monitoring > Packet Size.

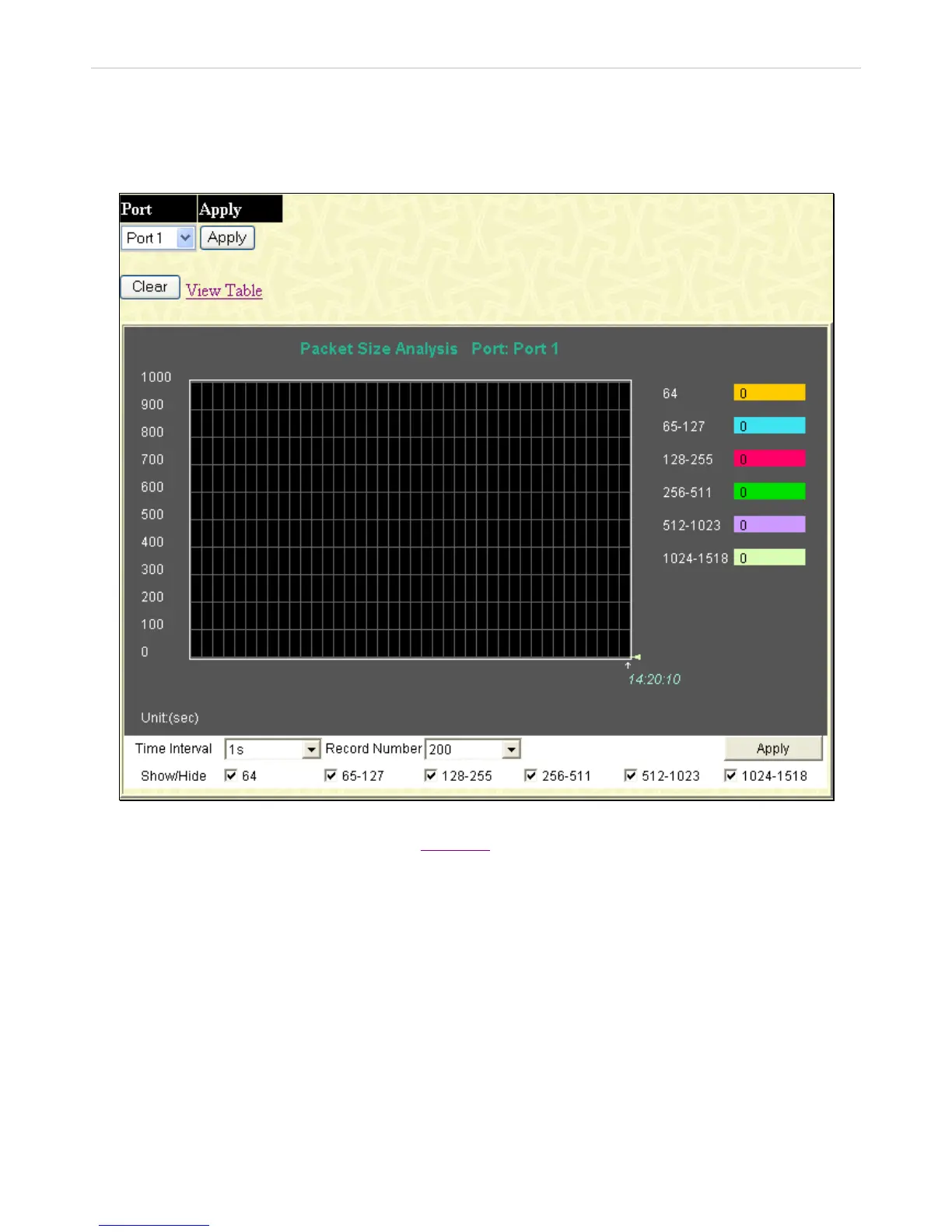

Figure 11- 13. Rx Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table
, which will show the following table:
245
To Next Page
