Figure 7- 2
4. IGMP Snooping Multicast VLAN Group List Settings window
Enter a Multicast Group List for a particular entry and click Add the new IGMP Snooping Multicast VLAN Group List entry
will be displayed on the IGMP Snooping Multicast VLAN Group List table on the lower half of the window. To remove an
entry click its corresponding Delete button in the IGMP Snooping Multicast VLAN Group List table, to remove all entries click
Remove All.
IP Multicast Filter Profile Settings
The IP Multicast Filter Profile Settings window allows the user to add a profile to which multicast address(es) reports are to be
received on specified ports on the Switch. This function will therefore limit the number of reports received and the number of
multicast groups configured on the Switch. The user may set an IP Multicast address or range of IP Multicast addresses to accept
reports (Permit) that come into the specified switch ports. To configure the IP Multicast Filter Profile settings, click L2 Features
> IGMP Snooping > IP Multicast Filter Profile Settings:

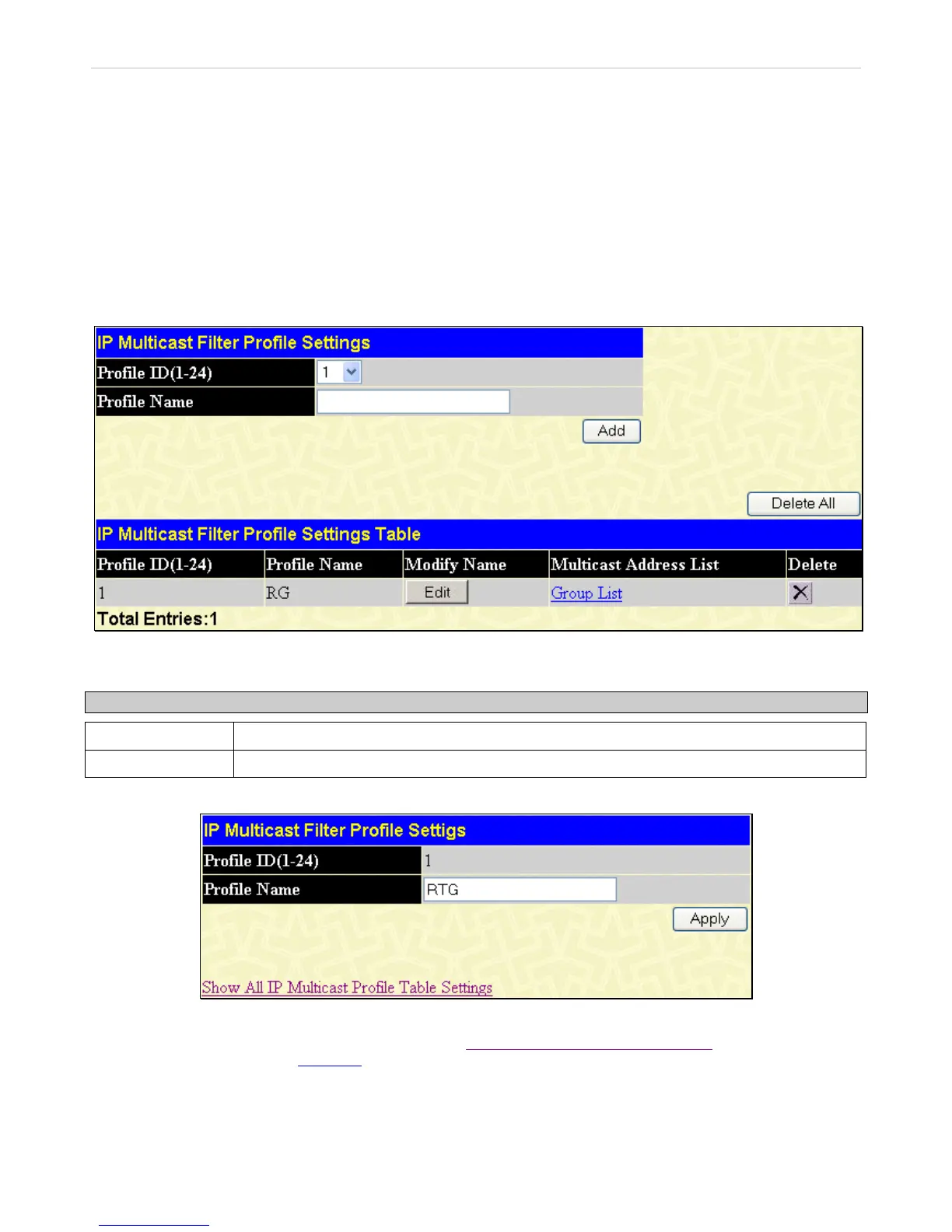

Figure 7- 25. IP Multicast Profile Settings window
The following fields can be set:
Parameter Description
Profile ID
Use the drop-down menu to choose a Profile ID.
Profile Name
Enter a name for the IP Multicast Profile.
To edit and entry click the corresponding Edit button and to delete an entry click the corresponding Delete button.
Figure 7- 26. IP Multicast Profile Settings – Edit window
To view the IP Multicast Profile Settings click the hyperlinked Show All Multicast Profile Table Settings
. To configure the Group
List Settings click the hyperlinked Group List
.
