DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Th
e LoopBack Detection feature can only prevent BPDU loops on designated ports. It can detect a loop condition occurring on
the user’s side connected to the edge port, but it cannot detect the LoopBack condition on the elected root port of STP on another
switch
STP Bridge Global Settings
To view the STP Bridge Global Settings window, click L2 features > Spanning Tree > STP Bridge Global Settings.

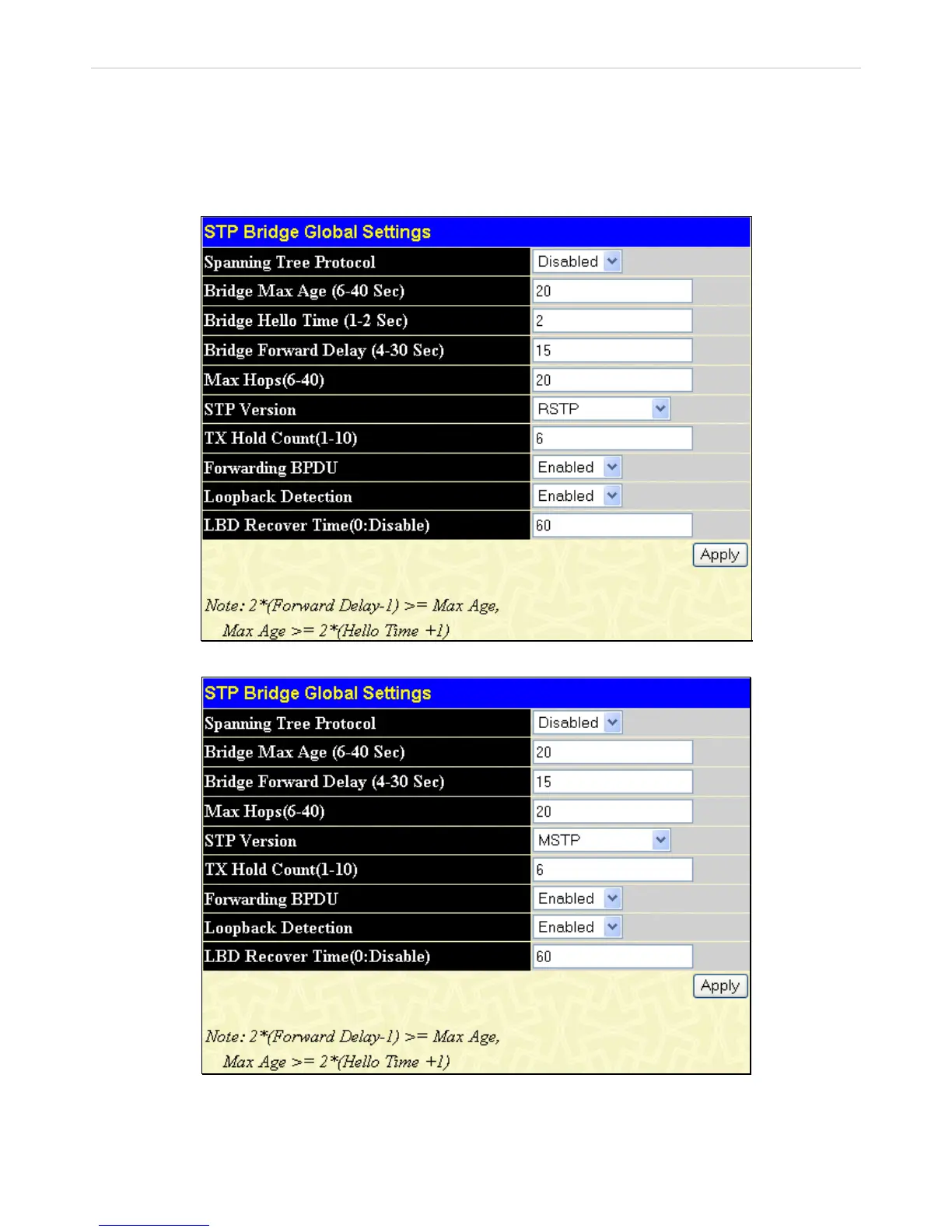

Figure 7- 34. STP Bridge Global Settings window – RSTP
Figure 7- 35. STP Bridge Global Settings window – MSTP
120
