DES-3028 DES-3028P DES-3028G DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Click
Apply to implement changes made.
To establish the rule for a previously created CPU Access Profile:
Click ACL > CPU Interface Filtering > CPU Interface Filtering Profile Table.

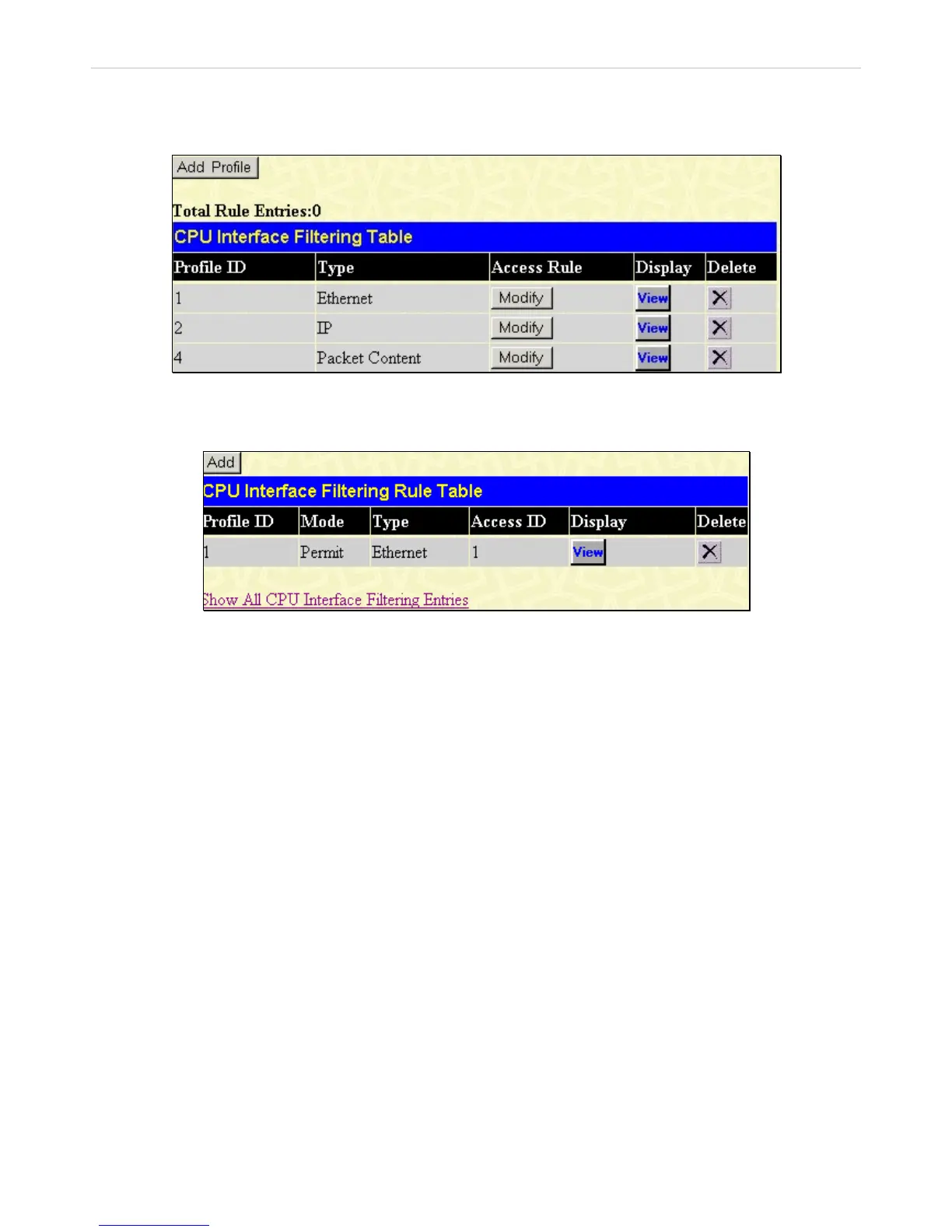

Figure 9- 20. CPU Interface Filtering Profile Table window - Add
In this window, the user may add a rule to a previously created CPU access profile by clicking the corresponding Modify button
of the entry to configure Ethernet, IP or Packet Content Mask.
Figure 9- 21. CPU Interface Filtering Rule Table window
Click the Add button to continue on to the CPU Interface Filtering Rule Table window. A new and unique window, for
Ethernet, IP and Packet Content will open as shown in the examples below.
To change a rule for a previously created CPU Access Profile Rule:
The CPU Interface Filtering Rule Configuration window allows the user to create a rule for a previously created CPU Access
Profile.
174
