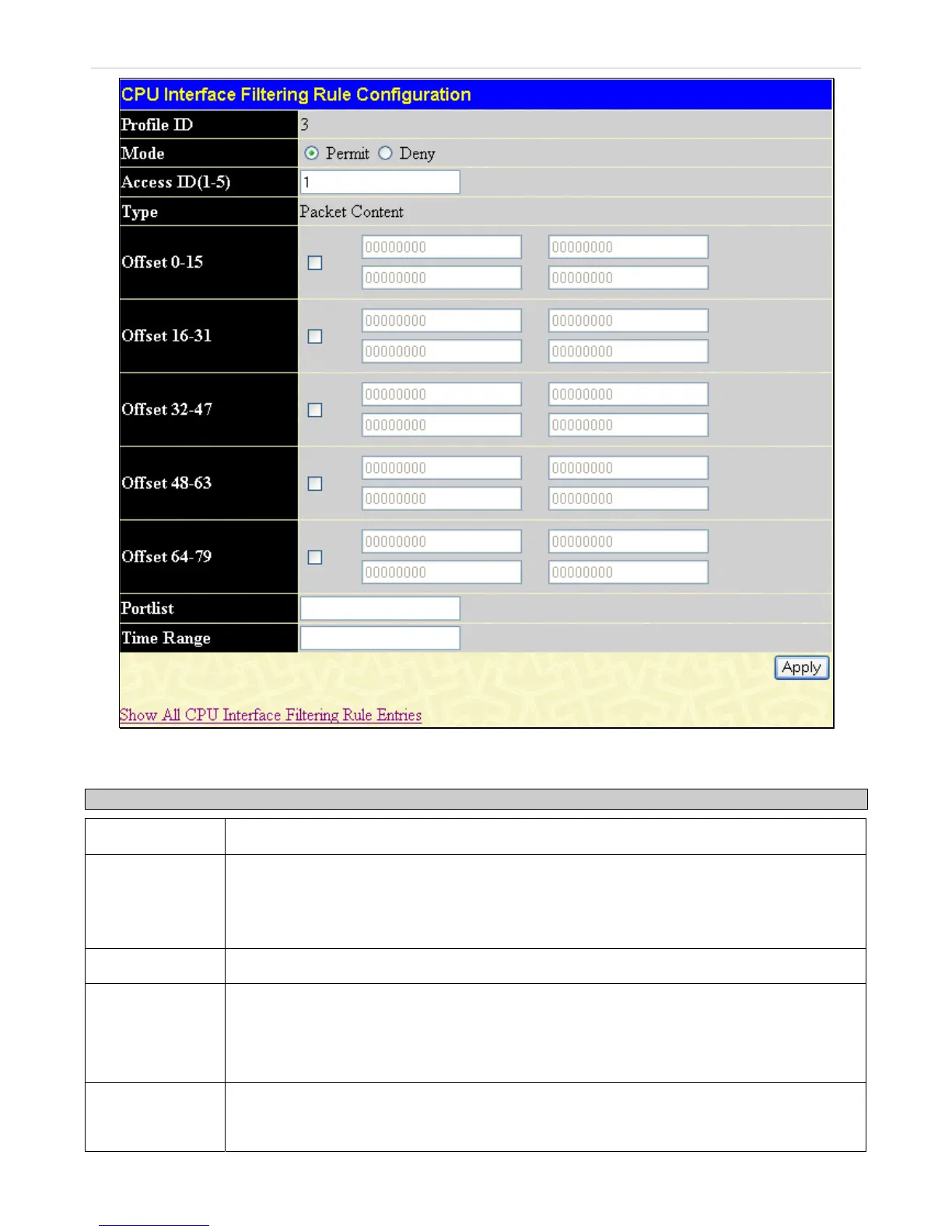

Figure 9- 28. CPU Interface Filtering Rule Configuration window - Packet Content Mask
To set the Access Rule for Ethernet, adjust the following parameters and click Apply.
Parameters Description
Profile ID
This is the identifier number for this profile set.
Mode
Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify that packets that do not match the access profile are not forwarded by
the Switch and will be filtered.
Access ID
Type in a unique identifier number for this access. This value can be set from 1 to 5.
Type
Selected profile based on Ethernet (MAC Address), IP address or Packet Content.
Ethernet instructs the Switch to examine the layer 2 part of each packet header.
IP instructs the Switch to examine the IP address in each frame's header.
Packet Content Mask instructs the Switch to examine the packet header.
Offset
This field will instruct the Switch to mask the packet header beginning with the offset value
specified:
value (0-15) - Enter a value in hex form to mask the packet from the beginning of
