UMB_cast (RX)
This table displays the UMB_cast RX Packets on the Switch. To select a port to view these statistics for, select the
port by using the Port pull-down menu. The user may also use the real-time graphic of the Switch at the top of the web
page by simply clicking on a port.
To view the following graph of UMB cast packets received on the Switch, click Monitoring > Packets > UMB_cast
(RX).

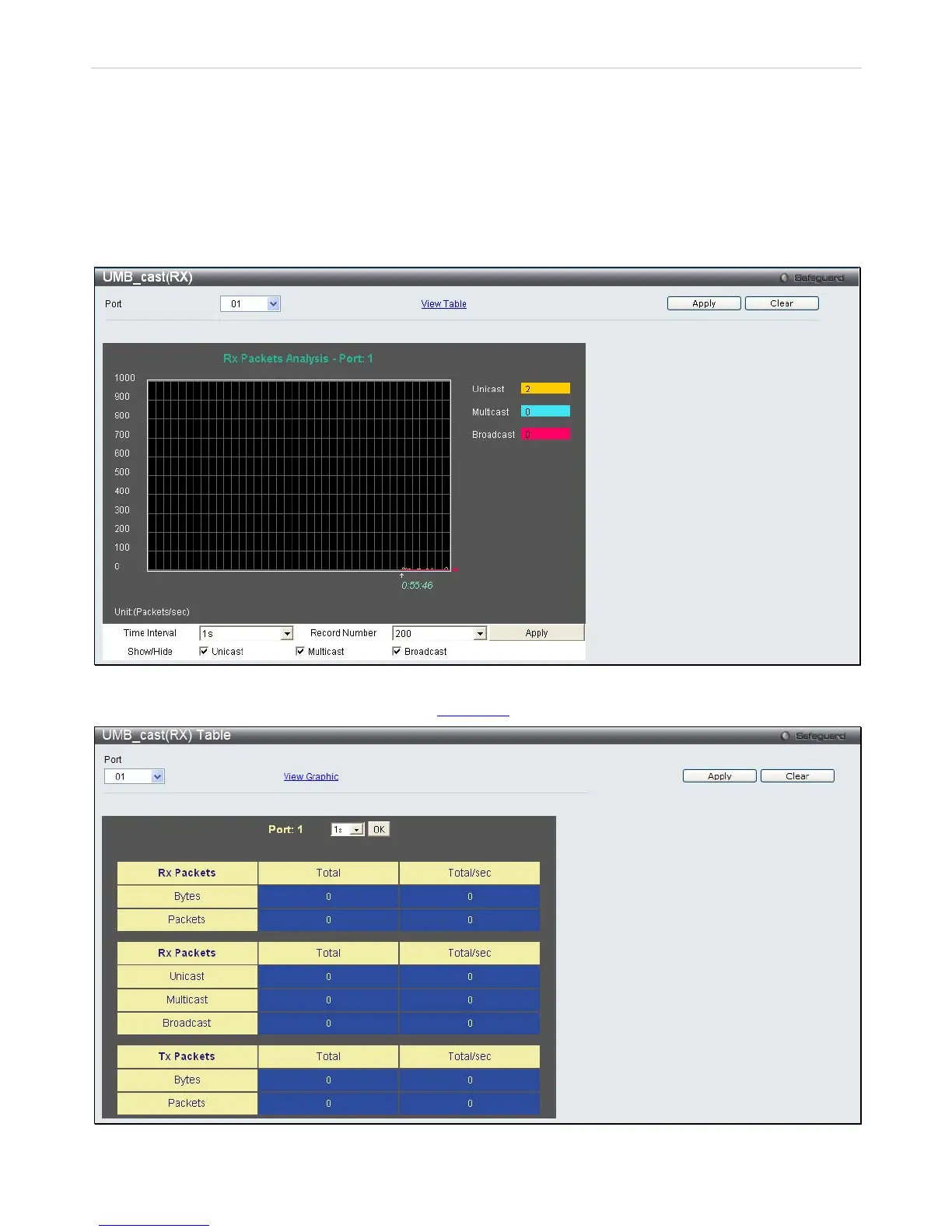

Figure 11- 8. UMB_cast (RX) window (for Unicast, Multicast, and Broadcast Packets)
To view the UMB_cast (RX) Table window, click the View Table
link.
Figure 11- 9. UMB_cast (RX) Table window (for Unicast, Multicast, and Broadcast Packets)
213
