xStack DES-3528 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
Download Firmware
The following window is used to download firmware for the Switch.

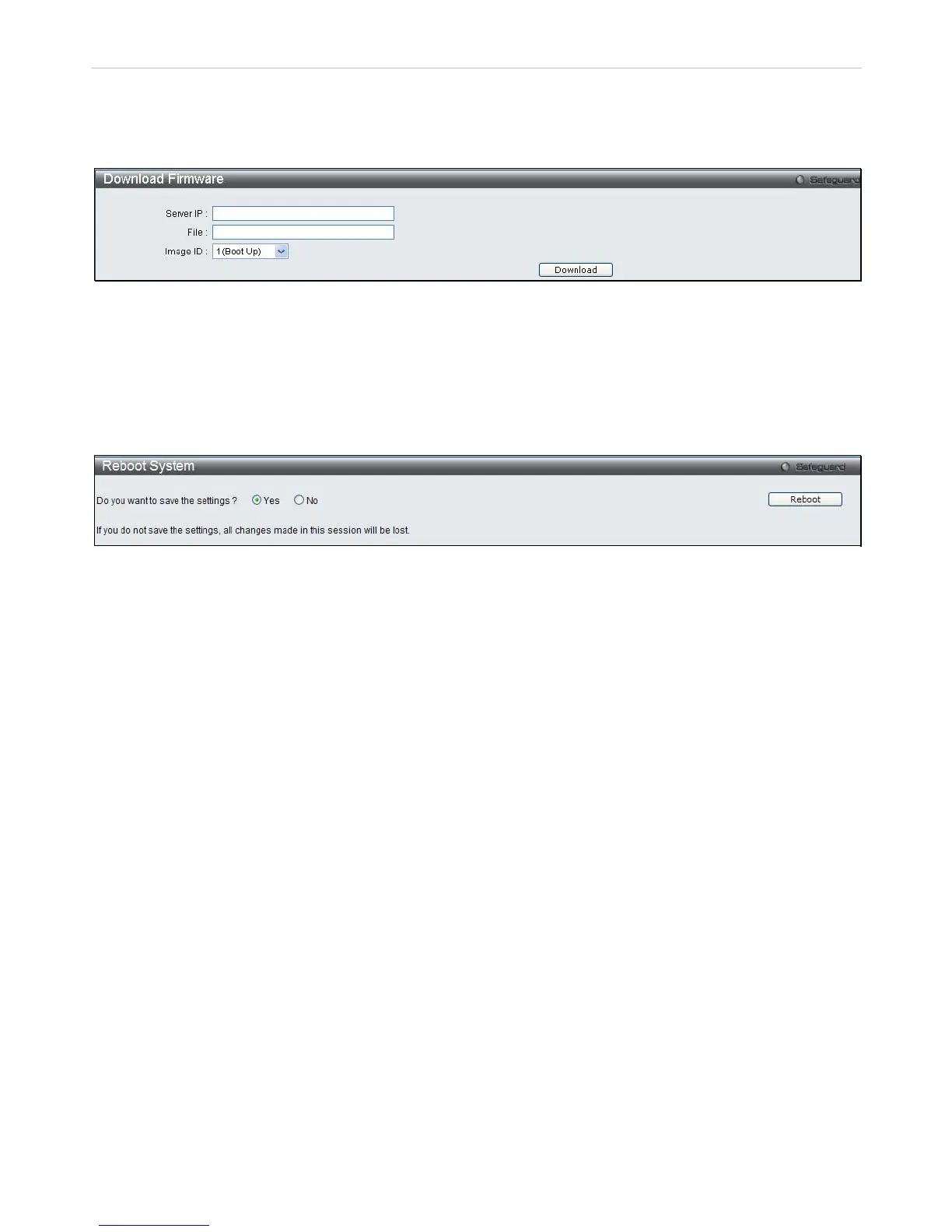

Figure 12- 8. Download Firmware window
Enter the Server IP address in the first field and and specify the path/file name of the firmware in the second field.
Click Download to initiate the file transfer.
Reboot System
The following window is used to restart the Switch.
Figure 12- 9. Reboot System window
Clicking the Yes radio button will instruct the Switch to save the current configuration to non-volatile RAM before
restarting the Switch.
Clicking the No radio button instructs the Switch not to save the current configuration before restarting the Switch. All
of the configuration information entered from the last time Save Changes was executed will be lost.
Click the Reboot button to restart the Switch.
238
