xStack DES-3528 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

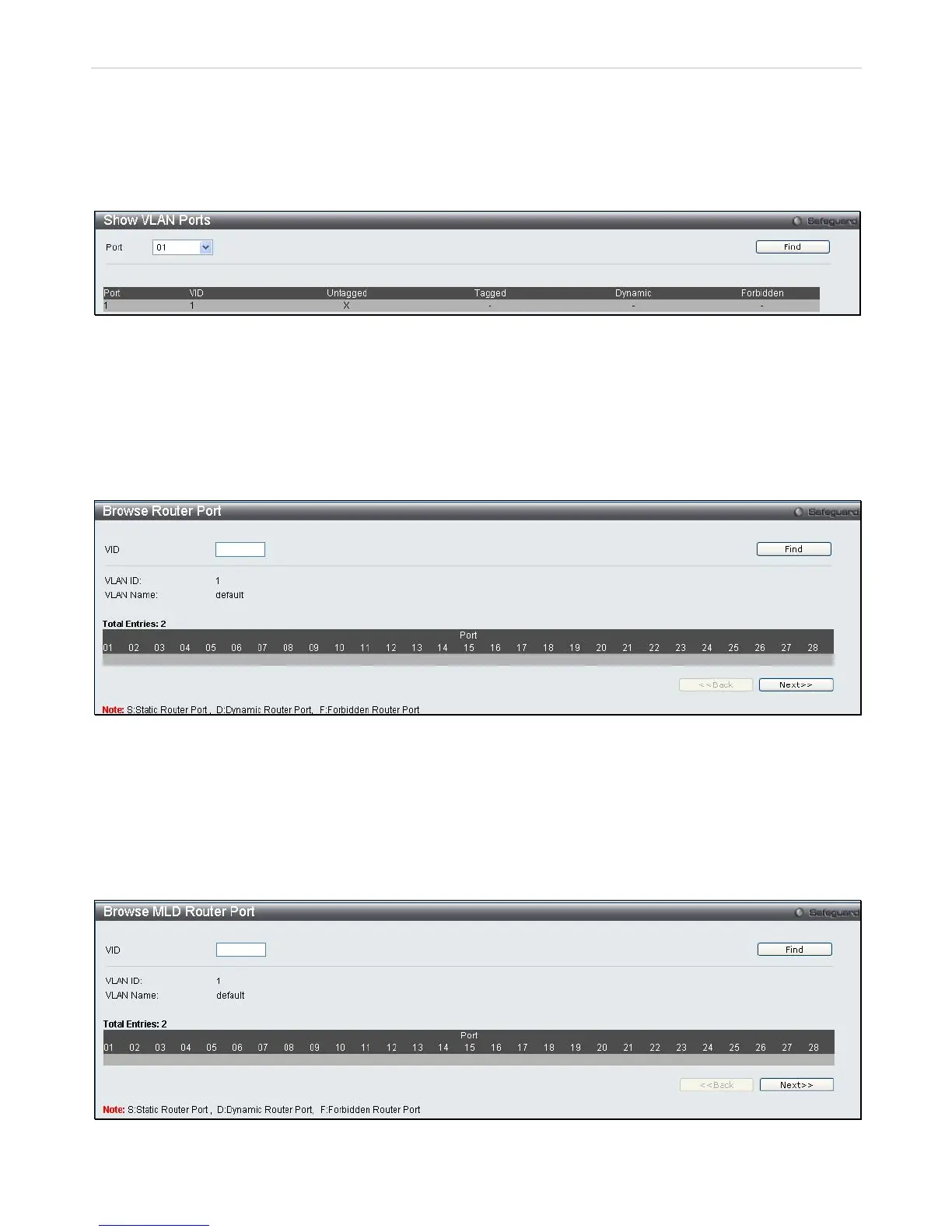

Show VLAN Ports
This window allows the VLAN status for each of the Switch's ports to be viewed by VLAN. Enter a VID (VLAN ID) in
the field at the top of the window and click the Find button.
To view the Browse VLAN click, Monitoring > Show VLAN Ports.
Figure 11- 2 . Browse VLAN window 5
To view the Browse Router Port window, click, Monitoring > Browse Router Port.
Browse Router Port
This window displays which of the Switch’s ports are currently configured as router ports. A router port configured by a
user (using the console or Web-based management interfaces) is displayed as a static router port, designated by S. A
router port that is dynamically configured by the Switch is designated by D, while a Forbidden port is designated by F.
Enter a VID (VLAN ID) in the field at the top of the window and click the Find button.
Figure 11- 2 . Browse Router Port window 6
Browse MLD Router Port
This window displays which of the Switch’s ports are currently configured as router ports in IPv6. A router port
configured by a user (using the console or Web-based management interfaces) is displayed as a static router port,
designated by S. A router port that is dynamically configured by the Switch is designated by D, while a Forbidden port
is designated by F. Enter a VID (VLAN ID) in the field at the top of the window and click the Find button.
To view the Browse MLD Router Port window, click Monitoring > Browse MLD Router Port.
Figure 11- 2 . Browse MLD Router Port window 7
230
