xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
296
Ports
Ticking the All Ports check box will denote all ports on the Switch.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button in the CPU Access Rule List, the following page will appear:

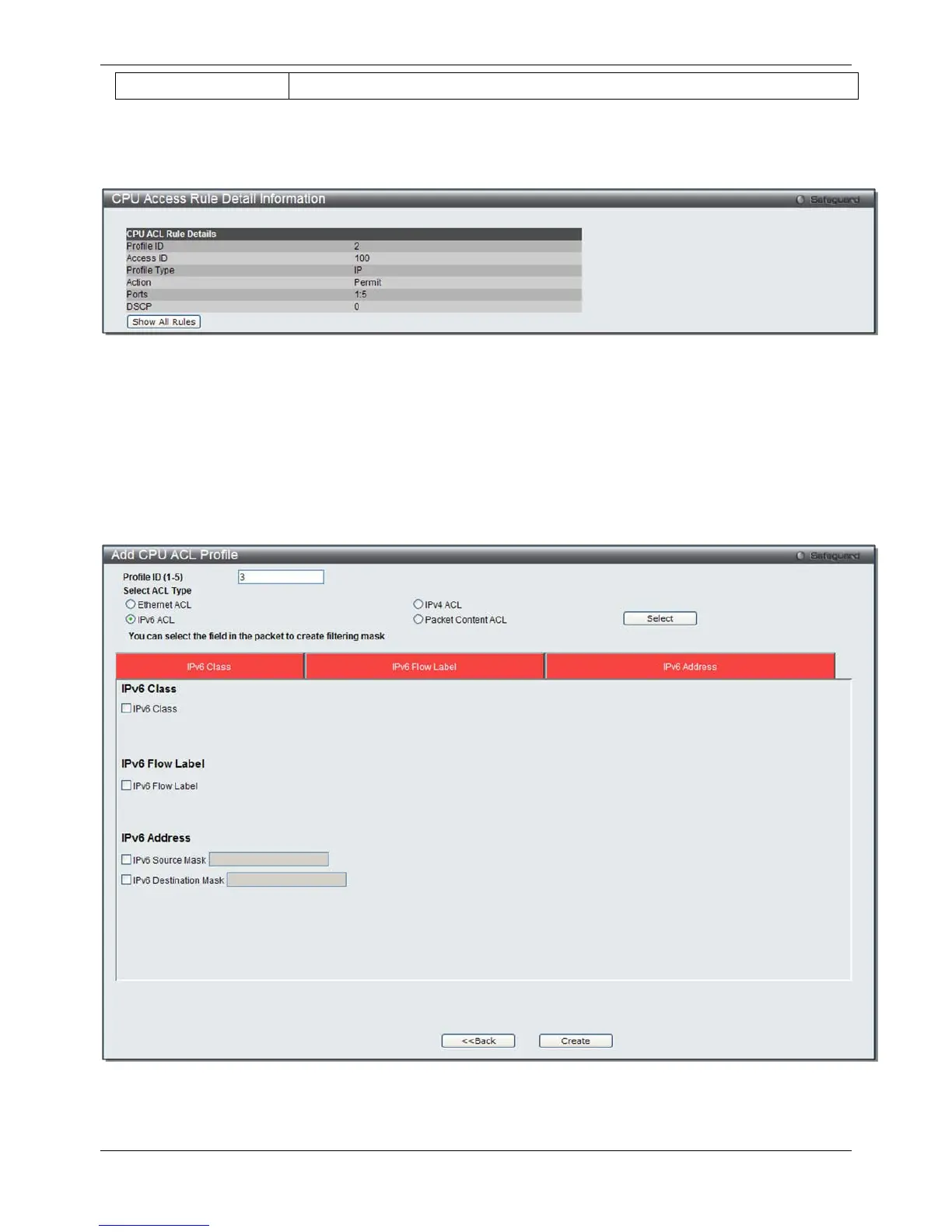

Figure 7-33 CPU Access Rule Detail Information (IPv4 ACL)
Click the Show All Rules button to navigate back to the CPU Access Rule List.
Adding a CPU IPv6 ACL Profile
The window shown below is the Add CPU ACL Profile window for IPv6. To use specific filtering masks in this ACL
profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add CPU ACL Profile button, the following page will appear:
Figure 7-34 Add CPU ACL Profile (IPv6 ACL)
The fields that can be configured are described below:

D-Link DGS-3620-28PC-SI Specifications

General

Device Type	Switch
Model	DGS-3620-28PC-SI
Switching Capacity	128 Gbps
MAC Address Table Size	16K
PoE Budget	370W
Power over Ethernet (PoE)	Yes
Humidity	5% to 95% non-condensing
Rack Mountable	Yes
Power Supply	Internal
Primary Ports	24 x 10/100/1000BASE-T
Uplink Ports	4 x 10G SFP+ Ports
Jumbo Frame Support	9K
Layer	Layer 3
Dimensions (W x D x H)	440 x 44 x 250 mm
Operating Temperature	0 to 50°C
Storage Temperature	-40 to 70°C
Power Consumption	37W (without PoE)
Input Voltage	100 to 240 VAC
Management Type	Web, CLI, SNMP
