Section 3 - Getting Started

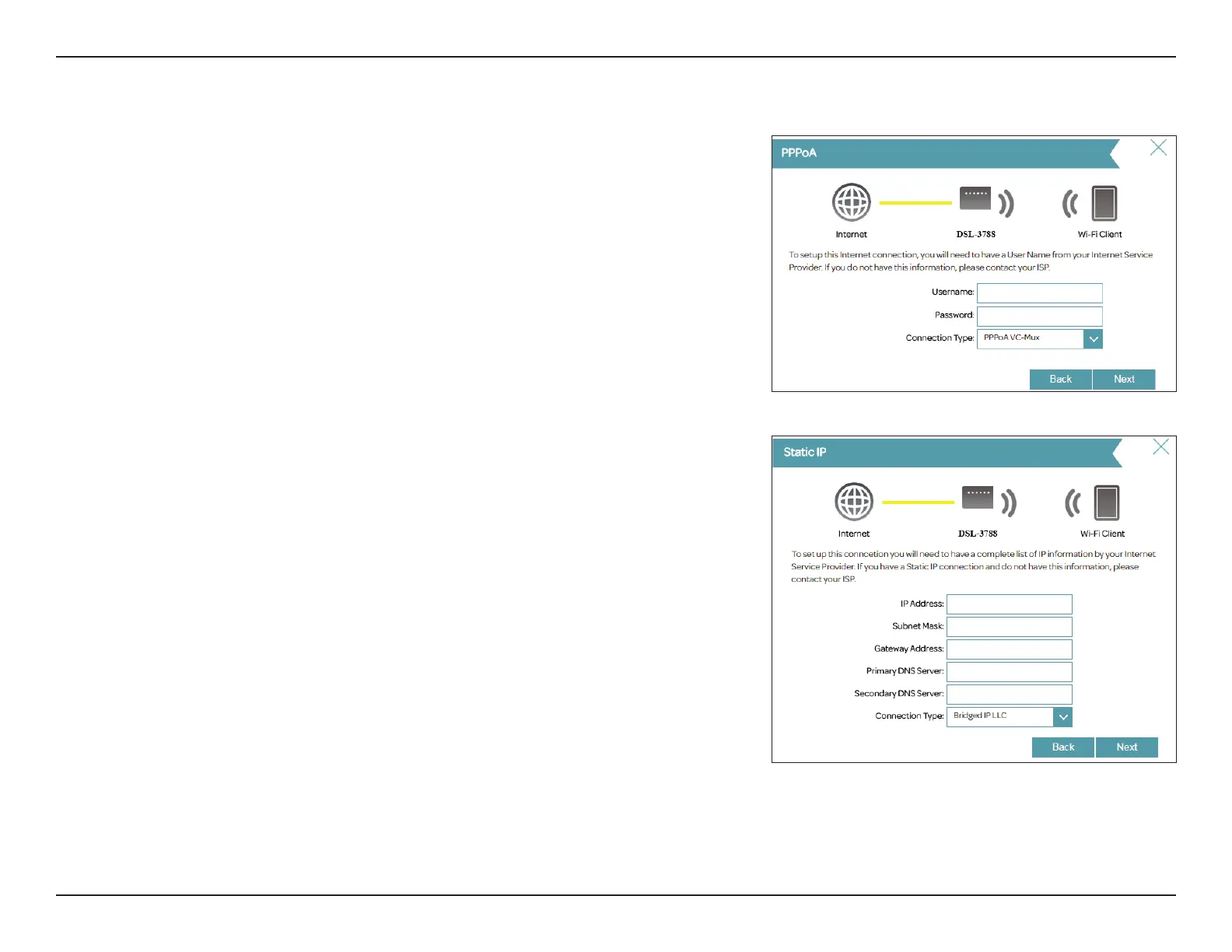

If you selected Static IP, enter the IP address, subnet mask, gateway address,
and DNS servers provided by your ISP, then choose the Connection Type if
asked. Click Next to continue.
Setup Wizard (continued)
If the router detected or you selected PPPoA, enter your PPPoA username and
password, choose the Connection Type if asked, and click Next to continue.
Note: Make sure to remove your PPPoA software from your computer. The software
is no longer needed and will not work through a router.
PPPoA connection type is only available for ADSL connections.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
