D-Link DSL-3788 User Manual

22D-Link DSL-3788 User Manual
Section 4 - Conguration
DSL
Line State: Displays the current status of the data link connection to your ISP.
Modulation: Displays the current DSL standard in use.
Annex Mode: Displays the current Annex mode in use.
DSL (Sync)
Uptime:
Displays the DSL connection uptime.
SNR Margin: Displays the Signal-to-noise margin.
Line Attenuation: Displays the current signal attenuation.
Output Power: Displays the output power of the DSL modem.
ES, SES, UAS, FEC,
CRC:
These error correction counts are used for diagnostic purposes. If
you are having trouble with your ISP, these values may provide useful
information for technicians.

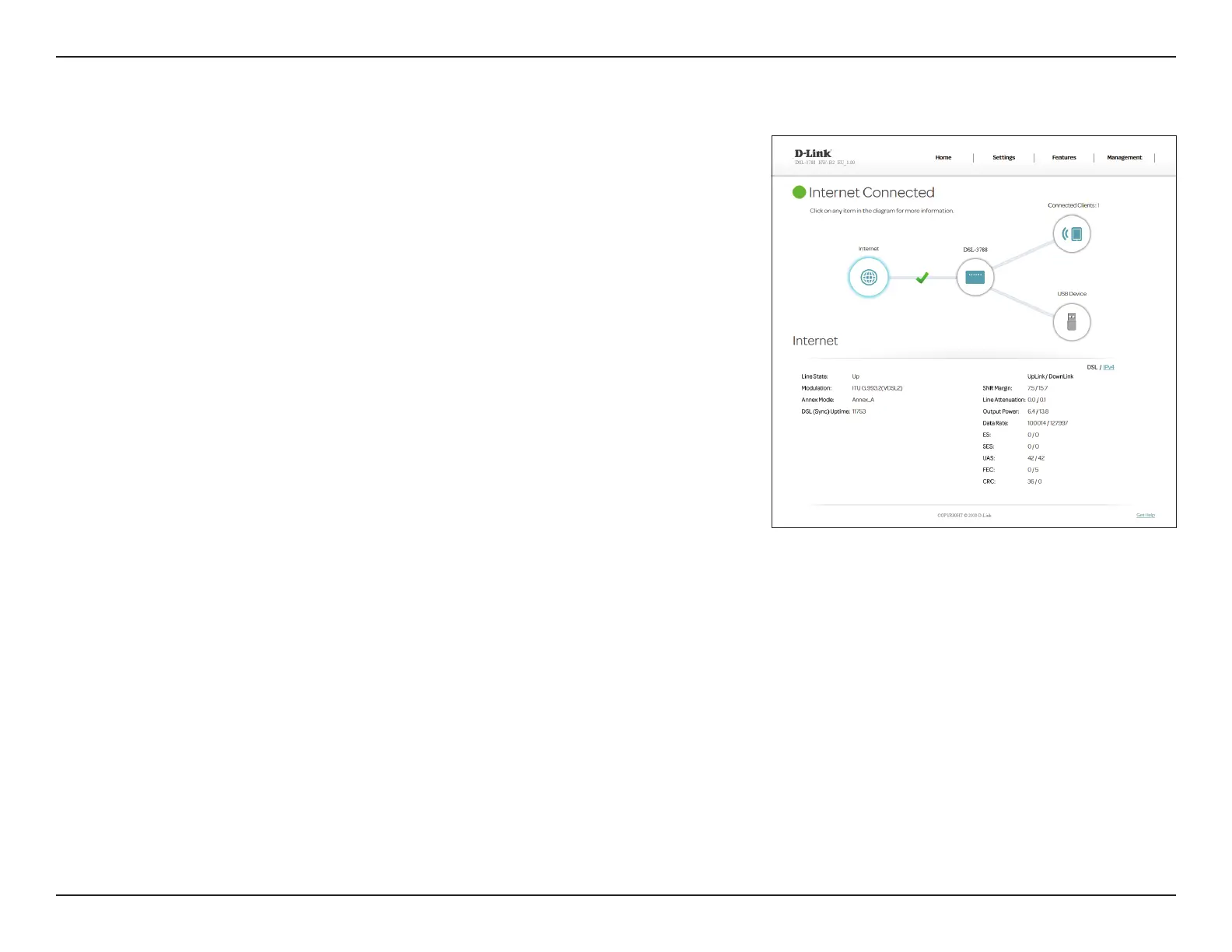

DSL
Click the DSL button to see the DSL port connection information. The DSL tab
displays information regarding the DSL data connection.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
