D-Link DSL-3788 User Manual

67D-Link DSL-3788 User Manual
Section 4 - Conguration

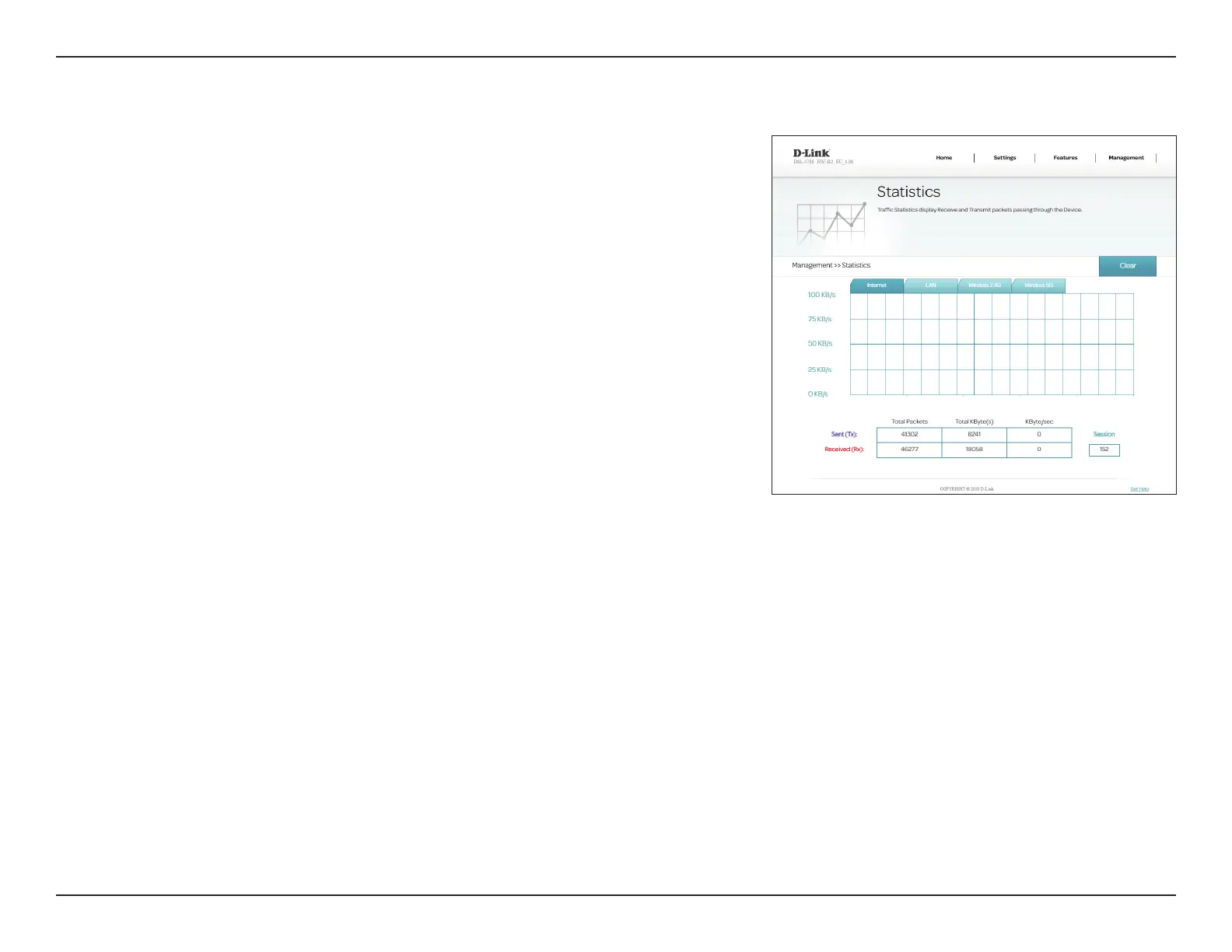

Statistics
This page gives you various statistics about data transmitted and received
by your router through the Internet, on your wired network (LAN), and
through your wireless networks. To access this page, click Statistics from the
Management menu on the bar on the top of the page.
You can view the statistics of the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5
GHz interfaces by clicking on their respective tabs at the top of the graph.
The graph will update every few seconds. The table at the bottom of the page
displays the total number of packets and data sent and received since the
DSL-3788 was booted.
The current amount of trac being sent and received, measured in KByte/sec
is displayed, along with the current number of sessions.
To clear the information on the graph, click Clear.
Note: The trac counter will reset if the device is rebooted.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
