D-Link DSL-3788 User Manual

57D-Link DSL-3788 User Manual
Section 4 - Conguration

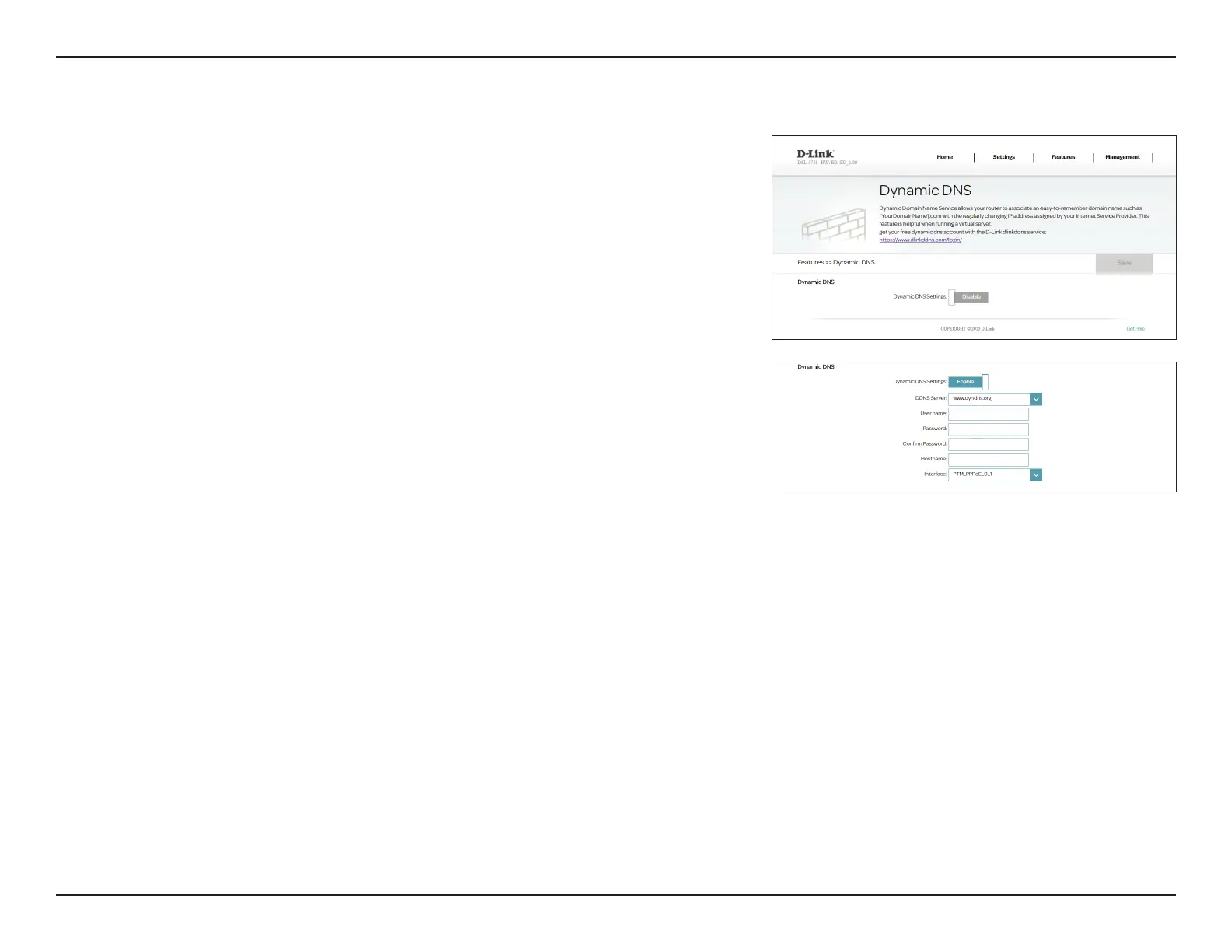

Dynamic DNS
The Dynamic DNS page is used to Most Internet Service Providers (ISPs) assign
dynamic (changing) IP addresses. Using a dynamic DNS service provider,
people can enter your domain name in their web browser to connect to your
server, no matter what your IP address is. To access this page, click Dynamic
DNS from the Features menu on the bar on the top of the page.
Enable Dynamic
DNS:
Enabling dynamic DNS will reveal further conguration options.
DDNS Server: Select your DDNS server from the drop-down menu.
Username: Enter your dynamic DNS username.
Password: Enter your dynamic DNS password.
Conrm Password: Enter your dynamic DNS password again.
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
Click Save when you are done.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
