D-Link DSL-3788 User Manual

43D-Link DSL-3788 User Manual
Section 4 - Conguration

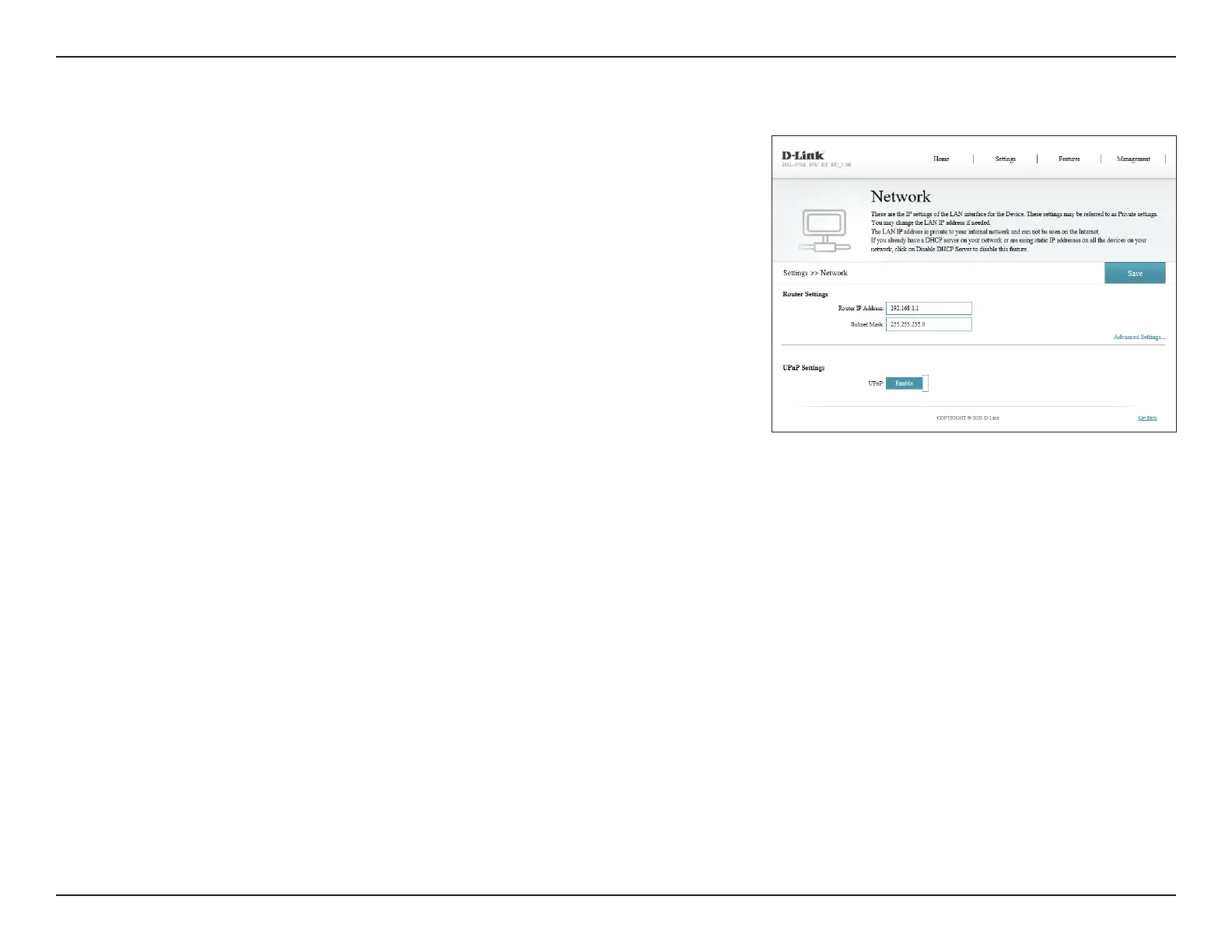

Network
Router Settings
Router IP Address: Enter the IP address of the router for this interface. The default IP
address is 192.168.1.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Subnet Mask: Enter the subnet mask of this interface. The default subnet mask is
255.255.255.0.
UPNP Settings
UPNP: Enable or disable UPNP.
Click Save when you are done or click Advanced Settings.
Advanced Settings
You may select one of the following DHCP mode behaviors:
Disable DHCP
Server:
Select this option to disable the DHCP server. No further conguration
is available.
This section will allow you to change the local network settings of the router
and to congure the DHCP settings. To access this page, click Network from
the Settings menu on the bar on the top of the page.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
