Candidate Switch Icon

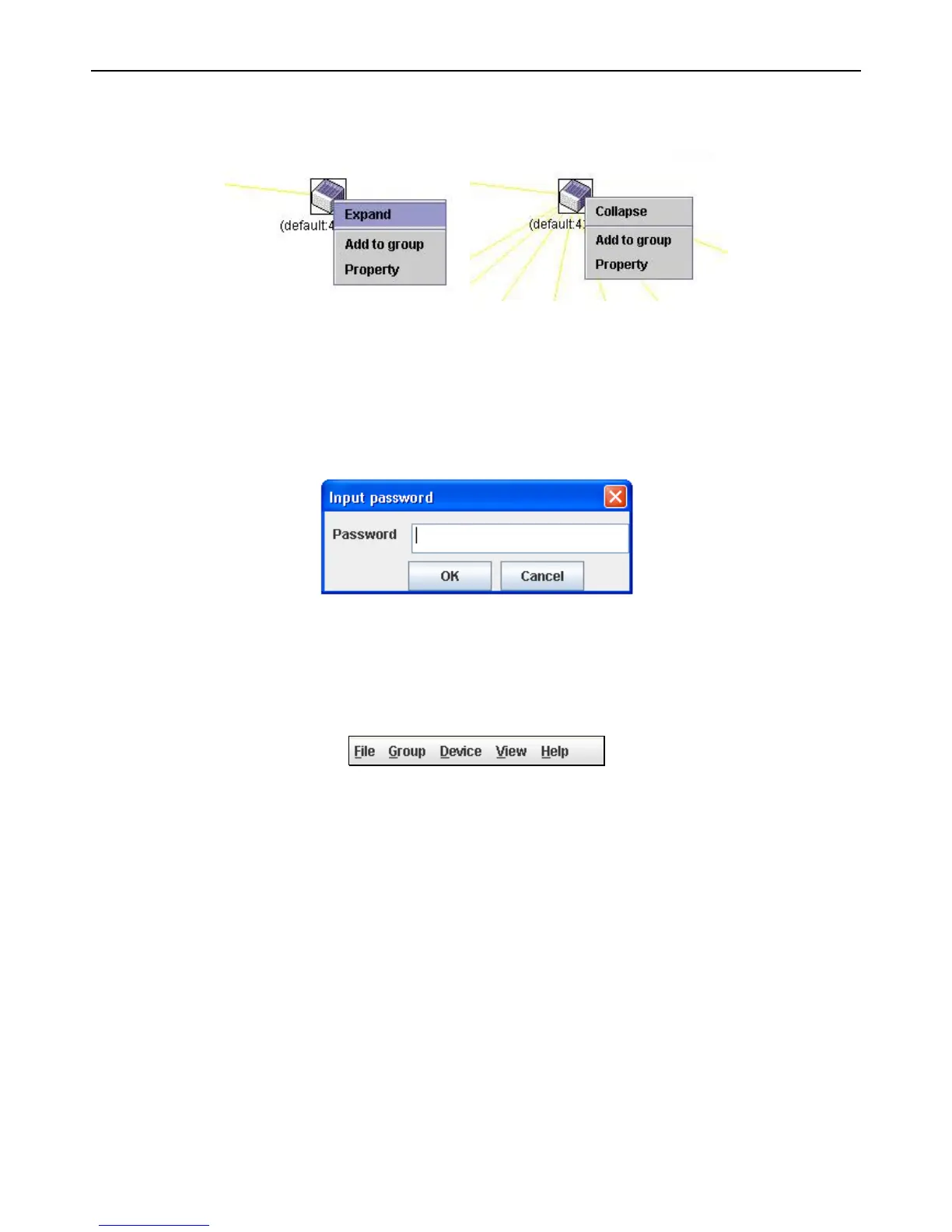

Figure 2 - 111 Right-clicking a Candidate icon
The following options may appear for the user to configure:
• Collapse – to collapse the group that will be represented by a single icon.
• Expand – to expand the SIM group, in detail.
• Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
Figure 2 - 112 Input password dialog
• Property – to pop up a window to display the device information.
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 2 - 113 Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
• Print Setup – will view the image to be printed.
• Print Topology – will print the topology map.
• Preference – will set display properties, such as polling interval, and the views to open at SIM startup.
Group
• Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
