xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
33
Mirroring within the Switch Stack
Users may configure mirroring between switches in the switch stack but certain conditions and restrictions apply.
1. When mirroring is configured in the stack, the primary master and the backup master will save and synchronize these
mirroring configurations in their respective databases. Therefore, if the primary master is removed, the backup master
will still hold the mirroring configurations set.
2. If the device hot-removed from the stack holds the target port for the mirroring function, the primary master will disable
the mirroring function for the whole stack.
3. Stacking ports cannot be source ports or target mirror ports.
System Log
This section contains information for configuring various attributes and properties for System Log Configurations, including
System Log Host and System Log Save Mode Settings.
System Log Host
This window is used to add Syslog host that the Switch can send Syslog messages to up to four designated servers using the
System Log Server.
To view this window, click System Log Settings > System Log Host, as shown below:

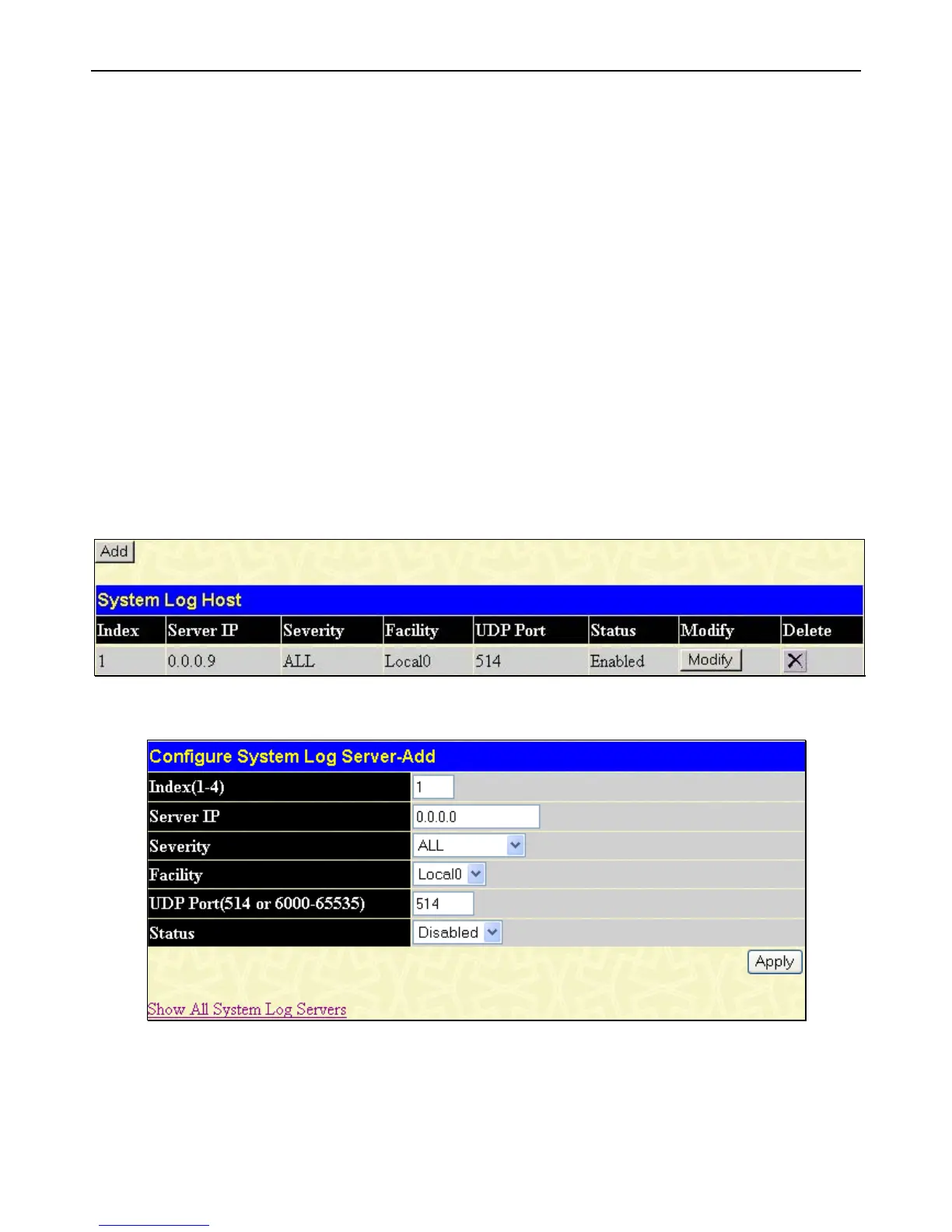

Figure 2 - 25 System Log Host list
The parameters configured for adding and editing System Log Server settings are the same. See the table below for a description.
Figure 2 - 26 Configure System Log Server – Add window
