xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch

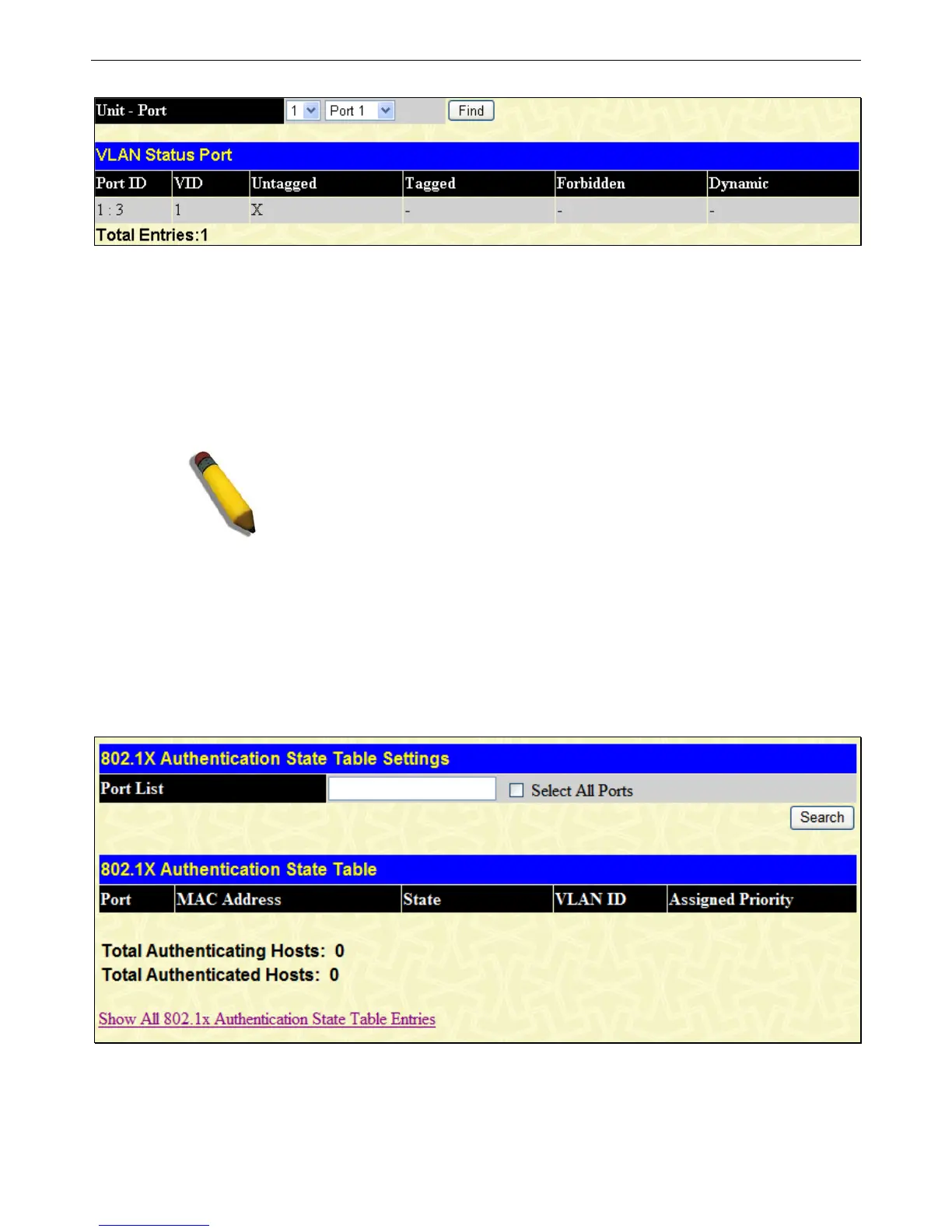

Figure 7 - 22 VLAN Status Port window
Port Access Control
The following screens are used to monitor 802.1X statistics of the Switch, on a per port basis. To view the Port Access Control
windows, open the monitoring folder and click the Port Access Control folder. There are six windows to monitor.
NOTE: The Authenticator State cannot be viewed on the Switch unless
802.1X is enabled by port or by MAC address. To enable 802.1X, go to
the DGS-3426G Web Management Tool window.
Authenticator State
The following section describes the 802.1X Authenticator State on the Switch. This window displays the Authenticator State for
individual ports on a selected device. In Port-based mode if one of the attached hosts is successfully authorized, all hosts on the
same port will be granted access to the network. If the port authorization fails, the specified port(s) will continue authenticating. In
Host-based mode each user can individually authenticate and access the network.
To view this window, click Monitoring > Port Access Control > Authenticator State, as shown below:
Figure 7 - 23 Authenticator State window
309
