VLAN Name
The VLAN Name of the VLAN of which the port is a member.
MAC Address
The MAC address entered into the address table.
Unit – Port
The unit and port to which the MAC address above corresponds.
Type
Describes the method which the Switch discovered the MAC address. The possible entries are
Dynamic, Self, and Static.
Next
Click this button to view the next page of the address table.
View All Entry
Clicking this button will allow the user to view all entries of the address table.
Clear All Entry
Clicking this button will allow the user to delete all entries of the address table.
IGMP Snooping Group
This window allows the Switch’s IGMP Snooping Group Table to be viewed. IGMP Snooping allows the Switch to read the
Multicast Group IP address and the corresponding MAC address from IGMP packets that pass through the Switch.
To view this window, click Monitoring > IGMP Snooping Group, as shown below:

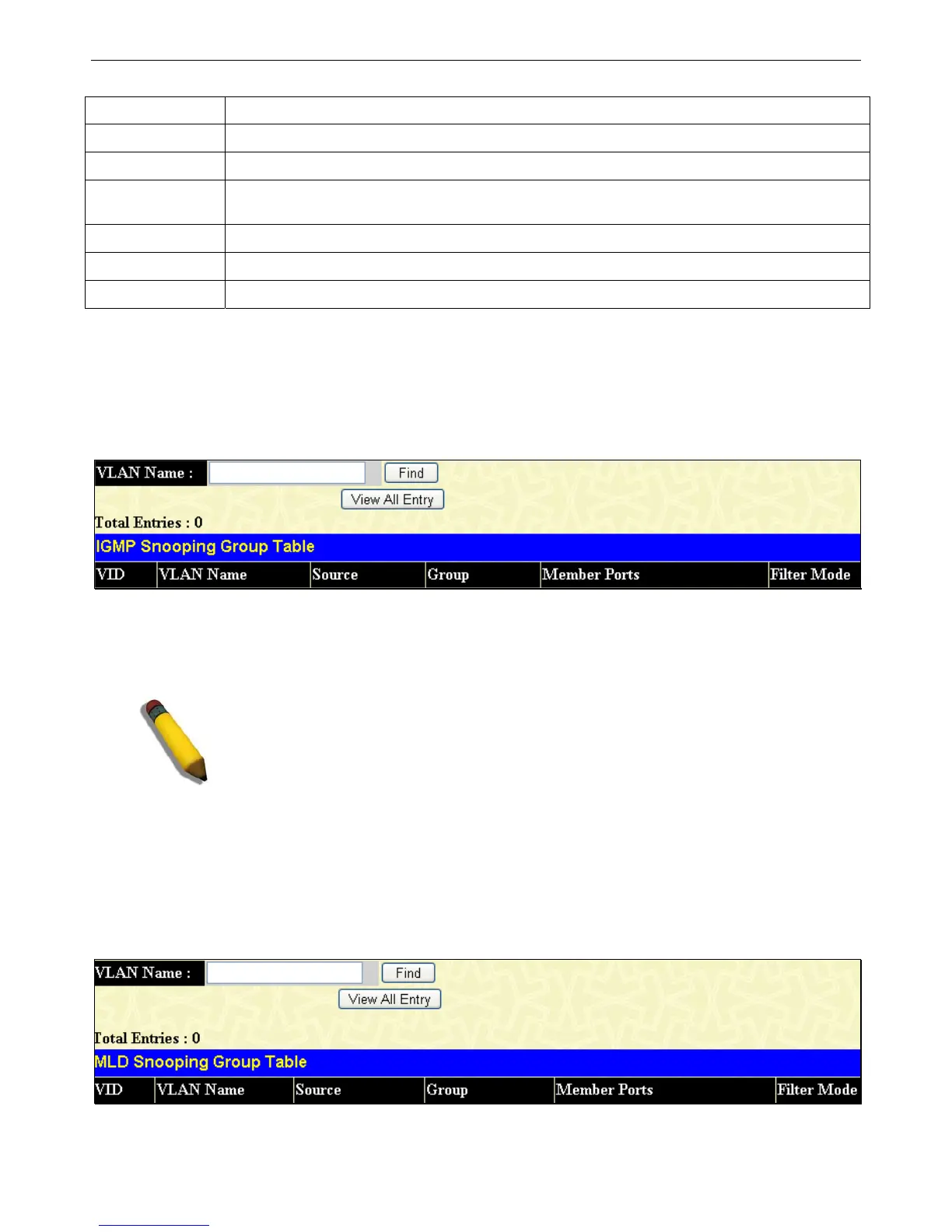

Figure 7 - 30 IGMP Snooping Group Table window
The user may search the IGMP Snooping Group Table by VLAN name by entering it in the top left hand corner and clicking Find.
To view all entries click View All Entry.
NOTE: To configure IGMP snooping for the xStack
®
DGS-3426G switch, go to the L2
Features folder and select IGMP Snooping. Configuration and other information
concerning IGMP snooping may be found in Section 3 of this manual under IGMP
Snooping.
MLD Snooping Group
The following window allows the user to view MLD Snooping Groups present on the Switch. MLD Snooping is an IPv6 function
comparable to IGMP Snooping for IPv4. The user may browse this table by VLAN Name present in the switch by entering that
VLAN Name in the empty field shown below, and clicking the Search button.
To view this window, click Monitoring > MLD Snooping Group, as shown below:
Figure 7 - 31 MLD Snooping Group Table
