xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
102

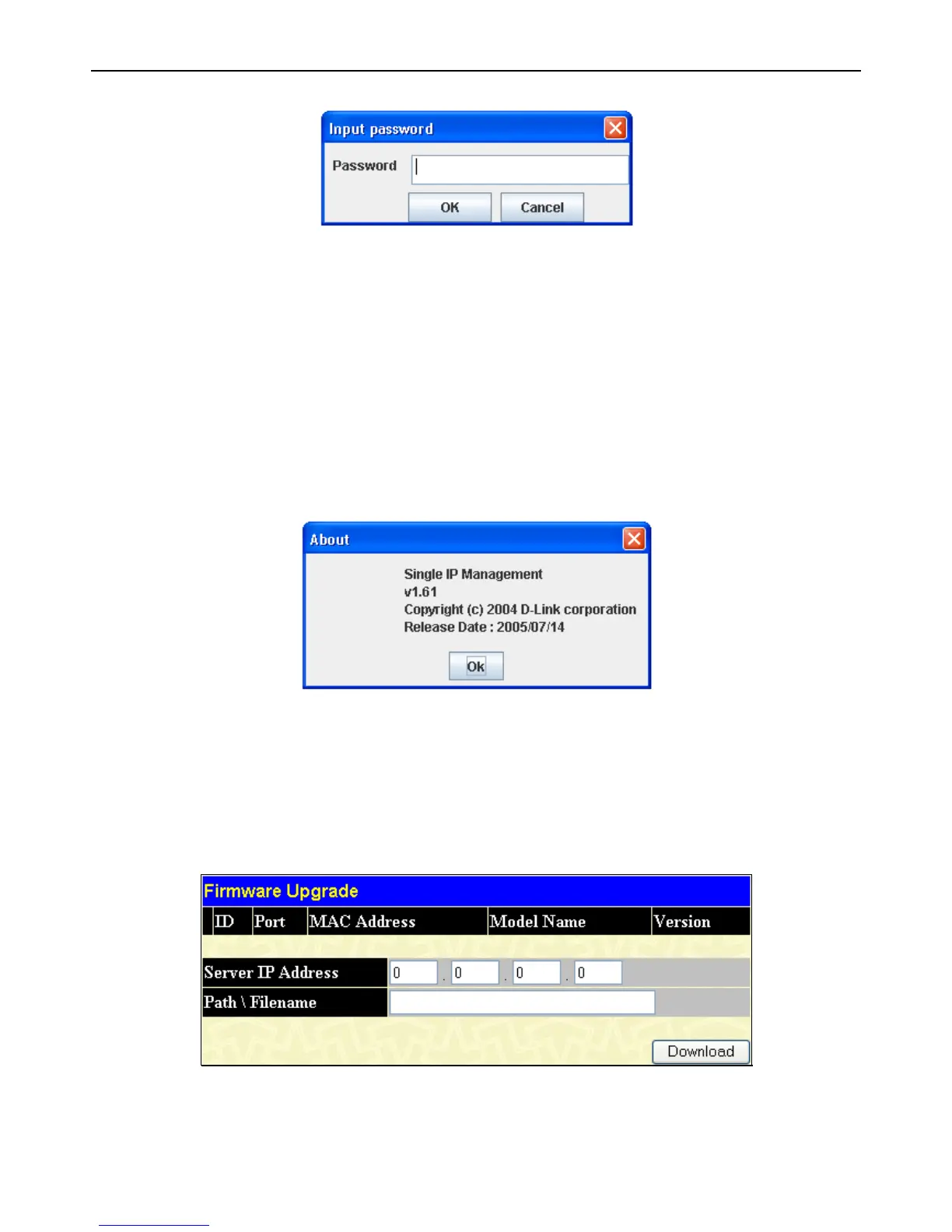

Figure 2 - 114 Input password dialog
• Remove from Group - Remove an MS from the group.
Device
• Configure - will open the Web manager for the specific device.
View
• Refresh - update the views with the latest status.
• Topology - display the Topology view.
Help
• About - Will display the SIM information, including the current SIM version.
Figure 2 - 115 About window
Firmware Upgrade
This window is used to upgrade firmware from the Commander Switch to the Member Switch. Member Switches will be listed in
the table and will be specified by Port (port on the CS where the MS resides), MAC Address, Model Name and Version. To
specify a certain Switch for firmware download, click its corresponding check box under the Port heading. To update the firmware,
enter the Server IP Address where the firmware resides and enter the Path/Filename of the firmware. Click Download to initiate
the file transfer.
Figure 2 - 116 Firmware Upgrade window
