xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
161

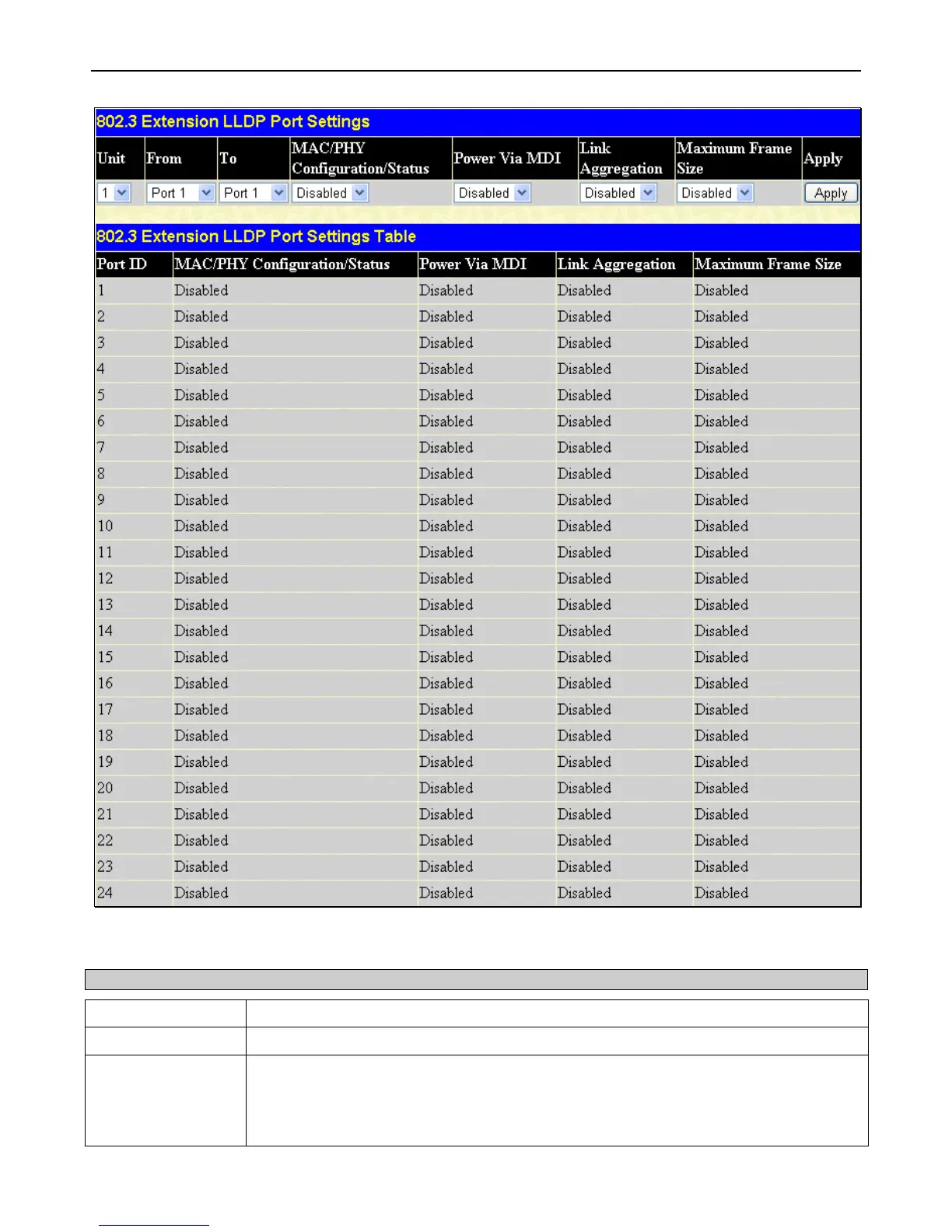

Figure 3 - 61 802.3 Extension LLDP Port Settings window
The following parameters can be set:
Parameter Description
Unit
Select the unit you wish to configure.
From/To
Use the drop-down menu to select a range of ports to be configured.
MAC/PHY
Configuration/Status
This function indicates that the LLDP agent should transmit 'MAC/PHY configuration/status
TLV'. It is possible for two ends of an IEEE 802.3 link to be configured with different duplex
and/or speed settings and still establish some limited network connectivity. More precisely,
the information includes whether the port supports the auto-negotiation function, if the
function is enabled, the auto-negotiated advertised capability, or the operational MAU type.
