Yellow – When an IP flow is in the yellow mode, its configurable parameters can be set in the Exceed field. Users may choose to
either Permit or Drop exceeded packets. Users may also choose to change the DSCP field of the packets.
Red – When an IP flow is in the red mode, its configurable parameters can be set in the Exceed field. Users may choose to either
Permit or Drop exceeded packets. Users may also choose to change the DSCP field of the packets.
Users may also choose to count exceeded packets by clicking the Counter check box. If the counter is enabled, the counter setting
in the access profile will be disabled. Users may only enable two counters for one flow meter at any given time.
To view this window, click ACL > ACL Flow Meter, as shown below.

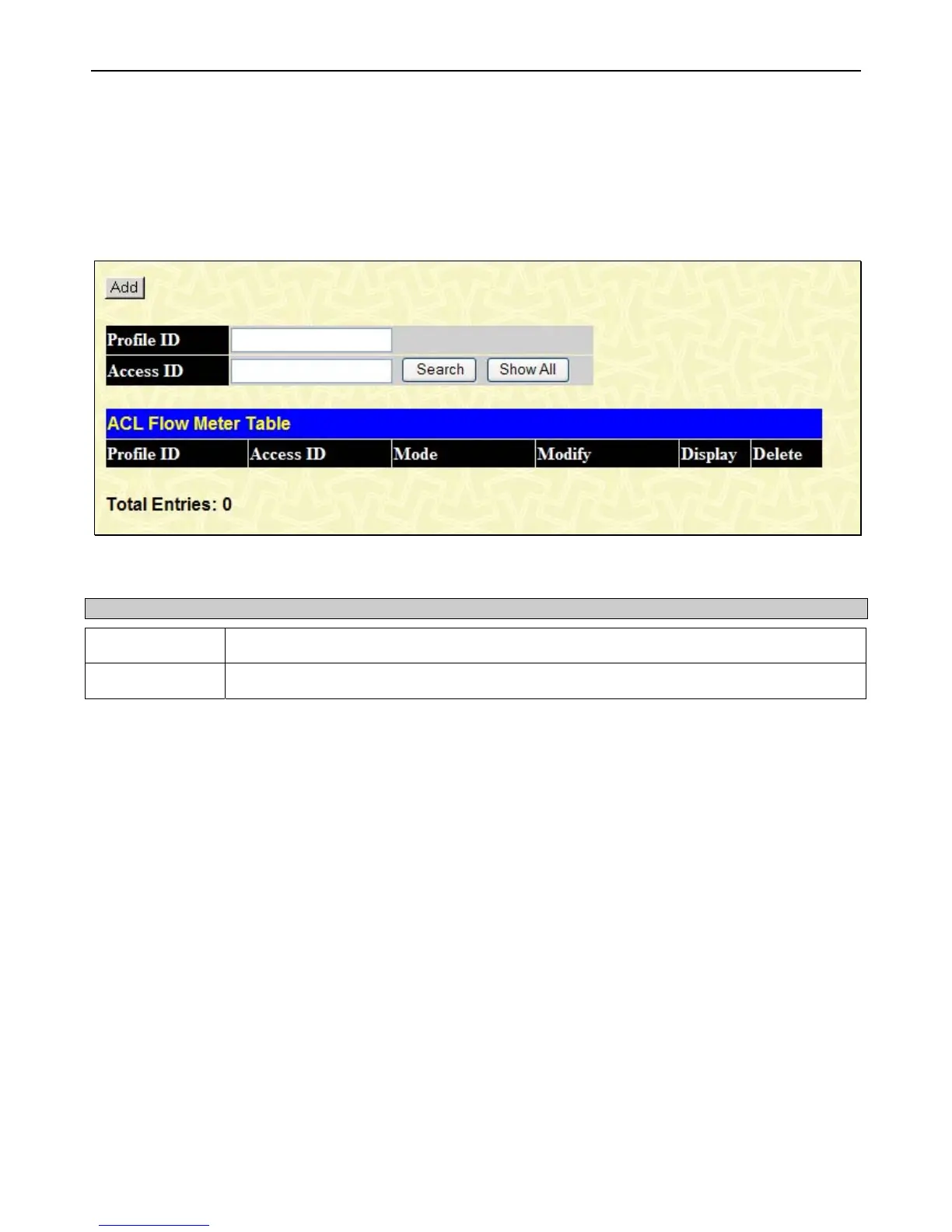

Figure 5 - 23 ACL Flow Meter window
The following fields may be configured:
Parameter Description
Profile ID
The pre-configured Profile ID for which to configure the Flow Metering parameters.
Access ID
The pre-configured Access ID for which to configure the Flow Metering parameters.
The previous window allows users to view the ACL profile and rule that is utilizing the ACL Flow Meter function, and the mode
associated with that profile and rule. Users may search a particular Profile ID or Access ID by entering that value into one of the
available fields and clicking Search. The result should be displayed in the table. Click Show All to show all ACL Profiles and
Access IDs that are utilizing the ACL Flow Metering function. To add an ACL Flow Meter configuration for an Access Profile
and Rule, click the Add button, which will display the following window for users to configure.
