xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
206

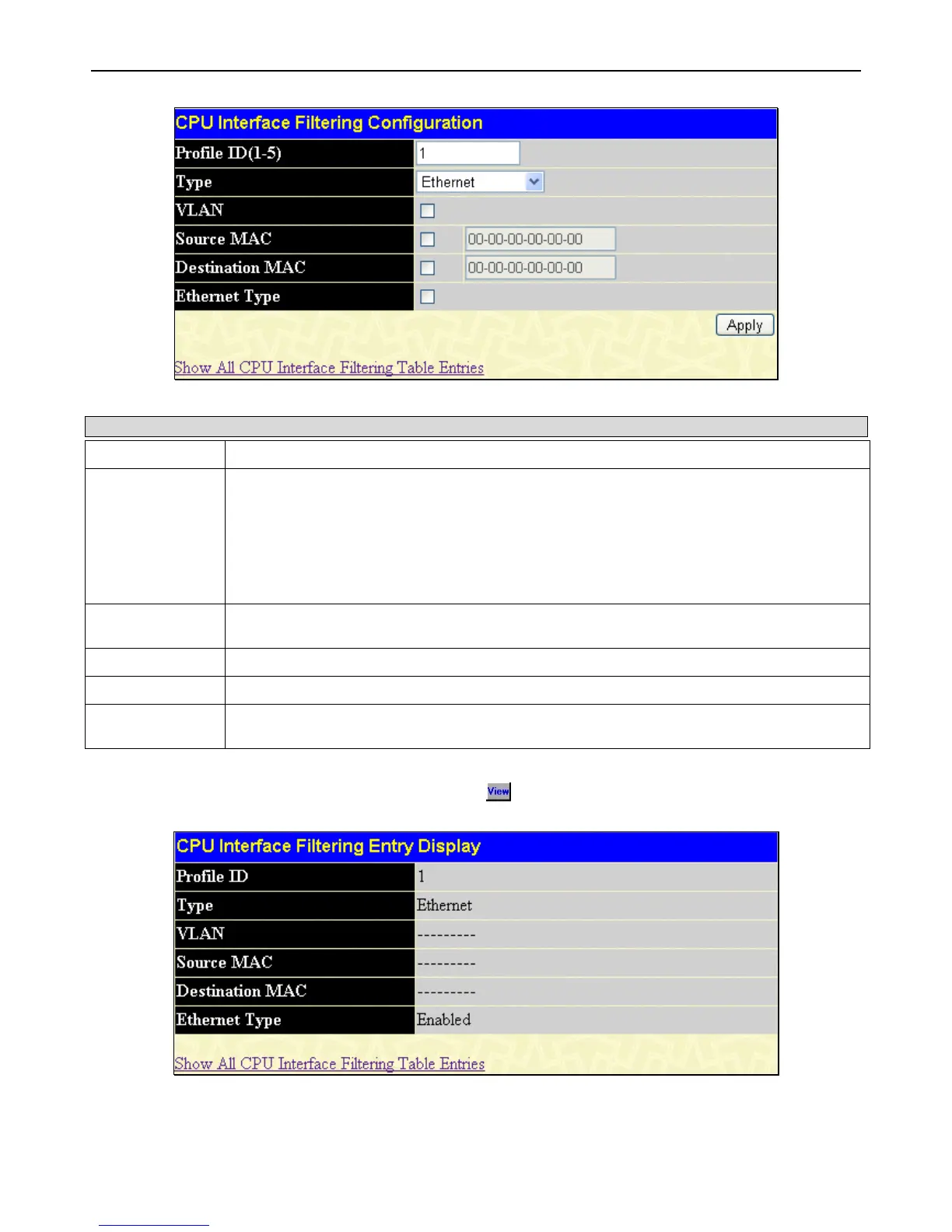

Figure 5 - 28 CPU Interface Filtering Configuration window (Ethernet)
Parameter Description
Profile ID (1-5)
Type in a unique identifier number for this profile set. This value can be set from 1 to 5.
Type
Select profile based on Ethernet (MAC Address), IP address, IPv6 address or packet content
mask. This will change the menu according to the requirements for the type of profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IP to instruct the Switch to examine the IP address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
Select IPv6 to instruct the Switch to examine the IPv6 address in each frame’s header.
VLAN
Selecting this option instructs the Switch to examine the VLAN identifier of each packet header
and use this as the full or partial criterion for forwarding.
Source MAC
Source MAC Mask - Enter a MAC address mask for the source MAC address.
Destination MAC
Destination MAC Mask - Enter a MAC address mask for the destination MAC address.
Ethernet type
Selecting this option instructs the Switch to examine the Ethernet type value in each frame's
header.
Click Apply to set this entry in the Switch’s memory.
To view the settings of a previously correctly created profile, click
in the CPU Interface Filtering Table window to view the
following window:
Figure 5 - 29 CPU Interface Filtering Entry Display window (Ethernet)
The page shown below is the CPU Interface Filtering Profile Configuration for IP page.
