To set the Access Rule for Packet Content, adjust the following parameters and click Apply.
Parameter Description
Profile ID
This is the identifier number for this profile set.
Mode
Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the
Switch and will be filtered.
Access ID
Type in a unique identifier number for this access. This value can be set from 1 - 100.
Type
Specifies the type of profile that is being created.
Offset
This field will instruct the Switch to mask the packet header beginning with the offset value
specified:
value (0-15) – Enter a value in hex form to mask the packet from the beginning of the packet to
the 15th byte.
value (16-31) – Enter a value in hex form to mask the packet from byte 16 to byte 31.
value (32-47) – Enter a value in hex form to mask the packet from byte 32 to byte 47.
value (48-63) – Enter a value in hex form to mask the packet from byte 48 to byte 63.
value (64-79) – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Port
Type in the port or range of ports that will be affected.
Time Range
Click the check box and enter the name of the Time Range settings that has been previously
configured in the Time Range Settings window. This will set specific times when this access
rule will be implemented on the Switch.
To view the settings of a previously correctly configured rule, click in the CPU Interface Filtering Rule Table window to
view the following window:

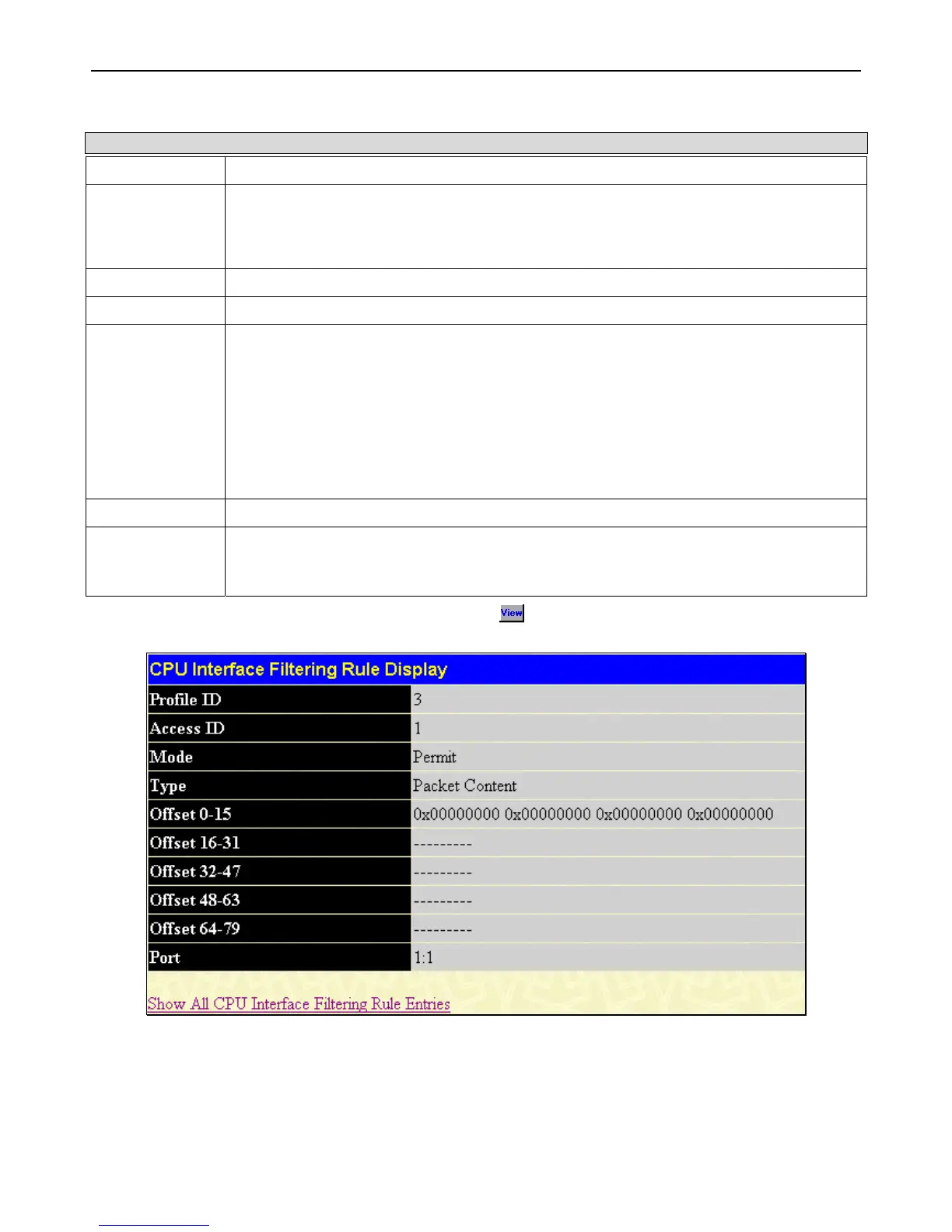

Figure 5 - 45 CPU Interface Filtering Rule Display window (Packet Content)
The following window is the CPU Interface Filtering Rule Table for IPv6.
