To set the Access Rule for IPv6, adjust the following parameters and click Apply.
Parameter Description
Profile ID
This is the identifier number for this profile set.
Mode
Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the
Switch and will be filtered.
Access ID(1-100)
Enter an access ID that will be a unique identifier number for this profile set. This value can be
set from 1 to 5.
Type
Specifies the type of profile that is being created.
Class (0-255)
This function specifies that the Switch will examine the class field of the IPv6 header. This class
field is a part of the packet header that is similar to the Type of Service (ToS) or Precedence bits
field in IPv4.
Flow Label (0-
FFFFF)
This field will instruct the Switch to examine the flow label field of the IPv6 header. This flow
label field is used by a source to label sequences of packets such as non-default quality of
service or real time service packets.
Source IPv6
Address
Enter an IPv6 address to be used as the source address.
Destination IPv6
Address
Enter an IPv6 address that will be used as the destination address.
Port
Enter the port or list of ports that you wish to configure.
Time Range
Tick the check box and enter the name of the Time Range settings that has been previously
configured in the Time Range Settings window. This will set specific times when this access
rule will be implemented on the Switch.
To view the settings of a previously correctly configured rule, click in the CPU Interface Filtering Rule Table window to
view the following window:

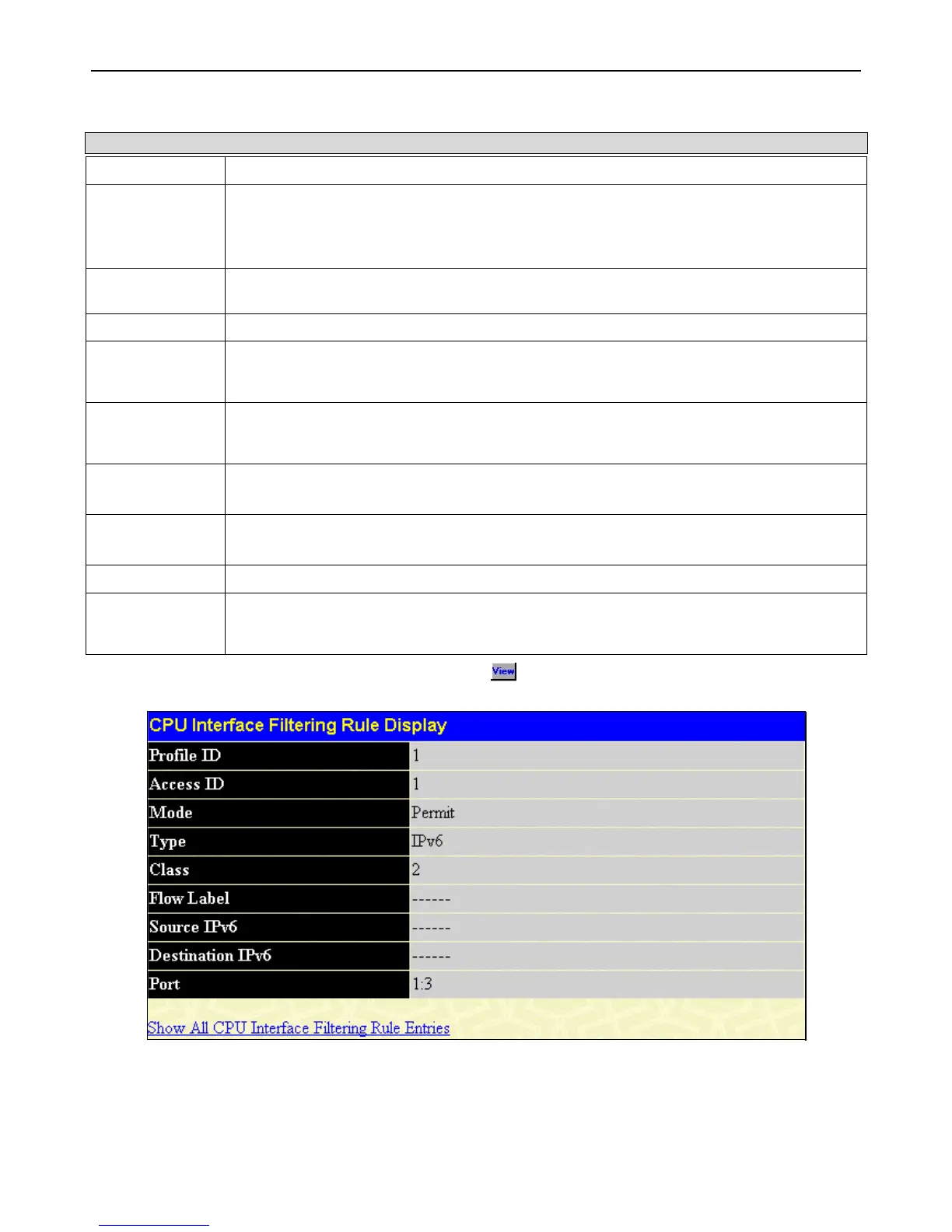

Figure 5 - 48 CPU Interface Filtering Rule Display window (IPv6)
