xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
69

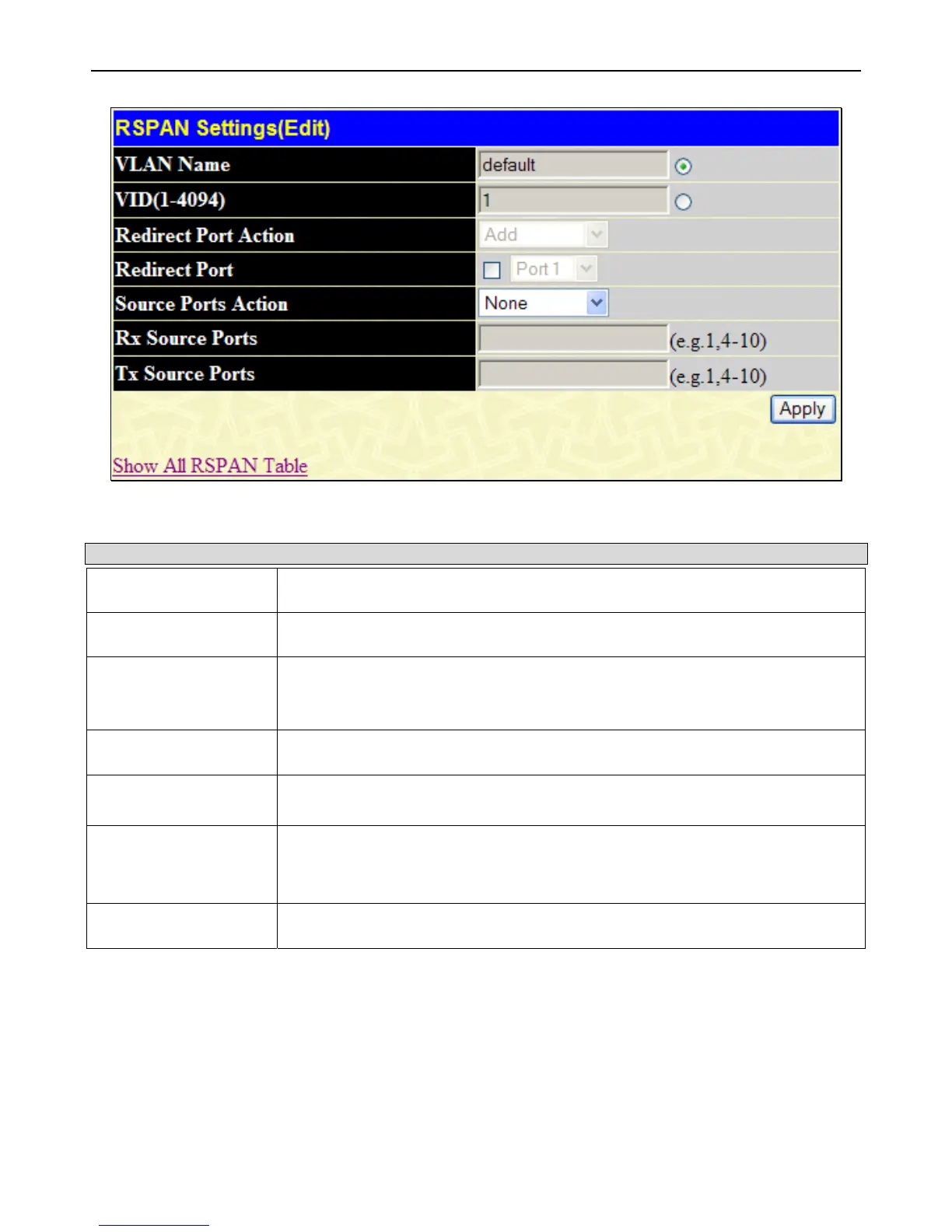

Figure 2 - 72 RSPAN Settings – Edit window
The following fields can be configured:
Parameter Description
VLAN Name
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN which will
modify the RSPAN Entries.
VID (1-4094)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN which will to
modify the RSPAN Entries.
Redirect Port Action
Use the drop down menu to select the configuration Redirect Ports Action.
Add – Add Redirect ports.
Delete – Delete Redirect ports.
Redirect Port
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Source Ports Action
Use the drop down menu to select the configuration Source Ports Action.
None –neither configure Rx Source Port nor Tx Source Port.
Rx Source Ports
The goal of Rx source ports is to monitor as much as possible all the packets received
by the source interface or VLAN before any modification or processing is performed by
the switch. A copy of each packet received by the source is sent to the destination port
for that RSPAN session.
Tx Source Ports
The goal of Tx source ports is to monitor as much as possible all the packets sent by the
source interface after all modification and processing is performed by the switch.
