DAELIM a.four

12-5
BRAKE SYSTEM

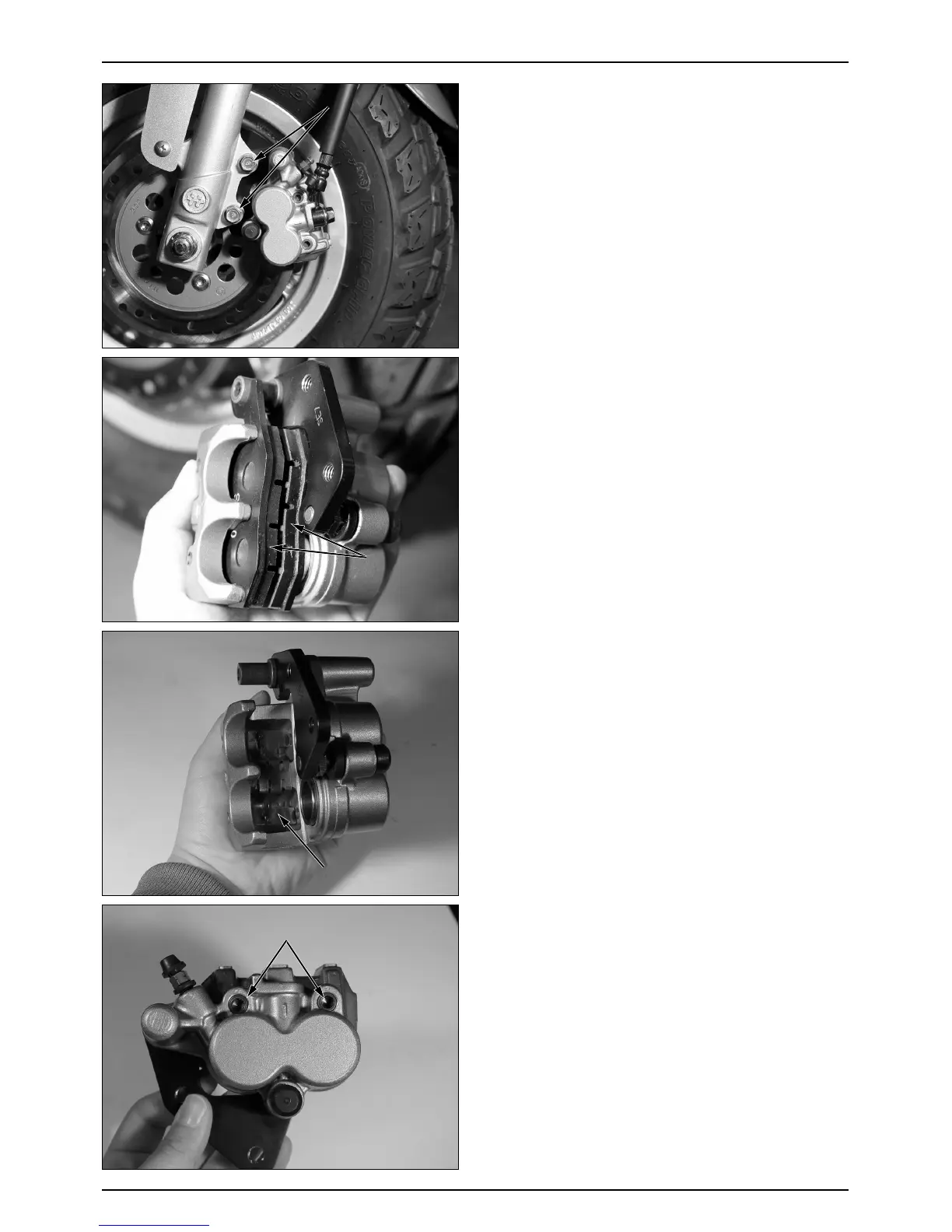

● Loosen the 2 front brake caliper fixing bolts from the
front fork.
● Remove the front caliper.
● To install a new brake pad into the brake, press the
piston to return to the original position.
● Remove the hanger pin, pad shim, and brake pad.
● Verify that the pad spring is installed in specific
position.
● Install a new brake pad, pad shim, and hanger pin.
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
BRAKE PAD
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
PAD SPRING
