DAELIM a.four

12-6
BRAKE SYSTEM
BRAKE DISK
DIAL GAUGE

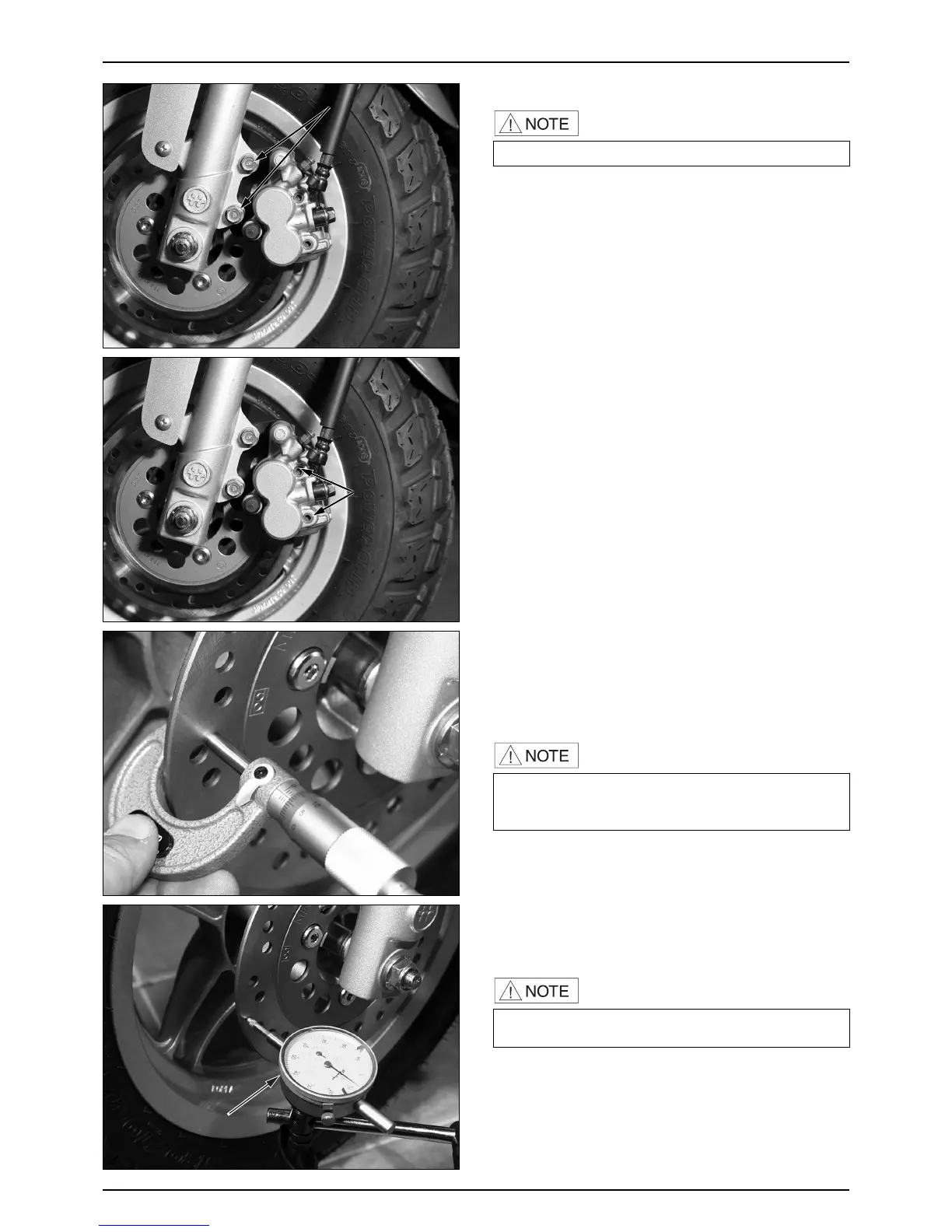

● Install the brake caliper into the left front fork.
·Be careful not to damage the brake pad.
● Tighten the caliper braket bolt.
TORQUE : 2.7kgf
·
m
● Tighten the hanger pin.
BRAKE DISK INSPECTION
● Measure the thickness of the disk.
SERVICE LIMIT : 3.0mm
·Measure the brake disk thickness at the several
points and replace if the smallest measurement is less
then the specified service limit.
● Check the brake disk for bent and twist.
SERVICE LIMIT : 0.4mm
·Replace the brake disk if the disk for damage or
cracks.
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
HANGER PIN
