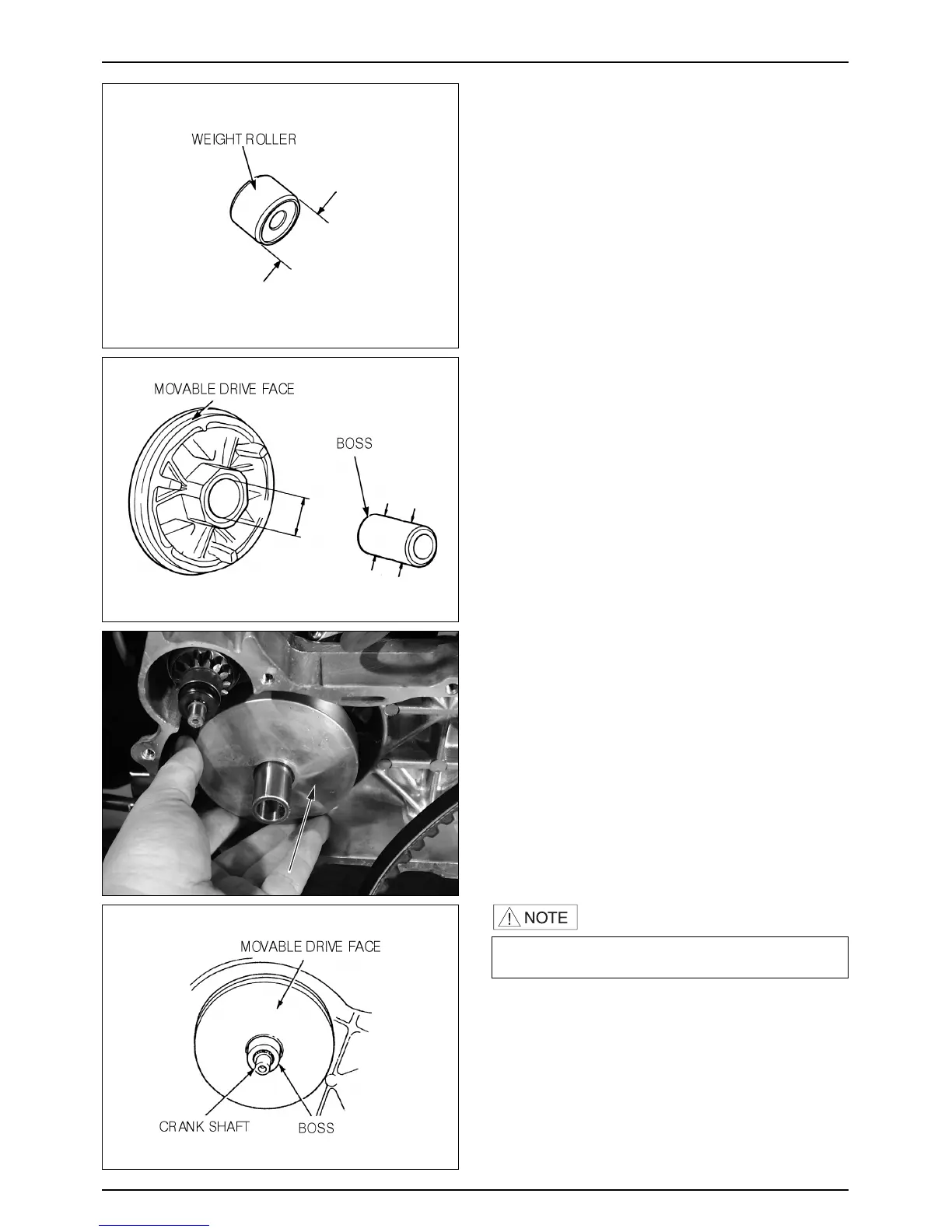

MOVABLE DRIVE FACE INSPECTION
The weight rollers push on the movable drive pulley
face (by centrifugal force); worn or damaged weight
rollers will interfere with this force.
Check the rollers for wear or damage and replace as
necessary.
Measure the O.D. of each roller, replace if the service
limit is exceeded.
SERVICE LIMIT : 15.4mm
Check the drive face boss for wear or damage and
replace as necessary.
Measure the O.D of the drive face boss. Replace the
boss if the service limit is exceeded.
Measure the I.D. of the drive face. Replace it if the
service limit is exceeded.
Movable drive face boss outer diameter
SERVICE LIMIT : 19.97mm
Movable drive face inner diameter
SERVICE LIMIT : 20.6mm
MOVABLE DRIVE FACE ASSEMBLY/INSTALLATION
Install the weight roller on the movable drive face.
Install the ramp plate.
Pack the inside of the movable drive face with the
specified amount of grease.
Install the movable drive face boss.
·Do not get the grease on the pulley face. Remove any
misplaced grease with a degreasing agent.
Install the movable face assembly on the crankshaft.
7-7
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
MOVABLE DRIVE FACE
