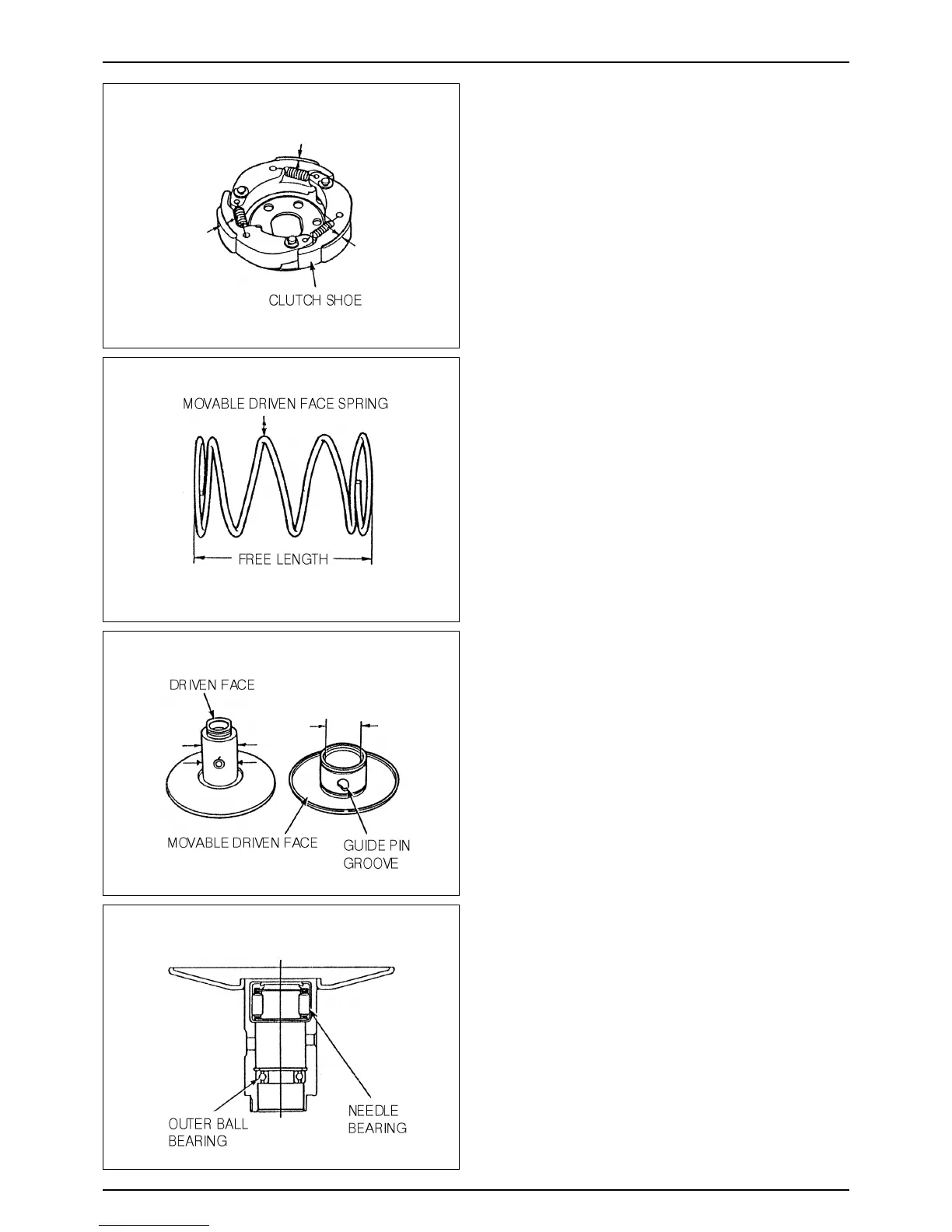

Clutch Shoe Inspection
● Measure the thickness of each shoe ; replace if the
service limit is exceeded.
SERVICE LIMIT : 2.0mm
Movable Driven Face Spring Inspection
● Measure the free length of the driven pulley spring and
replace if the service limit is exceeded.
SERVICE LIMIT : 92.8mm
Driven Face
Inspection
● Check the following;
-Both faces for damage or excessive wear.
-Guide pin groove for damage or deformation.
● Replace damaged or worn parts an necessary.
● Measure the O.D. of the driven face and the I.D. of the
movable driven face. Replace either part if the service
limit is exceeded.
Driven face outer diameter service limit : 33.94mm
Movable driven face inner diameter service limit : 34.06mm
Driven Face Bearing Inspection
● Check the inner bearing oil seal (if installed) for
damage; replace as necessary.
● Check the needle bearing for damage or excessive play
and replace as necessary.
● Turn the inner race of the outer bearing with your
finger. Check that the bearing turns smoothly and
quietly, and that the bearing outer race fits securely.
Replace the bearing if necessary.
7-10
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
