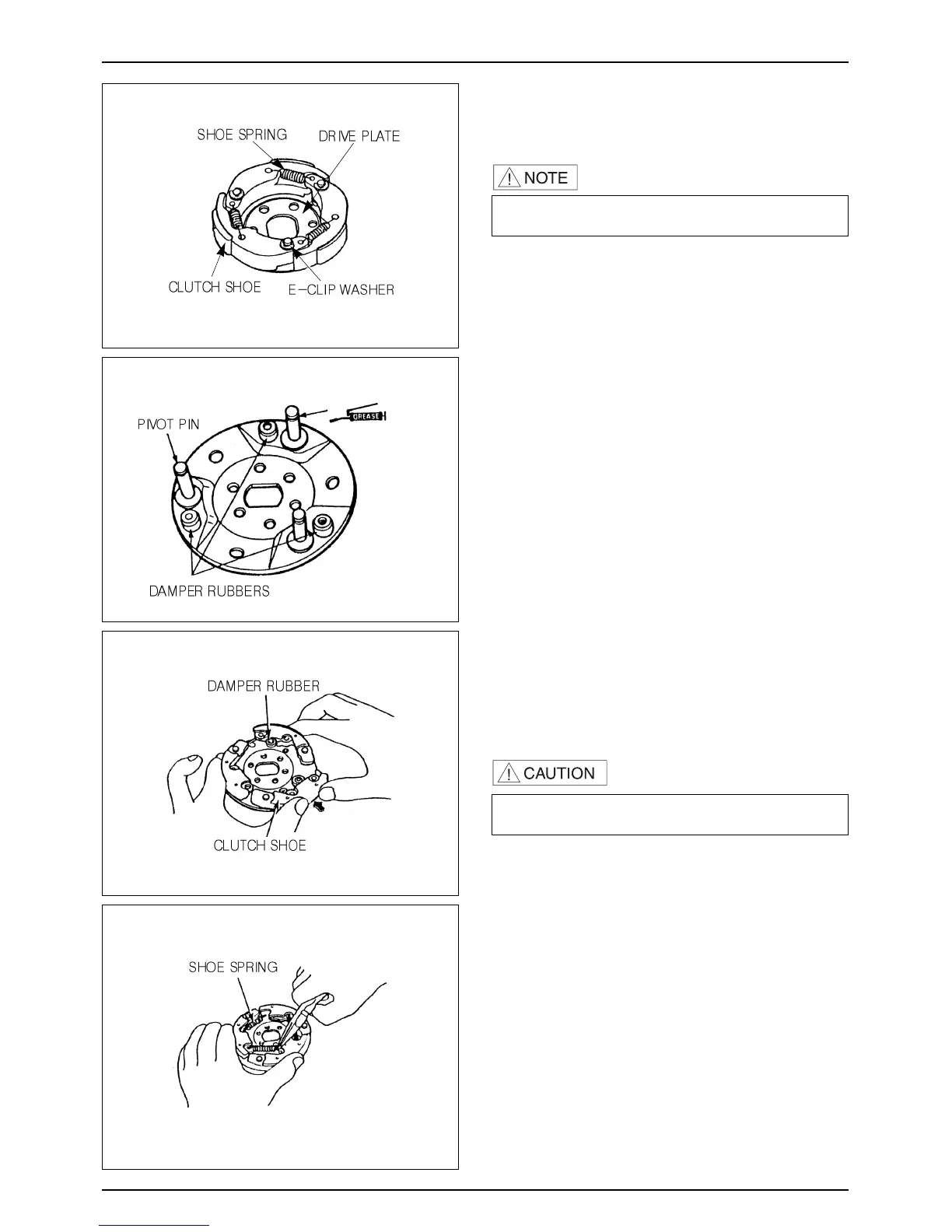

CLUTCH SHOE REPLACEMENT
● Remove the E-clip and washers, then remove the
clutch shoes and shoe springs from the drive plate.
·Some models use one retainer plate instead of three
washers.
● Check the shoe springs for damage or loss of tension.
● Check the damper rubbers for damage or deformation;
replace as necessary.
● Apply a small amount of grease on the pivot pins.
● Install new clutch shoes on the pivot pins and push
them into place.
● Use a small amount of grease on the pivot pin and keep
grease off of the brake shoes. Replace the brake shoes
if there is any grease on them.
·Grease or oil damages clutch shoes and can lead to a
loss of engaging ability.
● Use pliers to hook the springs to the shoes.
