● Install the E-clip and washers or retainer plate into the
pivot pins.
·Apply only to the belt type gearless transmission.
·Wipe the grease came out from the pivot pin
thoroughly.

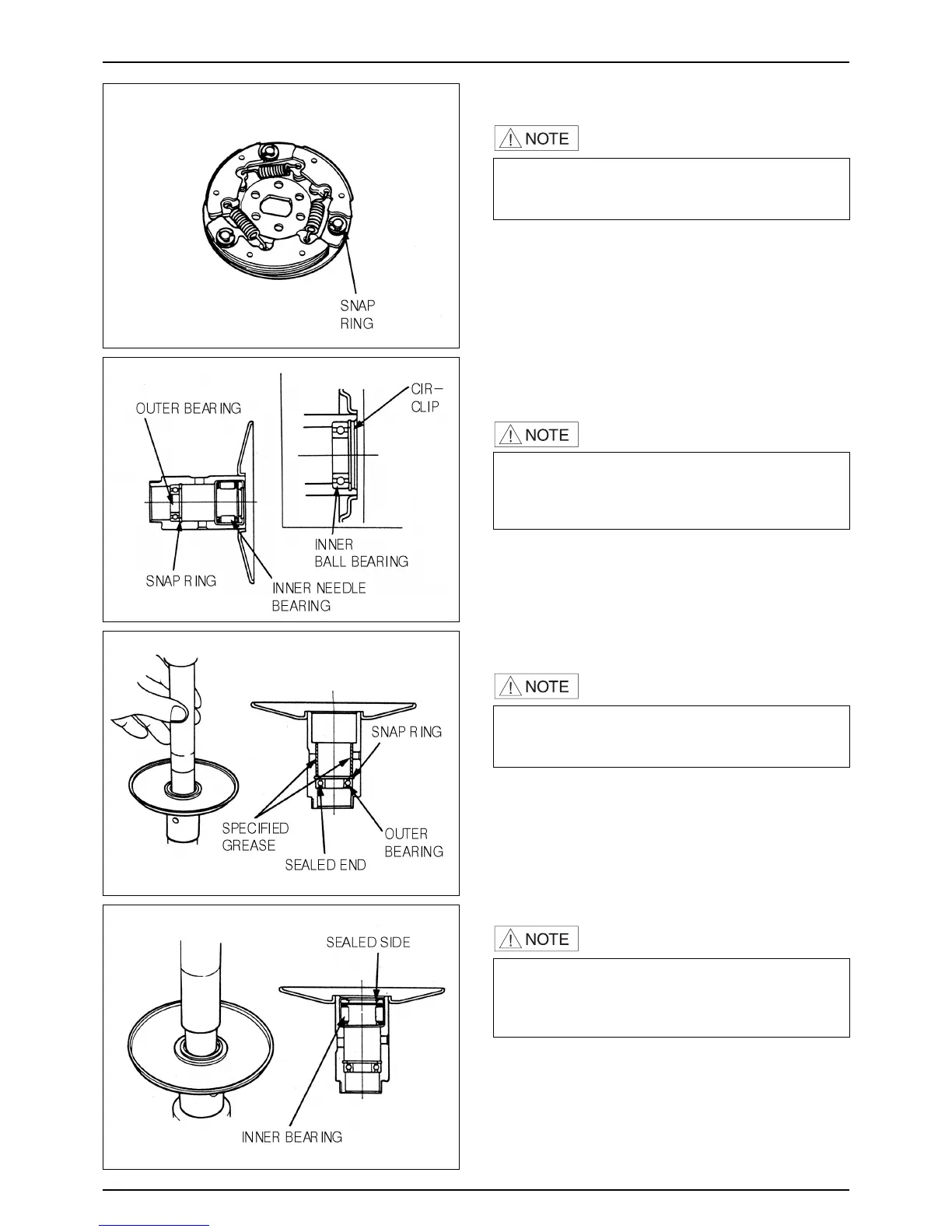

DRIVEN FACE BEARING REPLACEMENT
● Remove the inner bearing
·If the driven face has an oil seal at inner bearing side,
remove the oil seal first.
·If a ball bearing is used oh the inside, remove the
snap ring first then remove the bearing.
● Remove the snap ring then drive out the outer bearing
toward the inner bearing side.
● Drive a new outer bearing into place with the sealed
end toward the outside. Install the snap ring securely.
·Apply the specified amount of specified grease as
shown.
GREASE APPLICATION : 5.0~5.5g
● Install in a new inner bearing
·Install the bearing with the sealed side facing out.
·Install the needle bearing using a hydraulic press.
Install the ball bearing by driving it in or using a
hydraulic press.
● Install the snap ring into the groove in the driven face.
● Install a new oil seal with the lip toward the bearing (if
required).
7-12
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
