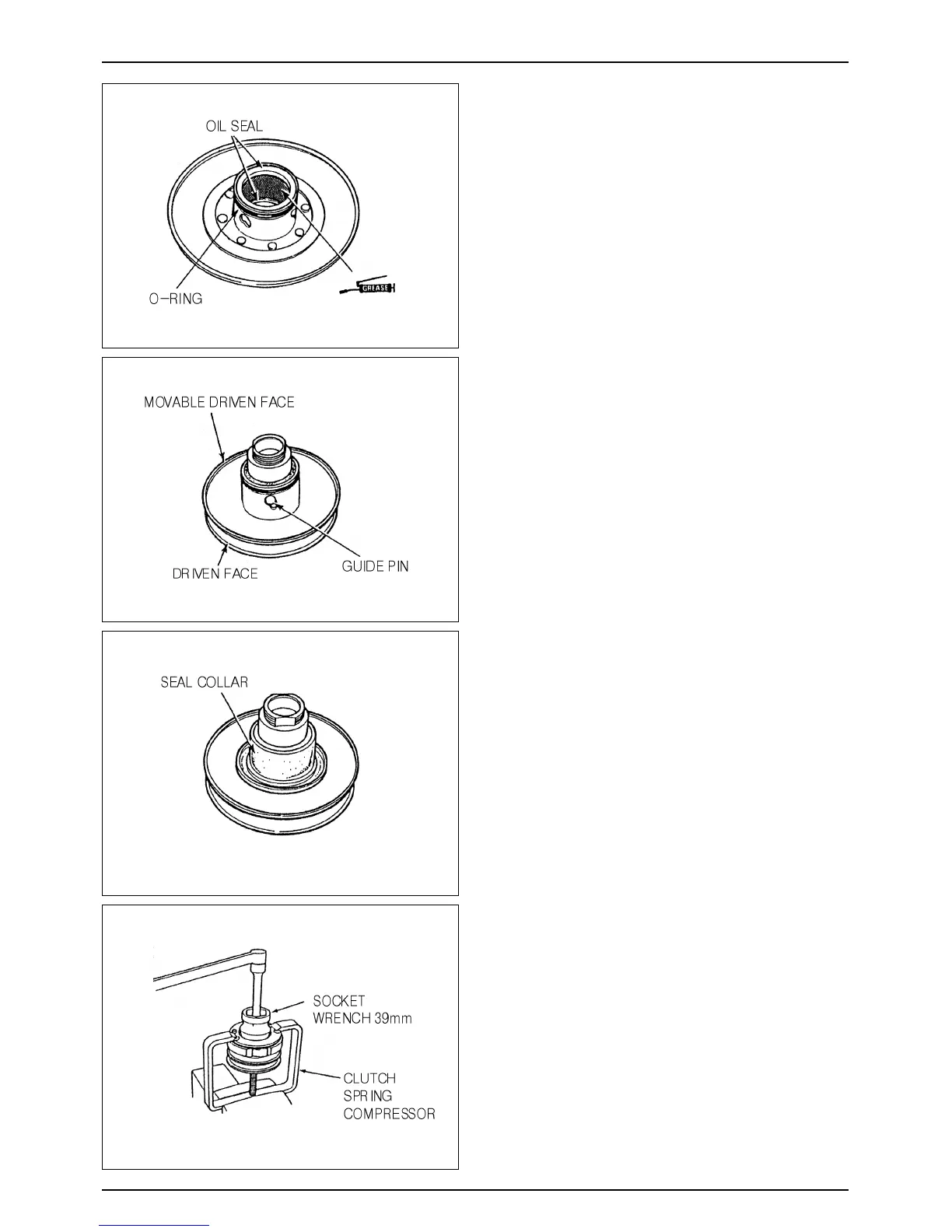

CLUTCH/DRIVEN PULLEY ASSEMBLY
● Install new oil seals and O-rings on the movable driven
pulley face.
●Lubricate the inside of the movable face with the
specified amount of grease.
GREASE APPLICATION : 5.0~5.5g
● Install the movable face on the driven pulley face.
● Install the guide pins, or guide pins and guide pin
rollers.
● Install the seal collar.
● Assemble the driven pulley, spring and clutch in the
clutch spring compressor. Compress the assembly by
turning the tool handle until the lock nut can be
installed.
● Clamp the clutch spring compressor in a vise and
tighten the lock nut to the specified torque using the
lock nut wrench.
TORQUE VALUE : 4.0kgf
·
m
● Remove the spring compressor.
● Install the clutch/driven pulley and drive belt onto the
dirve shaft.
TOOL : CLUTCH SPRING COMPRESSOR
SOKET WRENCH 39mm
7-13
