SERVICE INFORMATION
•Insert the lock of the coupler until the lock is fully
secured.
•Turn off the main switch before connecting/dis-
connecting.
•Release the lock to disconnect the lock of the coupler.
•The lock of the coupler has two types according to
releasing method(press type and pull type) so release it
properly according to the shape.

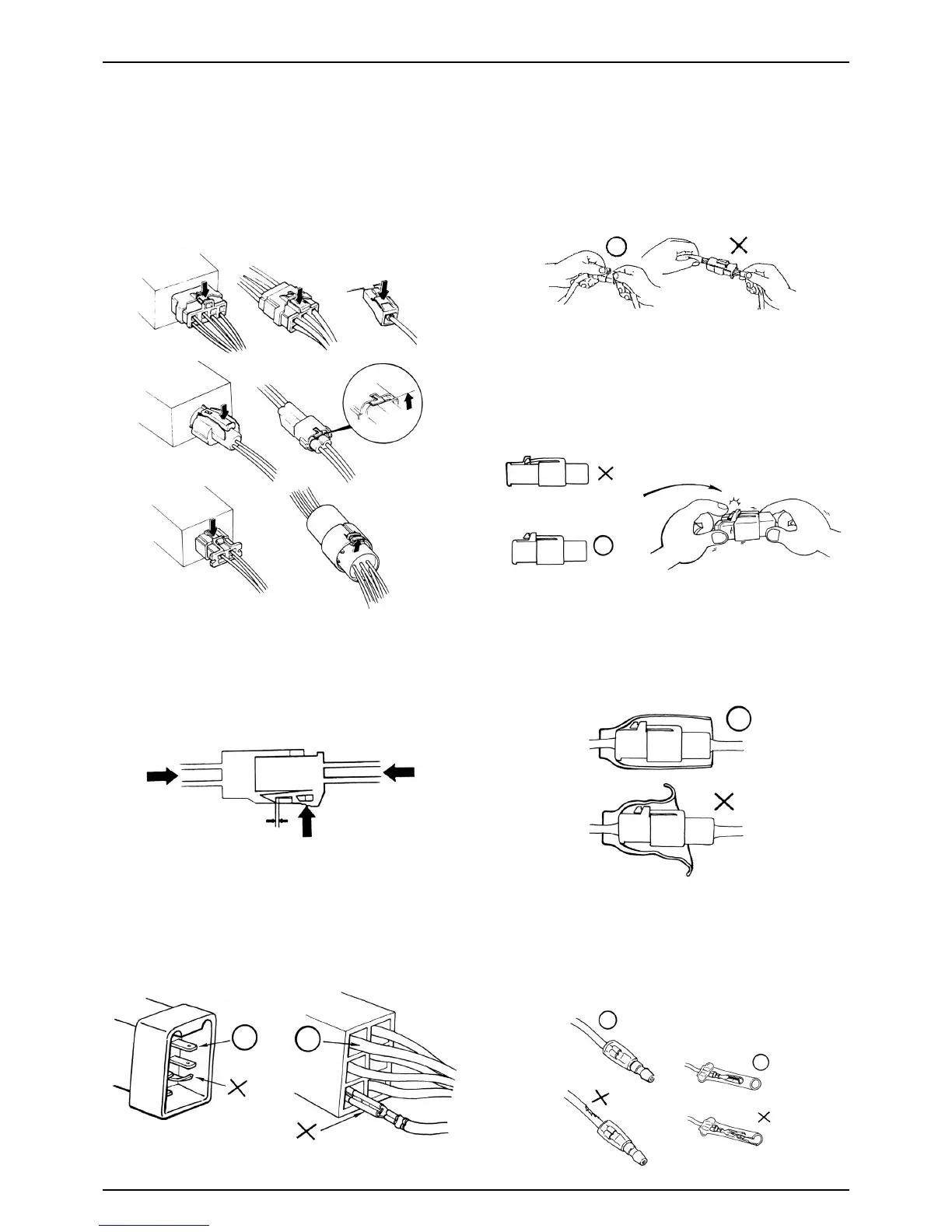

- Typical releasing method of the coupler is illustrated in
the following.
•When disconnecting the coupler, disconnect it while
holding the coupler body. Pull while holding the wire
harness cord and do not remove the coupler connection.
•Release the lock by inserting the coupler slightly and
then narrowing connection to remove the coupler.
•Pay attention not to damage the vinyl cover of the
coupler.
•Check to see if there is bended terminal and secure it to
avoid disconnecting.
•If the wire harness coating is damaged, repair by
winding vinyl tape or replace it.
•Prior to connecting the connector, make sure that the
cover is not damaged and the mess terminal is not
opened.
