SERVICE INFORMATION

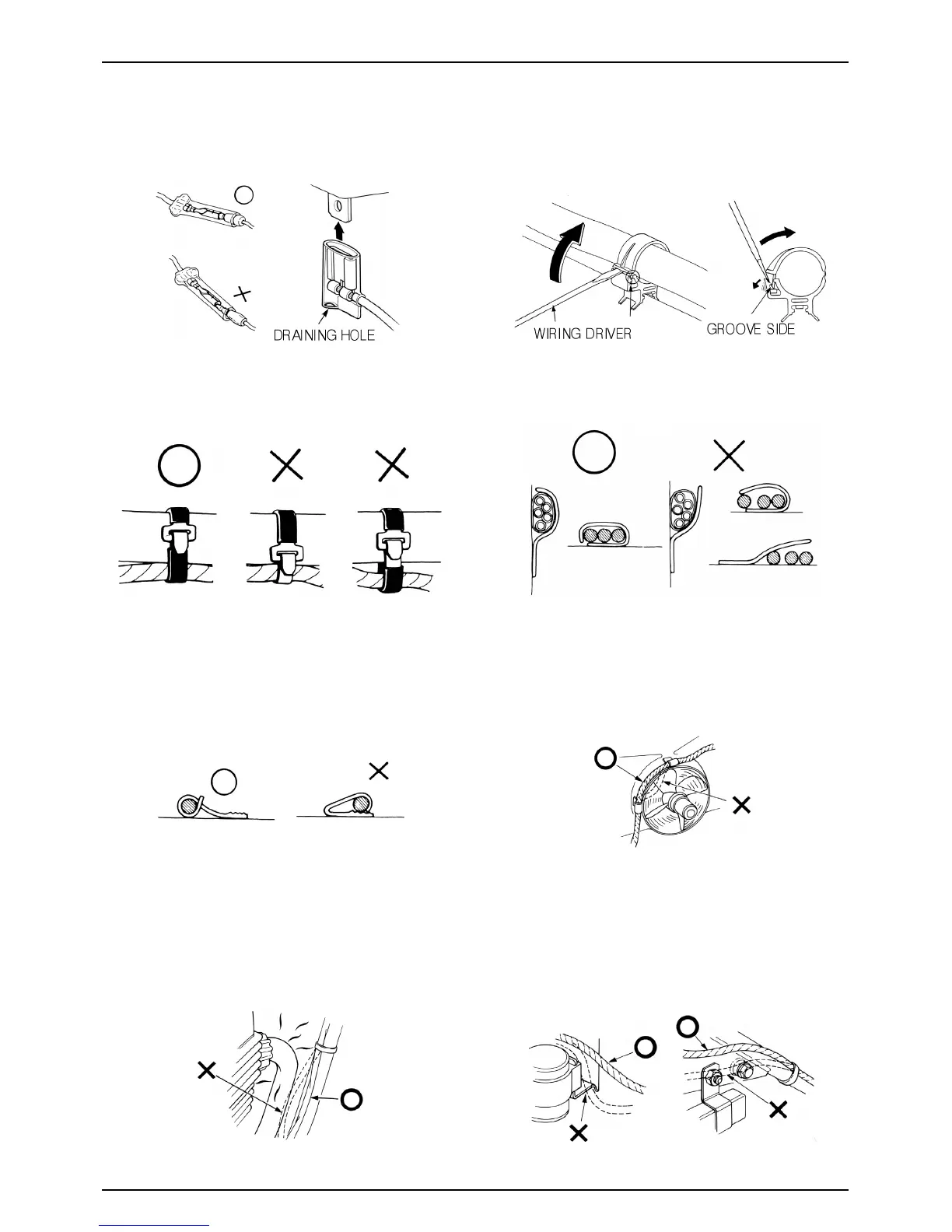

•Wire band must be secured firmly in the specified
location of the frame. In case of aluminium band,
secure the wire harness to the coated part.
•Secure the wire harness firmly using the clamp.
•Insert the connector until the vinyl cover is fully
inserted into the terminal.
•The opening of the vinyl cover must face at the ground
direction but in case of the plain connector, the draining
opening must face at the sky direction.
•When removing T-start, broaden the groove of T-start
using the wiring driver and release the torque.
•Connect the harness and the hose to T-start and then
insert until the groove is locked.
•When removing T-start from the frame, replace it with
the new one.
•In case of the weld clamp, do not clamp in the welded
part.
•When clamping the wire harness, make sure that the
harness is not contacted with the shaft or rotating part.
•When clamping the wire, pay attention not to contact
with hot part.
•The wire harness must be routed without contacting
with the end of the lamp or any sharp edge.
•The wire harness must be routed without contacting
with the end of the bolt or the piece.
