CYLINDER HEAD/CYLINDER/PISTON
FAN COVER COVER
FAN COVER
RUBBER
FAN COVER COMP.
SHROUD

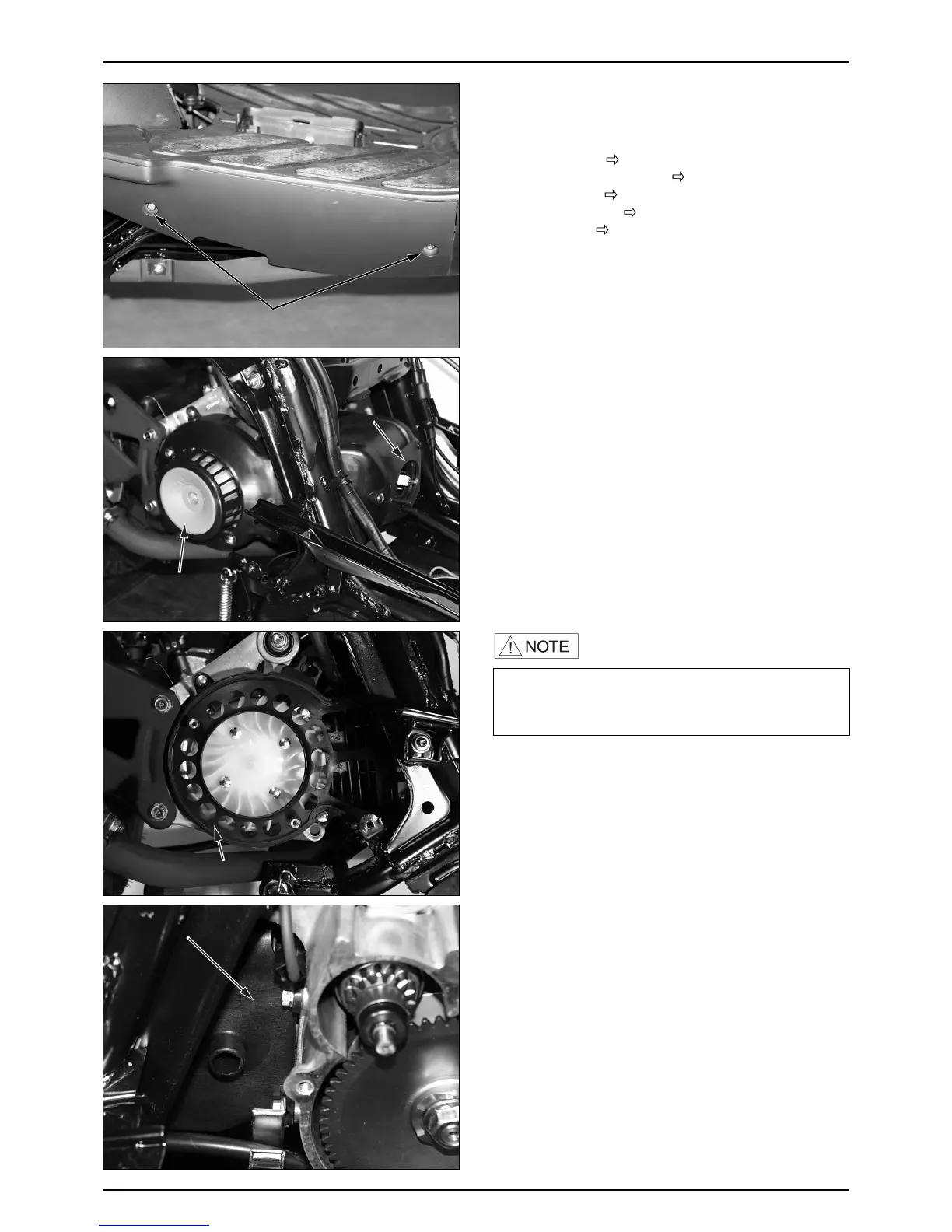

FAN COVER, SHROUD REMOVAL
REMOVE
● Luggage box. ( 3-3 )
● Plug maintenance cover. (
3-3 )
● Center cover. (
3-3 )
● Floor side cover. (
3-4 )
● Floor panel. (
3-4 )
● Plug cap.
● Loosen the 3 fan cover cover comp washer screws.
● Remove the fan cover element B.
● Remove the fan cover rubber.
● Loosen the 2 fan cover flange bolts.
● Remove the fan cover toward the floor panel.
● Loosen the 2 left shroud flange bolts.
● Remove the left shroud.
·Pay attention not to damage certain part when
removing
·Remove according to the working precedure.
● Install in the reverse order of removal.
