DAELIM a.four

8-3
CYLINDER HEAD/CYLINDER/PISTON
FLANGE BOLT
CYLINDER HEAD
CYLINDER
PISTON PIN
PISTON

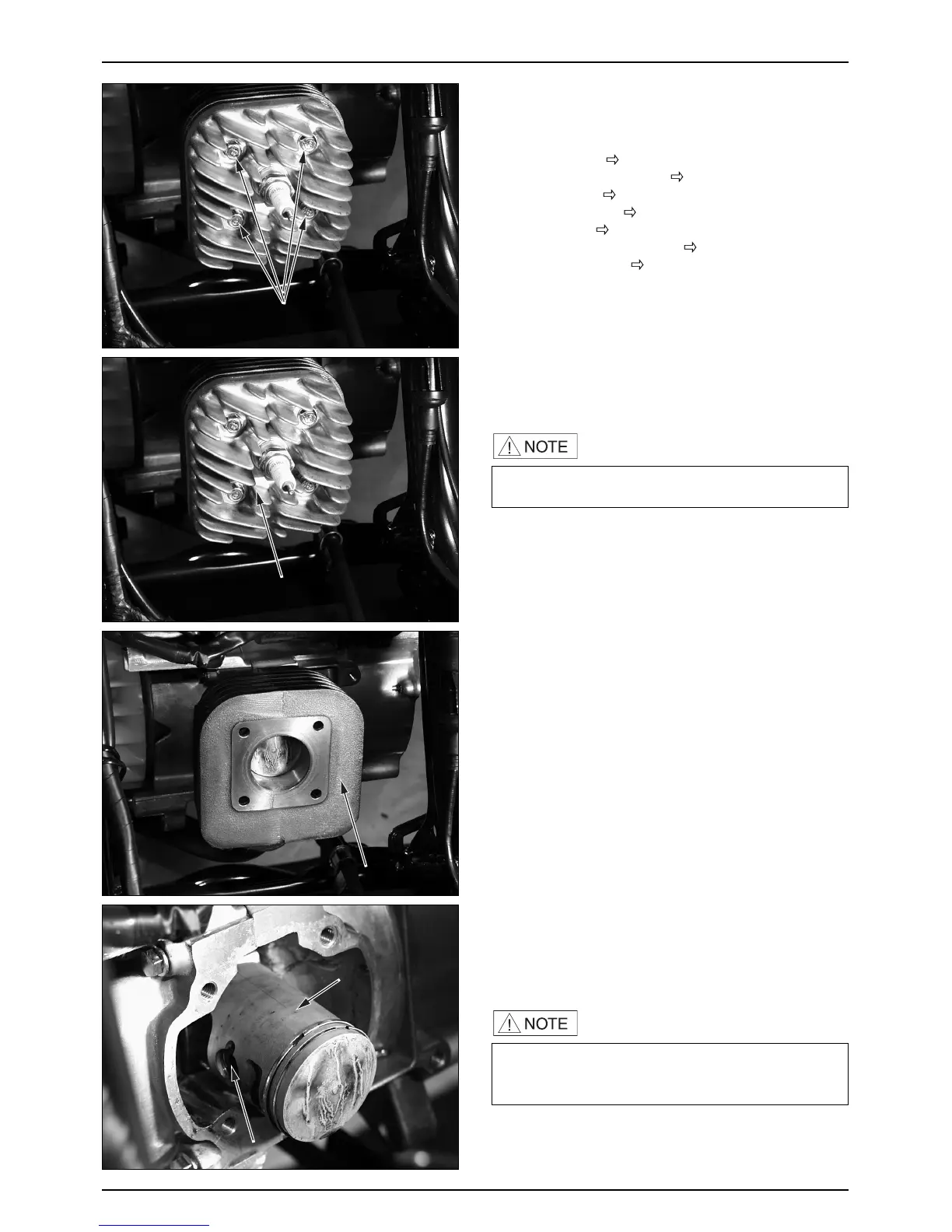

CYLINDER HEAD/ CYLINDER/ PISTON
REMOVAL
● Luggage box. ( 3-3 )
● Plug maintenance cover. (
3-3 )
● Center cover. (
3-3 )
● Floor side cover. (
3-4 )
● Floor panel. (
3-4 )
● Exhaust muffler assembly. (
3-7 )
● Fan cover shroud. (
3-2 )
Cylinder Head
● Loosen the 4 cylinder head bolts.
·Bolts are loosened by rotating 2~3 times and
alternating to a diagonal bolt.
● Remove
- Cylinder head.
- Cylinder head gasket.
Cylinder
● Remove the cylinder.
Piston/Piston Ring
● Remove
- Piston pin clip.
- Piston pin.
·Be careful not to bend pins.
·Be careful not to damage the cylinder and crankcase
gasket face when cleaning.
