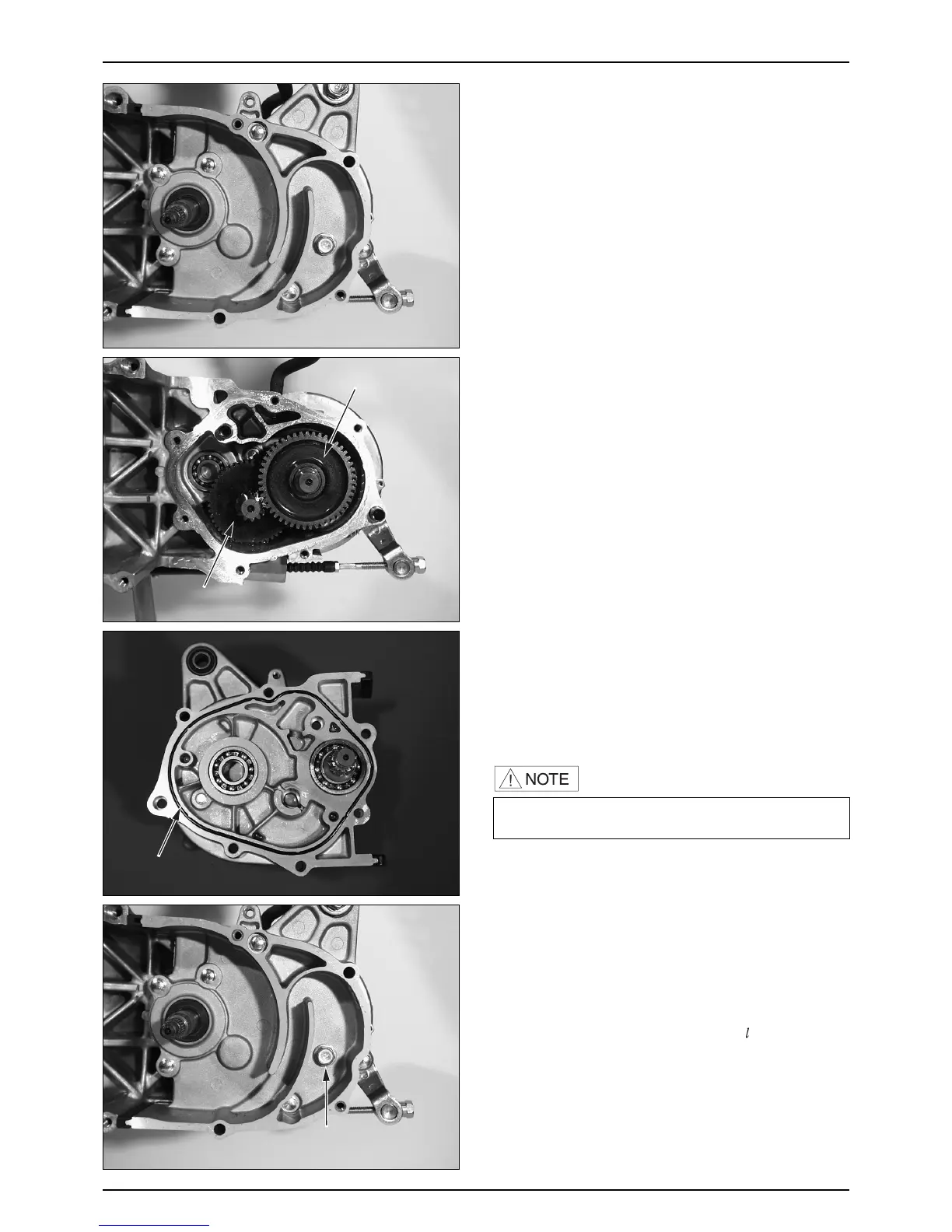

TRANSMISSION ASSEMBLY
● Install the drive shaft on the transmission cover.
● Install a new drive shaft oil seal.
TOOL : CRANK ASSEMBLY
● Install the thrust washer, final gear and counter gear,
side washer on the L. crankcase.
● Install
- New dowel pins.
- New transmission cover seal on the transmission
cover.
- Transmission cover.
● Tighten the transmission cover with the flange bolts.
·Tighten bolts diagonally and alternately and tighten
with specified torque in the end.
● Remove the oil check bolt, release the transmission oil
filler ACG cap or the L. crankcase until the oil
overflow through oil hole and fill the recommended oil
slowly.
● Install the oil check bolt and the cap .
RECOMMENDED OIL : SAE #80~90
TRANSMISSION OIL AMOUNT : 0.09
