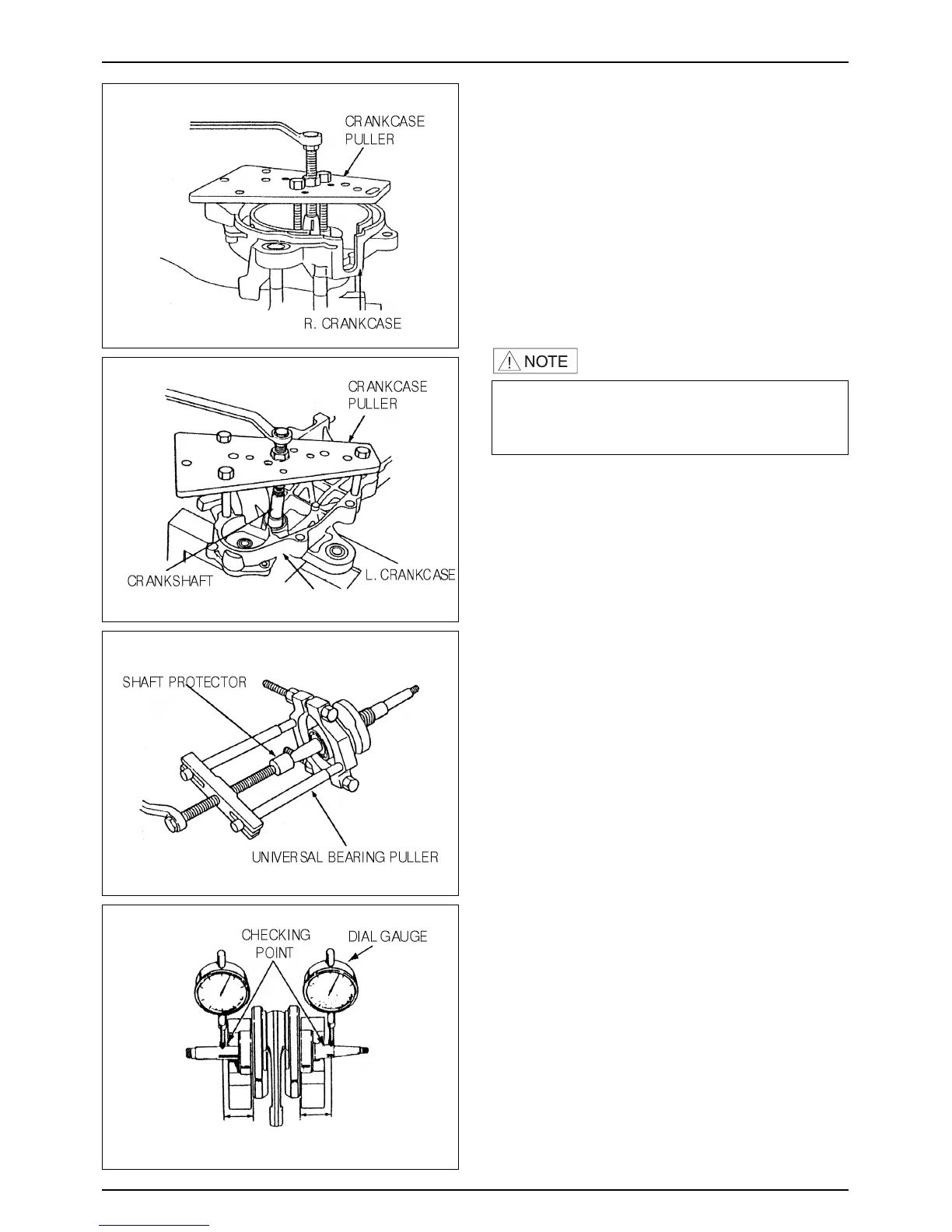

CRANKSHAFT REMOVAL
● Loosen the 6 R. crankcase flange bolts.
● Secure a crankcase puller on the R. crankcase and
remove the R. crankcase from the L. crankcase.
TOOL : CRANKCASE PULLER(0751-00003)
●
Secure a crankcase puller on the L. crankcase and remove
the crankshaft from the L. crankcase.
·Be careful not to distort the mating surface of the
crank case during disassembly.
·Do not force to disassemble by pounding on the
crankshaft.
TOOL : CRANKCASE PULLER(0751-00003)
● Remove the oil seal from the R. and L. crankcases.
● Remove the dowel pin.
CRANKSHAFT BEARING REMOVAL
● If the radial ball bearing is left on the crankshaft,
remove the bearings out of the crankshaft using a
bearing puller.
TOOL : UNIVERSAL BEARING PULLER(0755-00001)
CRANKSHAFT INSPECTION
● Place the crankshaft on a stand or V-block, and check
the journal vibration.
SERVICE LIMIT : RIGHT SIDE 0.1mm
LEFT SIDE 0.1mm
9-5
TRANSMISSION/CRANKSHAFT/CRANKCASE
