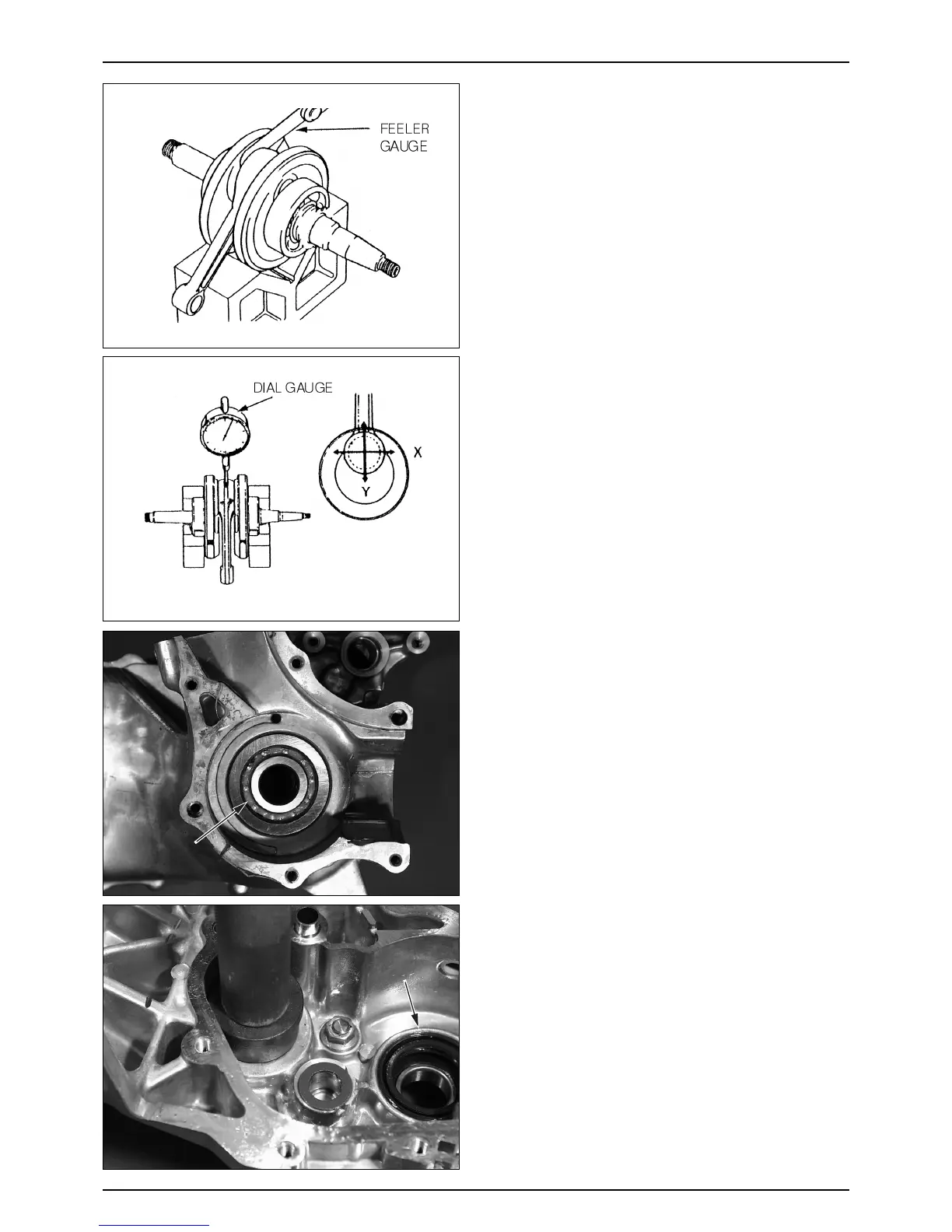

● Measure the side gap between the connecting rod big
end and the crank weight.
SERVICE LIMIT : 0.6mm
● Check the vertical shaft play of the connecting rod big
end from the X and Y direction.
SERVICE LIMIT : 0.05mm
CRANKCASE BEARING REMOVAL
● Remove the transmission and crankshaft.
INSPECTION
● Manually turn the bearing inner race to see if it rotates
smoothly.
● Check the outer race to see if it is accurately pressed
into the case.
● If the outer race is excessively loose, or is loosely
pressed into the case, remove in and replace with a new
one.
REPLACEMENT
L. Crankcase
● Use special tools to remove the drive shaft bearing.
TOOLS : BEARING REMOVER SET
REMOVER SHAFT
REMOVER HEAD
● Remove the final gear bearing and oil seal.
● Remove the counter gear bearing.
9-6
TRANSMISSION/CRANKSHAFT/CRANKCASE
