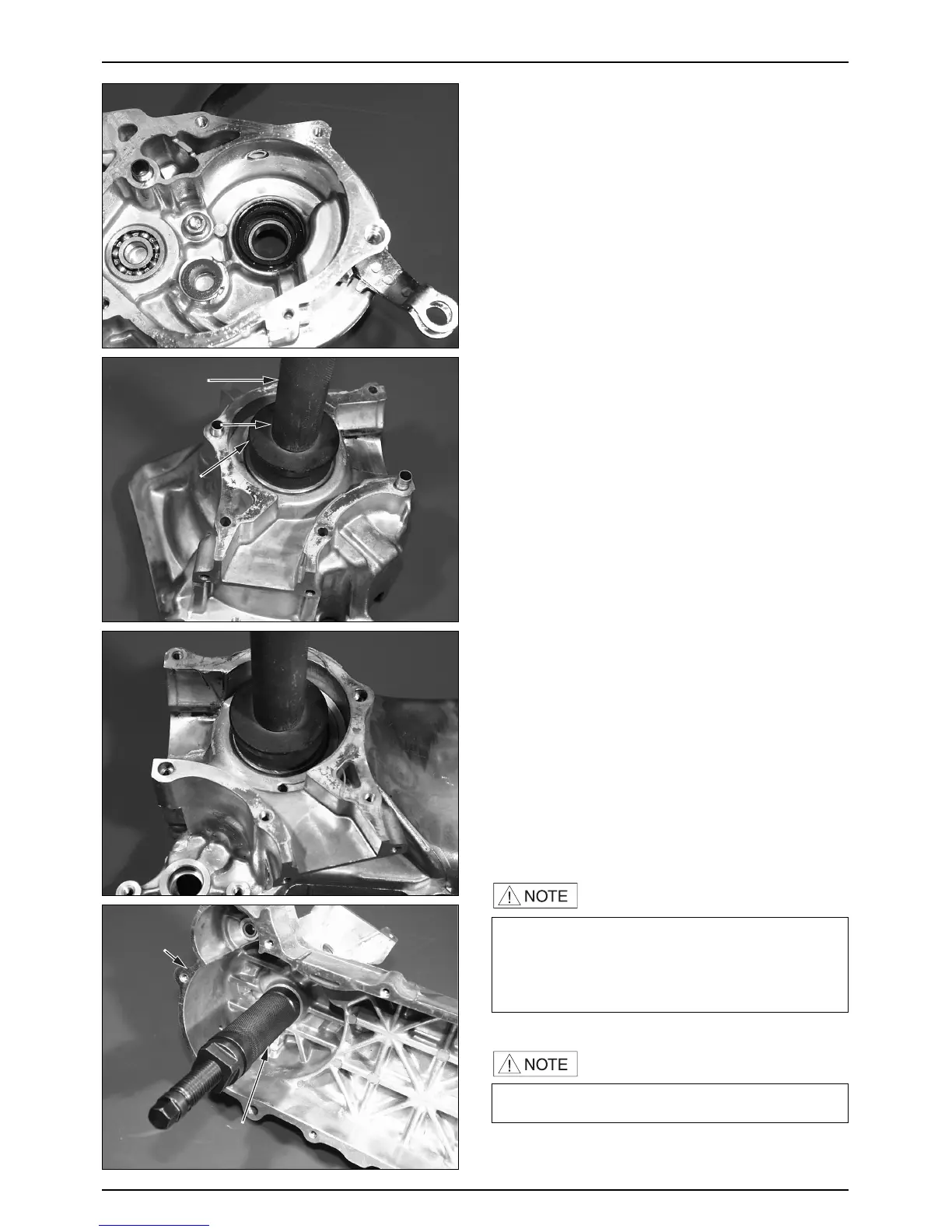

● Apply clean engine oil to a new bearing, and assemble
it to the crank case.
● Install a new final gear oil seal.
CRANKSHAFT INSTALLATION
● Apply clean engine oil to the new R. crankshaft
bearing, and press in the bearing into the R. crank case.
TOOLS : DRIVER HANDLE A
OUTER DRIVER 52x55mm
DRIVER PILOT 20mm
● Use special tools to assemble the crankshaft bearing to
the L. crank case.
TOOLS : DRIVER HANDLE A
OUTER DRIVER 52x55mm
DRIVER PILOT 20mm
● Clean the crankcase using cleaning oil, and check for
rack and damage to each area.
·After removing the liquid gasket from the joining
face of the crankcase, amend the scratched areas
using oil ston.
·Apply 2-cycle oil to the radial ball bearings and the
connecting rod large end portion.
● Install the crankshaft to the L. crankcase.
·Install not to interfere with the case with being
careful of connecting rod location.
TOOL : CRANKSHAFT ASSEMBLER
9-7
TRANSMISSION/CRANKSHAFT/CRANKCASE
