“T” mark
Cylinder Head/Valve

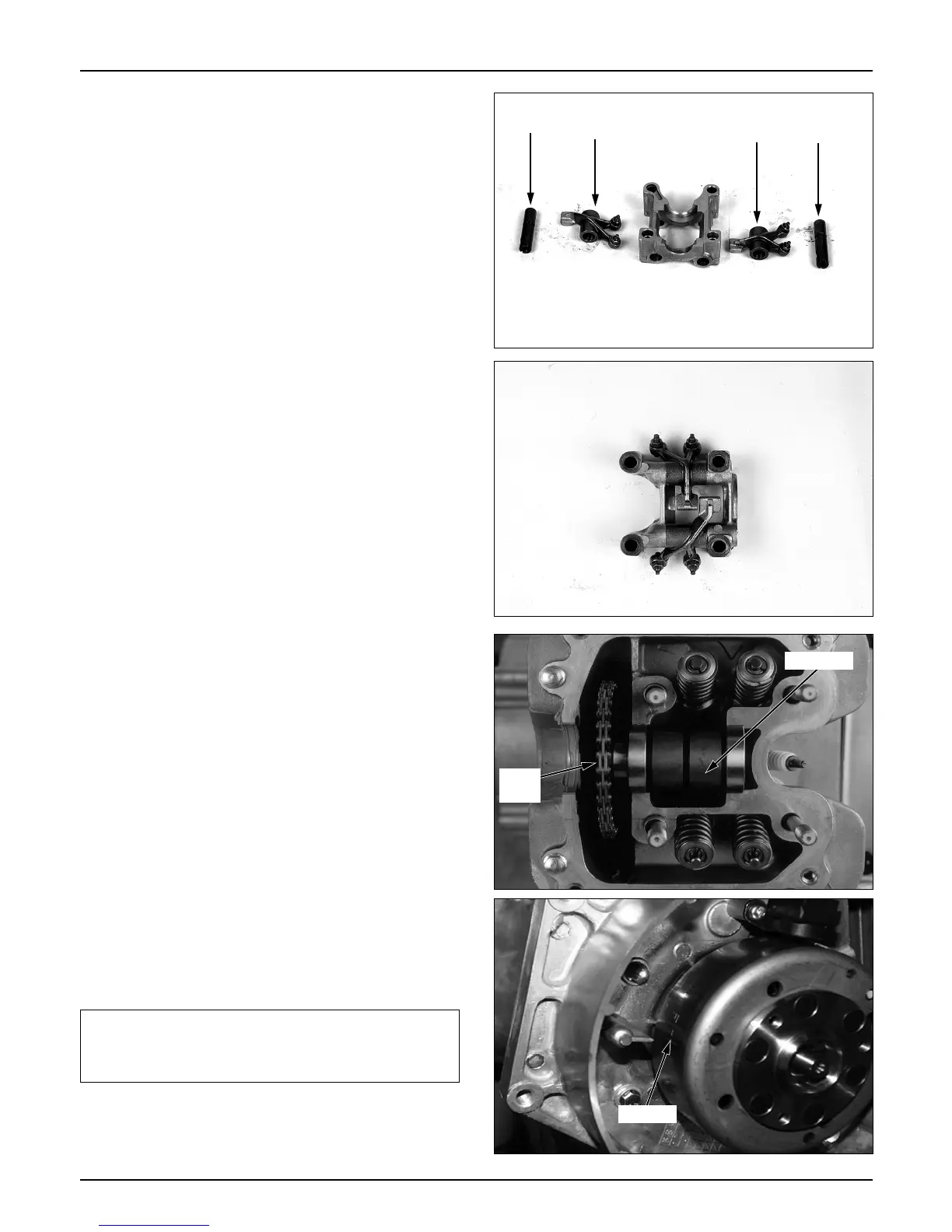

Cam Shaft Assembly
● Apply engine oil to the rocker arm shaft, and
assemble the rocker arm to the camshaft holder.
● Tighten the rocker arm shaft with 6mm bolts, and
align the bolt hole of the camshaft holder with
the fitting side of the rocker arm shaft.
● check the camshaft assembly for abnormal
condition, and place it on the cylinder head.
● Put the cam chain on the cam sprocket.
● Slowly turn the crankshaft to the left, and align
the “T” mark of the flywheel with the index mark
of the R. crank case cover.
NOTE
9-13
Take precautions not to allow the cam chain to
come off the camshaft timing gear while turning
the camshaft
Shaft
Shaft
Rocker
arm
Rocker
arm
Camshaft
Cam
chain
