Light/Switch/Horn

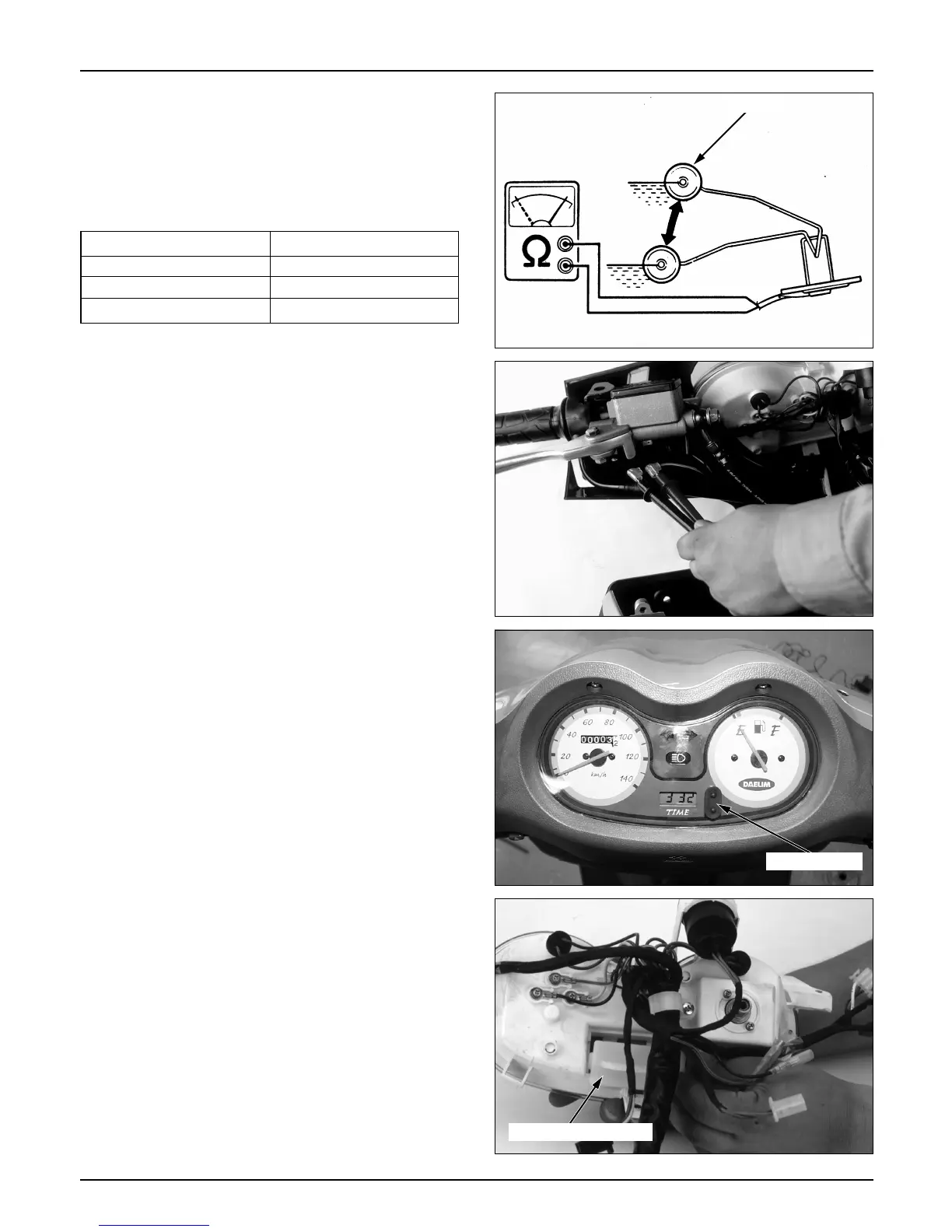

Fuel Sensor
● Remove the fuel sensor terminal, and connect the
resistance tester to each terminal. Check the
resistance while moving the float up and down.
Horn
Inspection
● Remove the front cover. ( 4-3)
● Remove the headlight.
● Remove the horn wiring, and connect a fully
charged 12V battery. Check the sound quality for
any abnormalities.
Clock
● The current time is displayed at the bottom of the
combination-meter.
● If the time is incorrect, make adjustments with
the setting rubber.
Replacement
- Remove the front handle cover. ( 4-8)
- Open the battery (for clock) cover inside the meter-
case, and replace the battery.
18-6
Float position Resistance ratio
Fuel amount sufficient 0.02-0.1
Reserve 2.5-4.5
No fuel 13-25.5
Resistance Ratio Calculation
Setting rubber
Cover for clock fitting
Float
To Next Page
