Light/Switch/Horn
Meters (Measuring Instruments)

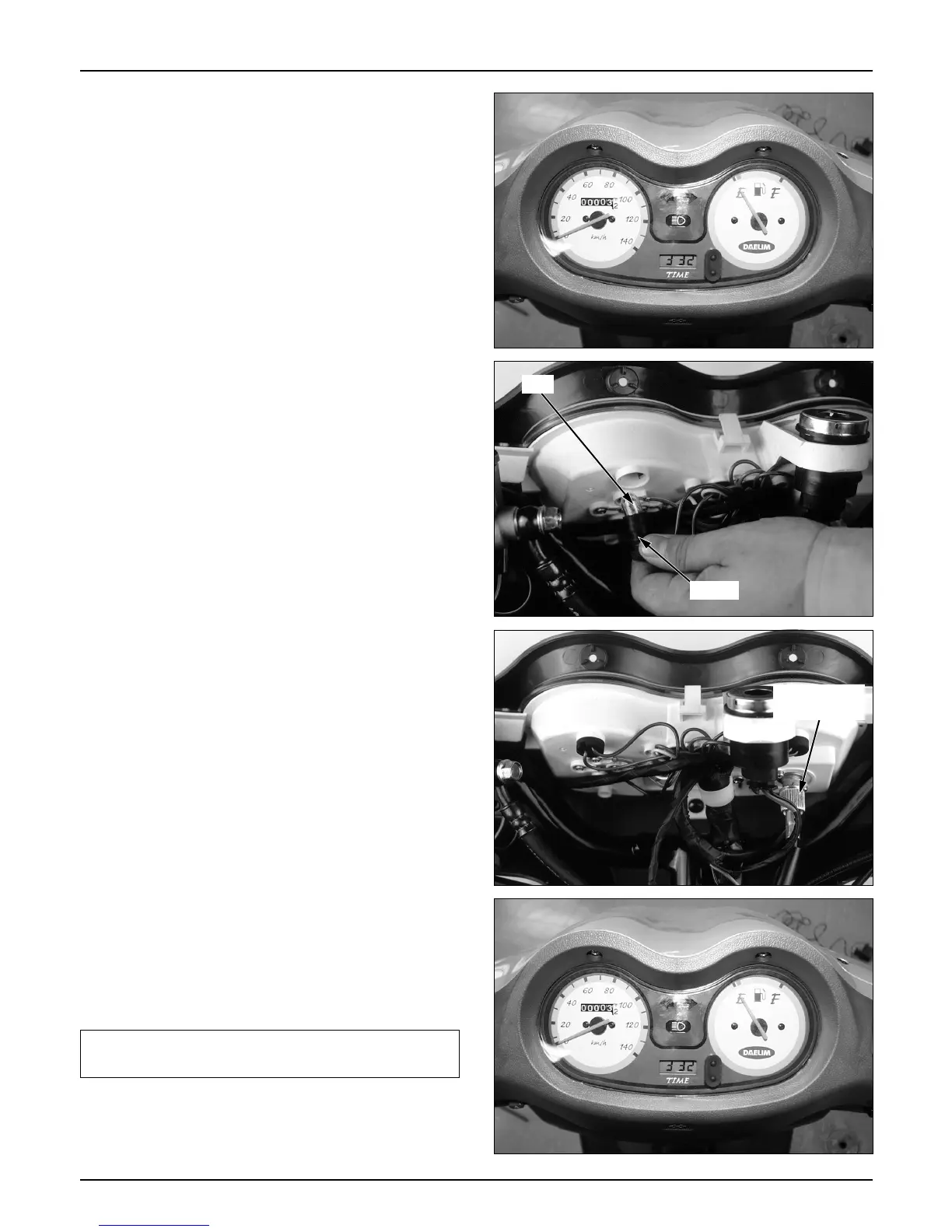

Bulb Replacement
● Remove the front handle cover.( 4-8)
● Disconnect the winker and headlight wiring.
● Remove the bulb socket, and replace bulbs.
Meter Replacement
● Loosen the speedometer setting screws, and
remove the front wheel side speedometer.
● Remove the speedometer cable from the meter,
and remove the speedometer.
● To disassemble the meter, release the hook from
the meter upper case, and loosen the
speedometer and fuel meter assembly screws.
● Install in the reverse order of removal.
NOTE
18-3
The fuel meter and wire must be connected
accurately.
Bulb
Socket
Speedometer
cable
To Next Page
